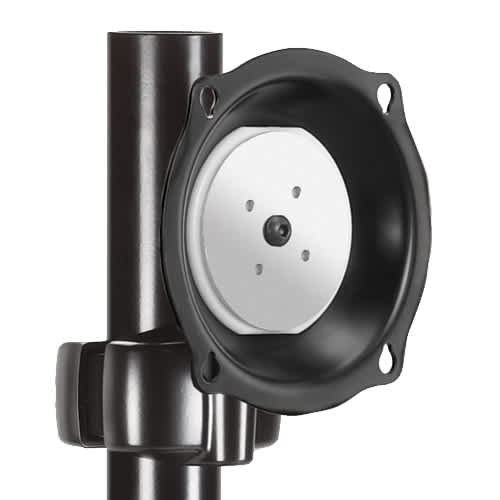

Medium Pivot/Tilt Pole Mount - JPPUB
Pole mount for 26" - 45" displays, 75 lbs capacity, with 15° swivel and fingertip tilt
The Chief JPPUB is a medium-sized pivot/tilt pole mount solution designed for mounting flat panel displays on a pole. This universal mounting system supports displays ranging from 26" to 45" (660mm - 1143mm) and accommodates a VESA pattern from 100 x 100mm up to 400 x 400mm. It is engineered to attach to poles with a diameter between 1.5" and 2" (38mm - 51mm). Using Centris Technology, installers can achieve smooth, fingertip tilt in any direction and a swivel range of up to 15° in any direction. The mount allows for both landscape and portrait orientation to meet specific room requirements. For height management, the system provides fast height adjustment to ensure ergonomic alignment once the pole is in place. To assist with final positioning, this model includes a post-installation leveling roll. For displays that do not have standard VESA patterns, the MSB interface bracket can be purchased separately to enable compatibility.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Pole Diameter Range | 1.5" - 2" (38mm - 51mm) |
| Shipping Dimensions | 19.5" x 10.5" x 3.5"(495.3 x 266.7 x 88.9 mm) |
| Shipping Weight | 8.45 lbs |
| Typical Screen Size | 26" - 45" (660mm - 1143mm) |
| Weight Capacity | 75 lbs (34 kg) |
| Adjustability | SwivelTilt |
| Application | Pole |
| Color | Black |
All other specifications 7
| Number of Displays | 1 |
| Orientation | LandscapePortrait |
| Post-Installation Leveling Roll | Yes |
| Solution Type | Universal |
| TAA Compliant | No |
| UPC | 841872114422 |
| VESA Mounting Pattern | 100 x 100mm - 400 x 400mm |
Resources
Verified fitment
Questions about this part
Will the Chief JPPUB fit my specific display model?
The JPPUB is verified against 2,405 display models from 139 manufacturers, including the Samsung 43QN9*C, Sony 43PZ30P, and LG 32LK510BPLD.
What if my display does not have a VESA pattern?
While the JPPUB supports VESA patterns from 100 x 100mm up to 400 x 400mm, you can purchase an MSB interface bracket separately to accommodate non-VESA compatible screens.
How much can I tilt and swivel the display?
This mount provides smooth, fingertip tilt in all directions and allows for a swivel range of up to 15° in any direction.
Can I change the orientation of the display?
Yes, the JPPUB is designed to support both landscape and portrait mounting orientations.
What tools are needed for installation?
Please refer to the JPPSeries Installation Manual for a complete list of tools required for mounting this system to a pole.
