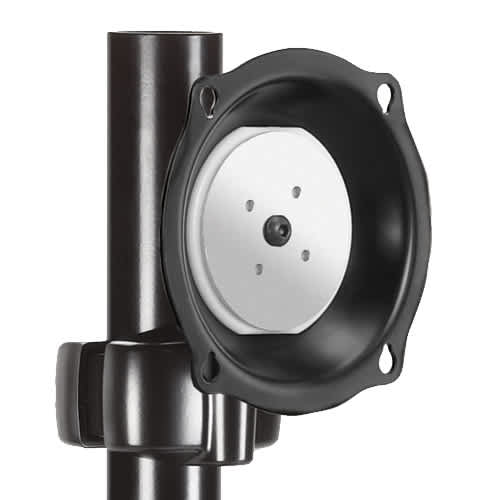

Medium Pivot/Tilt Pole Mount - JPP210B
Medium pivot/tilt pole mount for 26" - 45" displays, 75 lbs capacity, with swivel and tilt adjustability
The Chief JPP210B is a medium-format pivot/tilt pole mount designed for mounting a single flat panel display on a pole. This solution is engineered for displays with a screen size ranging from 26" to 45" (660mm - 1143mm) and supports a maximum weight capacity of 75 lbs (34 kg). It is compatible with various VESA mounting patterns, specifically 100 x 100mm, 200 x 100mm, and 200 x 200mm. For installers requiring non-VESA compatibility, an MSB interface bracket can be purchased separately to facilitate mounting. The JPP210B offers significant ergonomic flexibility, allowing for both landscape and portrait orientations. Integrated Centris Technology enables smooth, fingertip tilt in all directions and up to 15° of swivel in any direction. Users can achieve rapid height adjustment for precise ergonomic alignment and utilize the post-installation leveling roll for fine-tuning the display position. This TAA compliant mount attaches to poles with a diameter range of 1.5" - 2" (38mm - 51mm).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Pole Diameter Range | 1.5" - 2" (38mm - 51mm) |
| Shipping Dimensions | 19.5" x 10.5" x 3.5"(495.3 x 266.7 x 88.9 mm) |
| Shipping Weight | 5.86 lbs (2.7 kg) |
| Typical Screen Size | 26" - 45" (660mm - 1143mm) |
| Weight Capacity | 75 lbs (34 kg) |
| Adjustability | SwivelTilt |
| Application | Pole |
| Color | Black |
All other specifications 8
| Number of Displays | 1 |
| Orientation | LandscapePortrait |
| Post-Installation Leveling Roll | Yes |
| Solution Type | Universal |
| TAA Compliant | Yes |
| UPC | 841872108360 |
| VESA Mounting Pattern | 100 x 100mm, 200 x 100mm, 200 x 200mm |
| Certifications | TAA |
Resources
Verified fitment
Questions about this part
Will the JPP210B fit my display?
The mount is verified against 8,566 display models from 250 manufacturers, including the Samsung 244TB, Sony 43PZ30P, LG 26LC2, and Panasonic BTLH2550.
What if my screen does not have a VESA pattern?
While this SKU supports VESA patterns of 100x100mm, 200x100mm, and 200x200mm, you can purchase an MSB interface bracket separately for non-VESA compatible screens.
How much weight can this pole mount hold?
The JPP210B has a maximum weight capacity of 75 lbs (34 kg) for a single display.
Can I mount my display in portrait orientation?
Yes, this mount is designed to support both landscape and portrait mounting orientations.
Which documents are available for submittals?
You can access the JPP210 Technical Drawing, the JPSeries Installation Manual, and CAD drawings (dwg) in the Resources tab.
