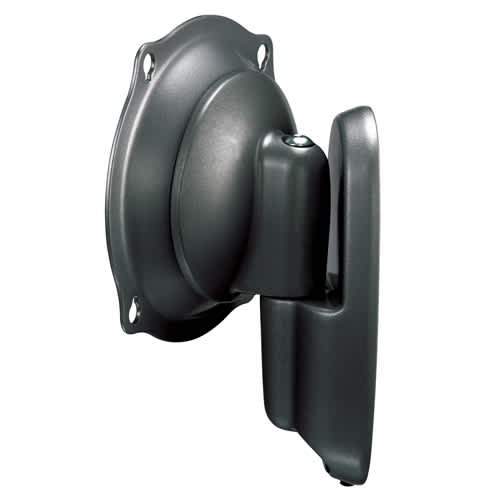

Medium Pitch/Pivot Wall Display Mount-JWPUB
Universal wall mount for VESA 100x100mm to 400x400mm patterns, 75 lbs capacity, with tilt and swivel adjustment
The Chief JWPUB is a universal medium pitch wall mount designed to secure a single flat panel display or monitor to a wall. It supports a wide range of VESA mounting patterns from 100 x 100mm up to 400 x 400mm, making it a versatile choice for various display sizes. This mount is compatible with both portrait and landscape screen orientations. For installers seeking precise positioning, the mount features post-installation leveling rolls and Centris Fingertip Tilt, which allows for smooth tilt adjustment in all directions. Users can also benefit from independently adjustable tension at pivot points for customized control. This mount is designed with a sleek aesthetic to hide all hardware and includes built-in, quick, easy cable management to maintain a clean installation. It arrives shipped fully assembled for efficient deployment on site.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 3.4 in (8.6 cm) |
| Height | 8.3 in (21.1 cm) |
| Minimum Depth | 3.35 in (8.5 cm) |
| Overall Dimensions | 8.3" x 6.0" x 3.4" (211 x 152 x 85mm) |
| Shipping Weight | 10.25 lbs (4.7 kg) |
| Wall Stud Compatibility | Single Stud |
| Weight Capacity | 75 lbs (34 kg) |
| Width | 6 in (15.2 cm) |
All other specifications 11
| Adjustability | SwivelTilt |
| Application | Wall |
| Color | Black |
| Number of Displays | 1 |
| Orientation | Landscape |
| Post-Installation Leveling Roll | Yes |
| Solution Type | Universal |
| TAA Compliant | No |
| Tilt | +15° / -15° |
| UPC | 841872114347 |
| VESA Mounting Pattern | 100 x 100mm - 400 x 400mm |
Resources
You'll need these with it
J-Series Medium Interface Brackets-JSB210B
JSB210B$61.60
J-Series Arm Extension Kit - MAC1003B
MAC1003B$74.40
J-Series Arm Extension Kit - MAC1003S
MAC1003S$74.40
J-Series Universal Interface Bracket - JSBUB
JSBUB$61.60
Custom Interface Bracket for Cisco EX90
JSB2090B$312.80
J-Series VESA Interface Bracket - JSBVB
JSBVB$61.60
J-Series Universal Interface Bracket - JSBUS
JSBUSDiscontinued
J-Series VESA Interface Bracket - JSBVS
JSBVSDiscontinued
J-Series Medium Interface Brackets-JSB210S
JSB210SDiscontinued
Verified fitment
Questions about this part
Will the Chief JWPUB fit my display?
The JWPUB is verified against 8,457 display models from 257 manufacturers, including Samsung 244T, Sony 43BZ35P, LG 26LC2, and Panasonic BTLH2600W, provided they use a VESA pattern between 100 x 100mm and 400 x 400mm.
Does this mount require additional interface brackets?
For non-VESA compatible screens, an MSB interface bracket must be purchased separately. Note that depth and extension measurements do not include the interface bracket, which adds 0.5 - 1.5" to the total profile.
How much weight can the JWPUB support?
The mount has a total weight capacity of 75 lbs (34 kg) for a single display.
What is needed to extend the reach of the mount?
To increase extension, you can add a J-Series Arm Extension Kit, such as the MAC1003B or MAC1003S, to the installation.
What is the required wall mounting configuration?
This mount is designed for wall applications and is compatible with single stud mounting.
