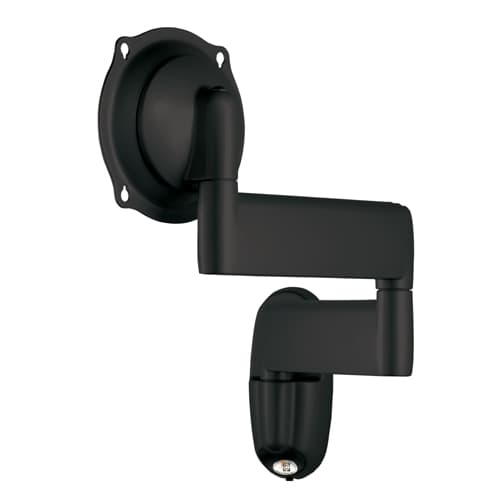

Medium Low-Profile In-Wall Swing Arm Mount - 21 Inch - JWDIW210B
Medium low-profile in-wall swing arm mount for 26"-45" displays with 21" extension and tilt adjustment
The Chief JWDIW210B is a medium low-profile in-wall swing arm mount designed to provide a concealed, flush-to-wall appearance. This solution is engineered to be used with the MAC501B In-Wall Accessory, which should be installed between 16" on center studs. When integrated into a MAC501B, this mount allows the back of the TV to sit extremely close to the wall, with a minimum depth of 0.1" for VESA 100 x 100mm screens and 0.65" for displays with up to 400 x 400mm patterns. This TAA-compliant mount offers significant movement to ensure the ideal viewing angle after installation. It provides a smooth extension of up to 21" (538 mm) and features Centris Technology for precise tilt adjustments of +15° and -15°. The mount supports a weight capacity of 75 lbs (34 kg) and is compatible with VESA patterns of 100 x 100mm, 200 x 100mm, and 200 x 200mm. It is shipped fully assembled for rapid deployment on the job site.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Minimum Depth | 0.1 in (0.3 cm) |
| Shipping Dimensions | 25.75" x 17" x 3.5"(654.1 x 431.8 x 88.9 mm) |
| Shipping Weight | 13.49 lbs (6.1 kg) |
| Typical Screen Size | 26" - 45" (660mm - 1143mm) |
| Weight Capacity | 75 lbs (34 kg) |
| Adjustability | ExtensionSwivelTilt |
| Application | In-Wall |
| Color | Black |
All other specifications 8
| Orientation | LandscapePortrait |
| Post-Installation Leveling Roll | Yes |
| Solution Type | Universal |
| TAA Compliant | Yes |
| Tilt | +15° and - 15° |
| UPC | 841872110561 |
| VESA Mounting Pattern | 100 x 100mm, 200 x 100mm, 200 x 200mm |
| Certifications | TAA |
Resources
You'll need these with it
Proximity™ Component Storage Panel, Interface
CSMP9X12$52.00

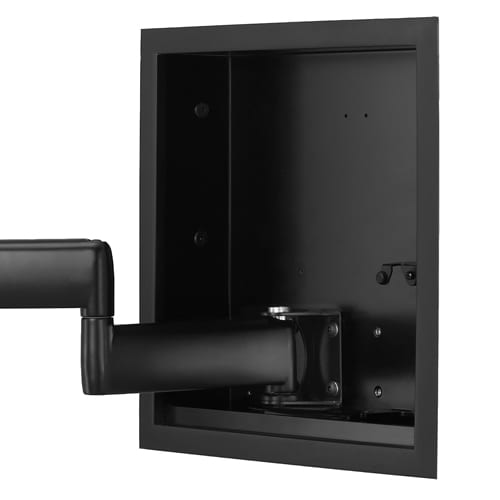

J-Series In-Wall Swing Arm Accessory - MAC501B
MAC501B$220.80

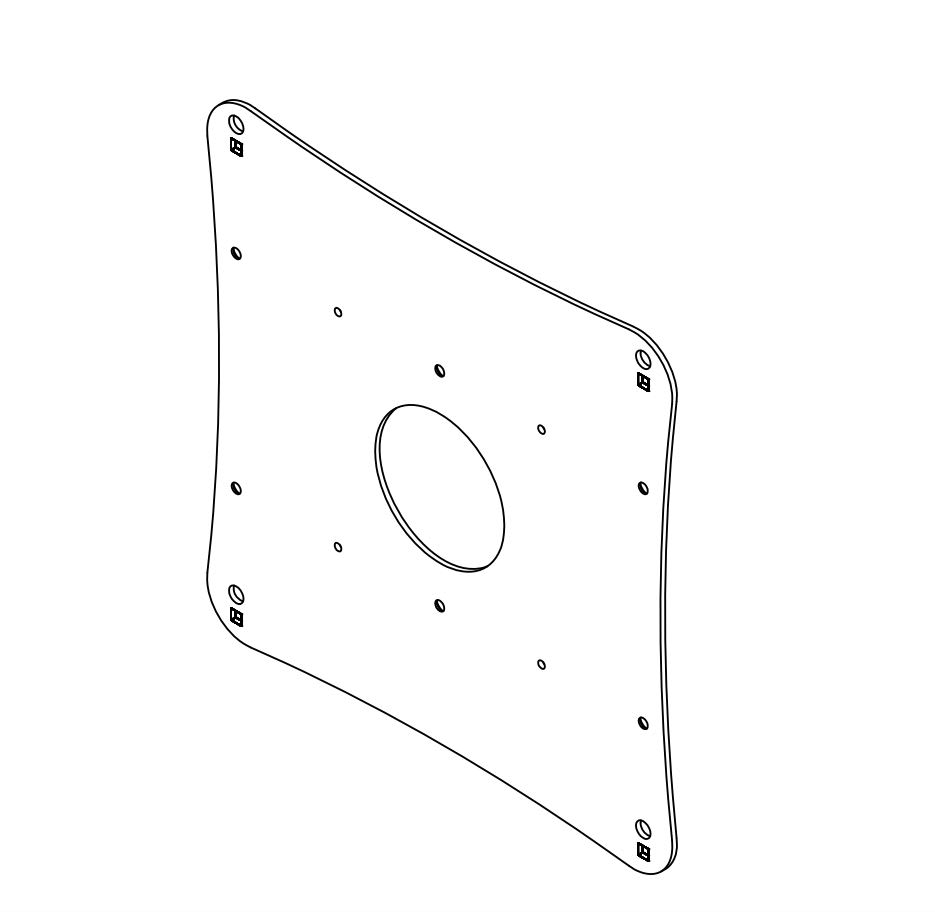

J-Series Medium Interface Brackets-JSB210B
JSB210B$61.60
J-Series Universal Interface Bracket - JSBUB
JSBUB$61.60
Custom Interface Bracket for Cisco EX90
JSB2090B$312.80
J-Series VESA Interface Bracket - JSBVB
JSBVB$61.60
J-Series Universal Interface Bracket - JSBUS
JSBUSDiscontinued
J-Series VESA Interface Bracket - JSBVS
JSBVSDiscontinued
J-Series Medium Interface Brackets-JSB210S
JSB210SDiscontinued
Verified fitment
Questions about this part
Is the JWDIW210B compatible with my display?
This mount is verified against 8,512 display models from 245 manufacturers, including Samsung 243T, Sony 43BZ35P, LG 24LQ520SWU, Philips 22PFL4008T, and Panasonic BTLH2550.
What else do I need to purchase to complete the installation?
The JWDIW210B requires the purchase of the MAC501B In-Wall Accessory to function as an in-wall mount.
How much clearance is needed behind the TV?
The mount sits 0.1" from the wall for VESA 100 x 100mm screens and 0.65" for screens with VESA patterns up to 400 x 400mm.
Does this mount support tilt and swivel?
Yes, it features Centris Technology for tilt adjustments of +15° and -15° and offers extension and swivel capabilities for precise positioning.
Which VESA patterns are supported by the JWDIW210B?
It is compatible with VESA mounting patterns of 100 x 100mm, 200 x 100mm, and 200 x 200mm.
