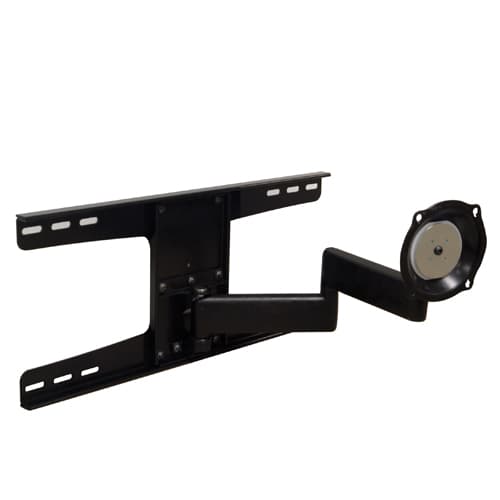

Medium Flat Panel Swing Arm Wall Mount (Metal Studs) - 20 Inch - JWDSK210B
Medium swing arm mount for metal studs with 20" extension, tilt, and swivel adjustability
The Chief JWDSK210B is a medium swing arm wall mount specifically designed for installation on steel studs spaced 16", 20", or 24" on-center. This universal solution provides significant flexibility for professional installations, allowing for a smooth 20" (517 mm) extension to achieve the perfect viewing angle. Integrated Centris™ Technology enables smooth, fingertip tilt in any direction within a range of +15° to -15°. When not in use, the arm folds in close to the wall to maintain a low-profile appearance. This TAA compliant mount supports VESA mounting patterns of 100 x 100mm, 200 x 100mm, and 200 x 200mm. For displays that do not follow standard VESA patterns, compatible interface brackets, such as the JSB210B or JSBUB, can be purchased separately. Please note that depth and extension measurements do not include the interface bracket, which may add 0" to 0.5" of depth.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 3.4 in (8.6 cm) |
| Height | 13 in (33 cm) |
| Overall Dimensions | 13.0" x 26.0" x 3.4" (331 x 660 x 87mm) |
| Shipping Weight | 24 lbs (10.9 kg) |
| Wall Stud Compatibility | Metal Studs, 16-24" (406mm - 610mm) |
| Weight Capacity | 75 lbs (34 kg) |
| Width | 26 in (66 cm) |
| Adjustability | ExtensionSwivelTilt |
All other specifications 13
| Application | Wall |
| Color | Black |
| Interface Included | No |
| Number of Displays | 1 |
| Orientation | Landscape |
| Post-Installation Leveling Roll | Yes |
| Solution Type | Universal |
| Special Features | Metal Stud |
| TAA Compliant | Yes |
| Tilt | +15° / -15° |
| UPC | 841872103914 |
| VESA Mounting Pattern | 100 x 100mm, 200 x 100mm, 200 x 200mm |
| Certifications | TAA |
Resources
You'll need these with it
Proximity™ Component Storage Panel, Interface
CSMP9X12$52.00
PAC525, In-Wall Storage Box
PAC525$79.20
J-Series Medium Interface Brackets-JSB210B
JSB210B$61.60
J-Series Universal Interface Bracket - JSBUB
JSBUB$61.60
Custom Interface Bracket for Cisco EX90
JSB2090B$312.80
J-Series Metal Stud Adapter - MAC118B
MAC118B$204.00
J-Series VESA Interface Bracket - JSBVB
JSBVB$61.60
J-Series Universal Interface Bracket - JSBUS
JSBUSDiscontinued
J-Series VESA Interface Bracket - JSBVS
JSBVSDiscontinued
J-Series Medium Interface Brackets-JSB210S
JSB210SDiscontinued
Verified fitment
Questions about this part
Will this mount fit my display?
It is verified against 8,614 display models from 249 manufacturers, including Samsung 243T, Sony 43BZ35P, and LG 26LC2. It supports VESA patterns 100x100mm, 200x100mm, and 200x200mm.
What do I need to buy if my screen is non-VESA compliant?
If your display is not VESA compliant, you will need to purchase an interface bracket, such as the JSB210B, JSBUB, or JSBVS separately.
How much weight can the JWDSK210B support?
This swing arm mount has a maximum weight capacity of 75 lbs (34 kg) for a single display.
What is the installation depth of the mount?
The mount features a 3.4 in (8.6 cm) depth, though adding an interface bracket can increase this depth by 0" to 0.5".
Which technical documents are available for submittals?
You can access the JWDSK Series Installation Manual or the JSB210 Installation Manual for setup guidance and technical drawings for submittal packages.
