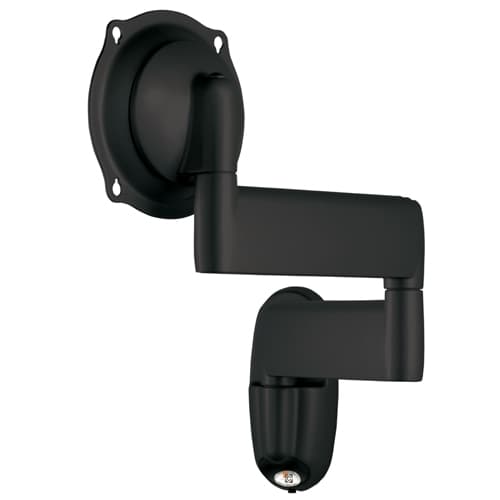

Medium Flat Panel Swing Arm Wall Display Mount - 20 Inch Extension - JWDVB
Medium flat panel swing arm mount with 20 inch extension, tilt, and swivel capability for professional AV installs
The Chief JWDVB is a medium flat panel swing arm wall display mount designed for versatile installation in professional environments. This mount provides a 20 inch extension, allowing installers to pull the display away from the wall for easier access to rear-facing ports or cabling. The Centris Fingertip Tilt mechanism enables smooth, gravity-centered tilt adjustment in all directions, ensuring the screen stays securely in place once positioned. It features a teardrop hole pattern to facilitate quick and efficient mounting. This unit supports both landscape and portrait screen orientations and includes an interface to simplify the connection process. For installation on metal studs, the MAC118B metal stud adapter can be used. The mount provides a low-profile appearance when folded close to the wall and includes post-installation leveling rolls to ensure the display is perfectly aligned. This TAA compliant solution is designed to hide hardware behind the display for a sleek aesthetic.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 2.7 in (6.9 cm) |
| Height | 14.7 in (37.3 cm) |
| Minimum Depth | 2.7 in (6.9 cm) |
| Overall Dimensions | 14.7" x 12.1" x 2.7" (373 x 308 x 68mm) |
| Shipping Weight | 18 lbs (8.2 kg) |
| Wall Stud Compatibility | Single Stud |
| Weight Capacity | 75 lbs (34 kg) |
| Width | 12.1 in (30.7 cm) |
All other specifications 13
| Adjustability | ExtensionSwivelTilt |
| Application | Wall |
| Color | Black |
| Interface Included | Yes |
| Number of Displays | 1 |
| Orientation | Landscape |
| Post-Installation Leveling Roll | Yes |
| Solution Type | Universal |
| TAA Compliant | Yes |
| Tilt | +15° / -15° |
| UPC | 841872063980 |
| VESA Mounting Pattern | 100 x 100mm, 200 x 100mm, 200 x 200mm, 400 x 200mm |
| Certifications | TAA |
Resources
You'll need these with it
Proximity™ Component Storage Panel, Interface
CSMP9X12$52.00
PAC525, In-Wall Storage Box
PAC525$79.20
J-Series Medium Interface Brackets-JSB210B
JSB210B$61.60
J-Series Universal Interface Bracket - JSBUB
JSBUB$61.60
Custom Interface Bracket for Cisco EX90
JSB2090B$312.80
J-Series Metal Stud Adapter - MAC118B
MAC118B$204.00
J-Series VESA Interface Bracket - JSBVB
JSBVB$61.60
J-Series Universal Interface Bracket - JSBUS
JSBUSDiscontinued
J-Series VESA Interface Bracket - JSBVS
JSBVSDiscontinued
J-Series Medium Interface Brackets-JSB210S
JSB210SDiscontinued
Verified fitment
Questions about this part
Will the Chief JWDVB fit my display?
The JWDVB is verified against 4,401 display models from 172 manufacturers, including Samsung, Sony, LG, Panasonic, Philips, and Sharp models like the LG 26CS460T and Sony BVMF250A.
What is the VESA mounting pattern for this mount?
This mount supports VESA mounting patterns ranging from 100 x 100mm up to 400 x 200mm.
What accessories are needed for the installation?
While this mount includes an interface, you may require additional components like the J-Series Universal Interface Bracket (JSBUS) or a PAC525 In-Wall Storage Box for complete system integration.
How much weight can this swing arm support?
The JWDVB has a weight capacity of 75 lbs (34 kg) at its specified extension.
What tools are needed for installation?
Installers should have standard tools on hand for single stud wall mounting, as this unit is designed for single stud applications.
