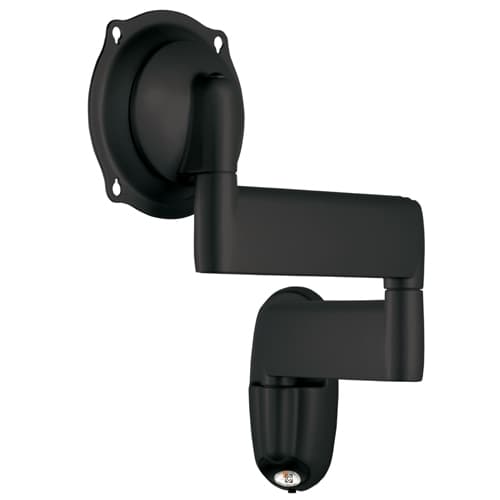

Medium Flat Panel Swing Arm Wall Display Mount - 20 Inch Extension - JWDUB
Medium swing arm wall mount with 20 inch extension, tilt, and swivel for displays up to 75 lbs
The Chief JWDUB is a medium-sized swing arm wall mount designed for versatile display positioning. This mount offers a 20 inch extension, allowing users to pull the screen away from the wall to improve viewing angles or facilitate easier access to rear connections. It features Centris Fingertip Tilt technology, which enables smooth, gravity-centered tilt adjustments of +15° to -15° to accommodate different display weights. The design includes teardrop hole patterns to accelerate the mounting process and integrated cable management to maintain a clean installation. This unit is built for single stud wall mounting and provides a low-profile appearance when folded close to the wall. For specialized installations, the JWDUB is compatible with the JSBU Universal Interface Bracket and the JSB210S Medium Interface Brackets. It is suitable for both landscape and portrait orientations, supporting VESA patterns from 100 x 100mm up to 400 x 400mm.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 2.7 in (6.9 cm) |
| Height | 14.7 in (37.3 cm) |
| Minimum Depth | 2.7 in (6.9 cm) |
| Overall Dimensions | 14.7" x 12.1" x 2.7" (373 x 308 x 68mm) |
| Shipping Weight | 15.8 lbs (7.2 kg) |
| Wall Stud Compatibility | Single Stud |
| Weight Capacity | 75 lbs (34 kg) |
| Width | 12.1 in (30.7 cm) |
All other specifications 12
| Adjustability | ExtensionSwivelTilt |
| Application | Wall |
| Color | Black |
| Interface Included | Yes |
| Number of Displays | 1 |
| Orientation | Landscape |
| Post-Installation Leveling Roll | Yes |
| Solution Type | Universal |
| TAA Compliant | No |
| Tilt | +15° / -15° |
| UPC | 841872114385 |
| VESA Mounting Pattern | 100 x 100mm - 400 x 400mm |
Resources
You'll need these with it
Proximity™ Component Storage Panel, Interface
CSMP9X12$52.00
PAC525, In-Wall Storage Box
PAC525$79.20
J-Series Medium Interface Brackets-JSB210B
JSB210B$61.60
J-Series Universal Interface Bracket - JSBUB
JSBUB$61.60
Custom Interface Bracket for Cisco EX90
JSB2090B$312.80
J-Series Metal Stud Adapter - MAC118B
MAC118B$204.00
J-Series VESA Interface Bracket - JSBVB
JSBVB$61.60
J-Series Universal Interface Bracket - JSBUS
JSBUSDiscontinued
J-Series VESA Interface Bracket - JSBVS
JSBVSDiscontinued
J-Series Medium Interface Brackets-JSB210S
JSB210SDiscontinued
Verified fitment
Questions about this part
Will this mount fit my display?
The JWDUB is verified against 7,597 display models from 249 manufacturers, including LG ELECTRONICS, PANASONIC, SAMSUNG, SONY, TOSHIBA, and SHARP.
What is required for the wall installation?
This mount is designed for single stud wall mounting and supports a weight capacity of up to 75 lbs (34 kg).
Does this mount include the interface bracket?
The JWDUB includes an interface. Additional components such as the JSBU Universal Interface Bracket or JSB210S Medium Interface Brackets may be required depending on your specific display.
How much tilt and extension does it provide?
It provides a 20 inch extension and a tilt range of +15° to -15° via Centris Fingertip Tilt adjustment.
What documents are available for submittals?
You can access the JWD210 Technical Drawing, the JSeries Installation Manual, or the JSBU Interface Technical Drawing for your project submittals.
