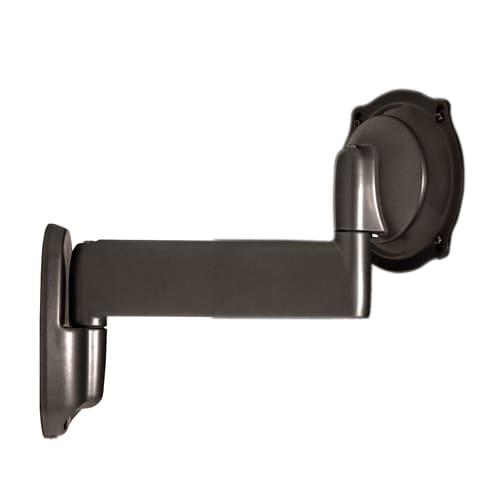

Medium Flat Panel Single Arm Wall Display Mount - 12 Inch Extension-JWSUB
Single arm articulating wall mount with 12 inch extension, supporting 75 lbs displays and VESA patterns 100 x 100mm to 400 x 400mm
The Chief JWSUB is a medium flat panel single arm wall display mount designed to provide a wide range of motion for monitors and displays in office or residential settings. This articulating mount features a 12 inch extension, allowing users to move the screen away from the wall to achieve ideal viewing angles. It supports both landscape and portrait orientations to accommodate different installation requirements. The mount is compatible with VESA mounting patterns ranging from 100 x 100mm to 400 x 400mm and can support a weight capacity of 75 lbs (34 kg). For installation on specialized surfaces, the MAC118B Metal Stud Adapter is an available accessory. This mount utilizes Centris Fingertip Tilt technology, which allows for smooth tilt adjustments of +15° / -15° through gravity-centered movement. The design features a teardrop hole pattern for simplified mounting and integrated cable management to maintain a clean aesthetic. Users can achieve precise positioning using the post-installation leveling roll. This unit ships assembled to streamline the installation process.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 3.4 in (8.6 cm) |
| Height | 11.5 in (29.2 cm) |
| Overall Dimensions | 11.5" x 13.1" x 3.4" (292 x 334 x 86mm) |
| Shipping Weight | 13.7 lbs (6.2 kg) |
| Wall Stud Compatibility | Single Stud |
| Weight Capacity | 75 lbs (34 kg) |
| Width | 13.1 in (33.3 cm) |
| Adjustability | ExtensionSwivelTilt |
All other specifications 9
| Application | Wall |
| Color | Black |
| Orientation | Landscape |
| Post-Installation Leveling Roll | Yes |
| Solution Type | Universal |
| TAA Compliant | No |
| Tilt | +15° / -15° |
| UPC | 841872114361 |
| VESA Mounting Pattern | 100 x 100mm - 400 x 400mm |
Resources
You'll need these with it
Proximity™ Component Storage Panel, Interface
CSMP9X12$52.00
J-Series Medium Interface Brackets-JSB210B
JSB210B$61.60
J-Series Arm Extension Kit - MAC1003B
MAC1003B$74.40
J-Series Arm Extension Kit - MAC1003S
MAC1003S$74.40
J-Series Universal Interface Bracket - JSBUB
JSBUB$61.60
Custom Interface Bracket for Cisco EX90
JSB2090B$312.80
J-Series Metal Stud Adapter - MAC118B
MAC118B$204.00
J-Series VESA Interface Bracket - JSBVB
JSBVB$61.60
J-Series Universal Interface Bracket - JSBUS
JSBUSDiscontinued
J-Series VESA Interface Bracket - JSBVS
JSBVSDiscontinued
J-Series Medium Interface Brackets-JSB210S
JSB210SDiscontinued
Verified fitment
Questions about this part
Will the Chief JWSUB fit my display?
This mount is verified against 2,261 display models from 132 manufacturers. It is compatible with brands such as SAMSUNG (43QN9*C), LG ELECTRONICS (32LK540BPUA), SONY (43BZ35P), TCL (32ES580), and SHARP (32BB3E).
What VESA pattern does this mount support?
The JWSUB supports a wide range of VESA mounting patterns, specifically from 100 x 100mm up to 400 x 400mm.
What can I buy to use this with a metal stud wall?
To install this mount on a metal stud, you will need to purchase the MAC118B J-Series Metal Stud Adapter.
How do I adjust the screen once it is mounted?
The mount features Centris Fingertip Tilt for smooth upward or downward adjustment and includes a post-installation leveling roll to fine-tune the display position.
Is the Chief JWSUB TAA compliant?
No, this specific model does not carry TAA compliance.
