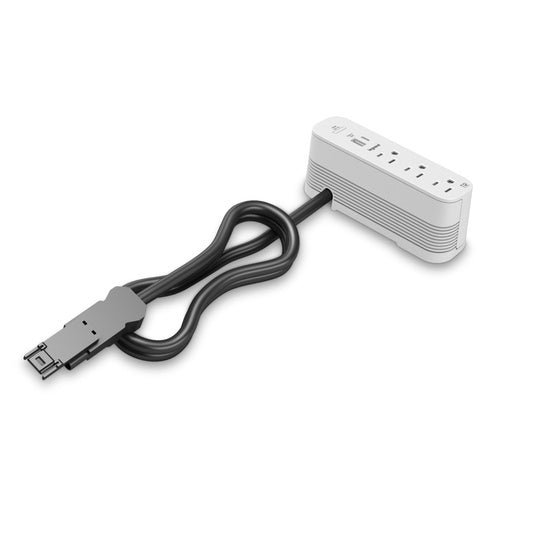

MDEA3-WH ModPower End Unit with On Surface in White
On-surface end unit for ModPower systems with 3 tamper-resistant 5-15R receptacles and integrated circuit breaker
The MDEA3-WH ModPower End Unit is designed for on-surface installation in training spaces, workstations, or flexible furniture environments. This white end unit serves as the termination point for a ModPower system, allowing you to connect up to six power units together to create a continuous power distribution solution. It features three 5-15R tamper-resistant receptacles, which include built-in protection to prevent accidental contact with live components. To comply with UL 962A Supplement SD for portable or moveable workspace tables, this unit includes an integrated circuit breaker for supplementary overcurrent protection. This specific on-surface model can be installed using wood screws or via a clamp method for a damage-free installation on tabletops. The unit is UL Spill Water Compliant, making it suitable for horizontal surfaces like conference tables.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Cord Length | 3 ft (0.9 m) |
| Shipping Dimensions | 1.1" x 8.1" x 3.2" (28 x 205.8 x 81.3 mm) |
| Available Internationally | No |
| Color | White |
| Outlet Count | 3 |
| Receptacle Type | 5-15R |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
Will the MDEA3-WH work on a tabletop or horizontal surface?
Yes, this unit is UL Spill Water Compliant, which allows it to be used on horizontal surfaces like tabletops.
How many power units can I connect in a single ModPower system?
You can connect up to six ModPower units together to create a complete power distribution system.
What is required for code compliance in moveable workstations?
This end unit includes an integrated circuit breaker to meet UL 962A Supplement SD requirements for supplementary overcurrent protection.
How is the MDEA3-WH installed on furniture?
For on-surface mounting, you can use wood screws or a clamp for a damage-free installation.
Which document is needed for a submittal regarding code compliance?
You can refer to the 'How to Meet Code With the ModPower™ System' PDF for guidance on regulatory requirements.
