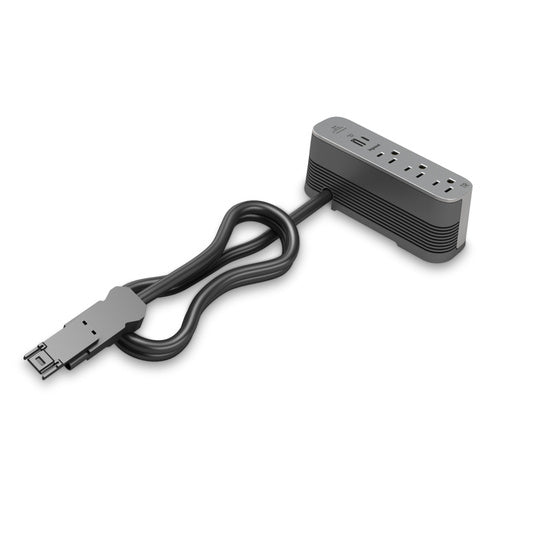

MDEA3-MG ModPower End Unit On Surface in Magnesium
Magnesium finish on-surface end unit with three tamper-resistant 5-15R receptacles and integrated circuit breaker for modular furniture power systems
The Wiremold MDEA3-MG is a modular end unit designed for on-surface mounting in training spaces, workstations, or flexible furniture environments. This magnesium-finished component serves as the termination point for a ModPower system, allowing you to connect up to six power units together to create a customized power distribution network. This specific end unit features three 5-15R tamper-resistant receptacles and includes an integrated circuit breaker to comply with UL962A supplementary overcurrent protection requirements for portable or moveable workspace tables. For installation on horizontal surfaces like tabletops, this unit is UL 962A spill water compliant. Installers can choose to mount these on-surface units using wood screws or via a clamp for a damage-free installation. The 3 ft (0.9 m) cord length provides the necessary reach to connect this end unit into your established ModPower series.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Cord Length | 3 ft (0.9 m) |
| Shipping Dimensions | 11.1" x 8.1" x 3.2" (282 x 205.8 x 81.3 mm) |
| Available Internationally | No |
| Color | Magnesium |
| Outlet Count | 3 |
| Receptacle Type | 5-15R |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
How do I install the MDEA3-MG on a table?
This on-surface end unit can be mounted to your furniture using wood screws or by using a clamp for a damage-free installation.
Is the MDEA3-MG suitable for use on a tabletop?
Yes, this unit is UL 962A spill water compliant, making it safe for use on horizontal surfaces such as tabletops.
How many units can be connected in a ModPower system?
You can connect up to six ModPower units together to create a complete power system for workstations or training spaces.
What type of protection does this unit provide?
This unit utilizes an integrated circuit breaker to meet UL 962A Supplement SD requirements for supplementary overcurrent protection.
What is the difference between this and the white version?
The MDEA3-MG is specifically finished in Magnesium, whereas the other color option in this series is White.
