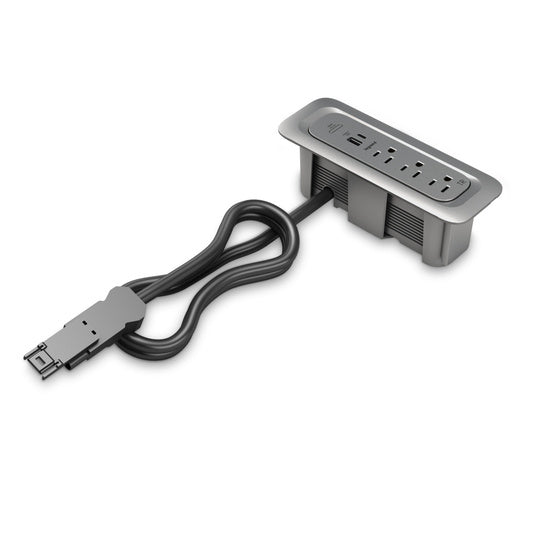

MDCA3-MG ModPower End Unit In Surface in Magnesium
Magnesium finish end unit for ModPower systems, featuring 3 tamper-resistant receptacles and integrated overcurrent protection
The MDCA3-MG is a ModPower end unit in a Magnesium finish designed for modular power distribution in flexible workspaces or training areas. This specific unit functions as an end piece, allowing you to connect up to six ModPower units together to build a comprehensive power system for workstations or tables. It features three 5-15R tamper-resistant receptacles to enhance safety by restricting access to the slots. To meet UL 962A supplement requirements for portable or moveable workspace tables, this unit includes integrated supplementary overcurrent protection via a built-in circuit breaker. This configuration is UL Spill Water Compliant, making it suitable for use on horizontal surfaces like tabletops. The unit includes a 3 ft (0.9 m) cord for connectivity.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Cord Length | 3 ft (0.9 m) |
| Overall Dimensions | 6.13" x 1.75" x 2.5" (155.8 x 44.5 x 63.5 mm) |
| Available Internationally | No |
| Color | Magnesium |
| Outlet Count | 3 |
| Receptacle Type | 5-15R |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
Can I use the MDCA3-MG on a tabletop?
Yes, this unit is UL Spill Water Compliant, which allows it to be installed on horizontal surfaces like tabletops.
Does this unit provide overcurrent protection?
Yes, this unit includes an integrated circuit breaker to provide the supplementary overcurrent protection required by UL 962A for portable workspace tables.
How many ModPower units can be connected in a single system?
You can connect up to six ModPower units together to create a complete power distribution system for your workspace.
What is the cord length for this end unit?
The MDCA3-MG comes with a 3 ft (0.9 m) cord.
Which documents should I use for a submittal?
You can refer to the ModPower™ System Cut Sheet or the ModPower™ System Guide Specification for detailed technical submittal information.
