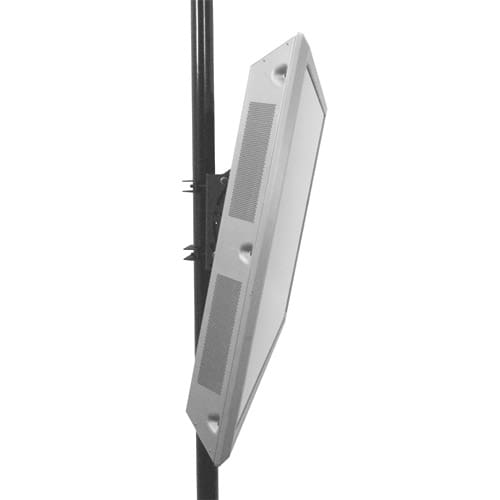

Large Tilt Pole Mount (without interface)
Large tilt pole mount for displays up to 150 lbs (68 kg), supporting landscape or portrait orientation
The Chief TPM2000B is a large tilt pole mount designed for mounting flat panel displays in retail, exhibit, or digital signage environments. This SKU is the pole mount only and does not include an interface; installers must order a compatible PSBXXXX custom or universal interface separately. It is compatible with various pole and truss systems up to 14" (OD) and requires separate TPK kits and clamps to secure to the structure. This mount supports both landscape and portrait orientations and features the exclusive Q-Latch Mounting System to secure the display with a lockable latch. For increased security, integrated padlocking points allow the display to be locked to the mount. Once installed, the unit features a post-installation leveling roll to assist with fine-tuned adjustments. This TAA compliant solution is verified against 3,243 display models from 147 manufacturers, including Sony FWD32LX1, Samsung 320MP, and Panasonic EJMLA32EW.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Shipping Dimensions | 39.5" x 20" x 5.25" (100.3 x 50.8 x 13.3 cm) |
| Shipping Weight | 17 lbs (7.7 kg) |
| Weight Capacity | 150 lbs (68 kg) |
| Adjustability | Tilt |
| Application | Pole |
| Color | Black |
| Interface Included | No |
| Orientation | LandscapePortrait |
All other specifications 6
| Post-Installation Leveling Roll | Yes |
| Solution Type | Universal and Custom |
| TAA Compliant | Yes |
| UPC | 841872044934 |
| VESA Mounting Pattern | 200 x 200mm - 862 x 517mm |
| Certifications | TAA |
Resources
You'll need these with it
Verified fitment
Questions about this part
What do I need to buy to complete the installation of the TPM2000B?
The TPM2000B is a mount only and does not include an interface; you must separately order a PSBXXXX custom or universal interface and TPK kits/clamps for your specific pole or truss dimensions.
Can I mount a display in portrait orientation with this mount?
Yes, the TPM2000B supports both landscape and portrait orientations, and you can use PAC400 or MAC400 accessories to rotate the screen without removing it from the mount.
What is the maximum weight capacity for the TPM2000B?
The mount has a weight capacity of 150 lbs (68 kg).
Will this mount fit my display?
This mount is verified against 3,243 display models from 147 manufacturers, including models from Sony, Samsung, LG Electronics, Philips, Panasonic, and Sharp.
Does this mount feature any security mechanisms?
It utilizes the Q-Latch Mounting System to secure the display and includes integrated security points for adding a padlock.
