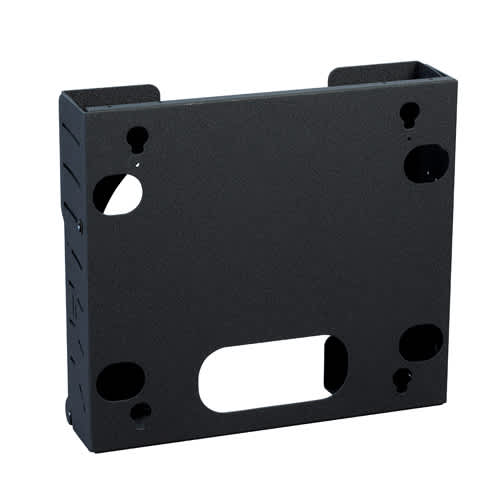

Large Tilt Mount with CPU Storage (without interface)
Large tilt wall mount for digital signage, featuring integrated CPU storage and up to 15° of lockable tilt
The Chief PWC2000 is a specialized all-in-one tilt wall mounting solution engineered specifically for digital signage applications. This mount is designed to integrate a media player directly into a flat panel installation, keeping hardware secure and out of sight. It features an integrated storage area that accommodates equipment up to 20" x 18.79" x 3.79" (508 x 477 x 96 mm). For security, the system utilizes the Q-Latch Mounting System, which provides a lockable latch to secure the display. The mount supports both landscape and portrait orientations, and can be used with a PAC400 or MAC400 accessory to rotate the screen without requiring removal from the mount. For installers managing cable access, the system provides a lateral shift of 1.5 in (3.8 cm) and a tilt range of +0° / -15°, with lockable tilt settings at 0°, 5°, 10°, and 15°. This SKU is the version without an interface; for an integrated solution, the CSMP9X12 Proximity™ Component Storage Panel can be added.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Lateral Shift | 1.5 in (3.8 cm) |
| Max Equipment Size | 20" x 18.79" x 3.79" (508 x 477 x 96 mm) |
| Maximum Screen Thickness | 6 in (152.4 mm) |
| Minimum Depth | 4.5 in (11.4 cm) |
| Shipping Dimensions | 39.5" x 20" x 5.25" (100.3 x 50.8 x 13.3 cm) |
| Shipping Weight | 22 lbs (10 kg) |
| Weight Capacity | 200 lbs (90.7 kg) |
| Adjustability | Tilt |
All other specifications 11
| Application | On-DisplayWall |
| Color | Black |
| Interface Included | No |
| Number of Displays | 1 |
| Orientation | LandscapePortrait |
| Solution Type | Universal |
| TAA Compliant | Yes |
| Tilt | +0° / -15° |
| UPC | 841872091136 |
| VESA Mounting Pattern | 200 x 200mm - 862 x 517mm |
| Certifications | TAA |
Resources
You'll need these with it
Proximity™ Component Storage Panel, Interface
CSMP9X12$52.00
Metal Stud Anchor Kit - 4 Anchors
PAC115$27.20
P-Series Rotation Adapter
PAC400$320.80
Video Conferencing Camera Shelf – 9", for Extra-Large Displays
PAC810$190.40
Flat Panel 28 Inch Lateral Shift Accessories
PAC125Discontinued
PAC800HS Above/Below HuddleSHOT All-in-One Conferencing Camera Shelf for Large Displays
PAC800HSDiscontinued
PAC810HS Above/Below HuddleSHOT All-in-One Conferencing Camera Shelf for Extra-Large Displays
PAC810HSDiscontinued
Questions about this part
Will the PWC2000 fit my display?
This mount is compatible with VESA patterns ranging from 200 x 200mm to 862 x 517mm and can support a maximum screen thickness of 6 in (152.4 mm).
Can I rotate the screen from landscape to portrait?
The PWC2000 supports both orientations. To rotate the display without removing it from the mount, use a PAC400 or MAC400 rotation adapter.
What is the difference between this SKU and the one with an interface?
This PWC2000 model does not include an interface. To add component storage with an interface, you must purchase the CSMP9X12 Proximity™ Component Storage Panel separately.
How much weight can this mount hold?
The PWC2000 is rated for a weight capacity of 200 lbs (90.7 kg) and features lockable tilt settings to maintain the display angle.
What installation tools or accessories are required?
Depending on your installation environment, you may need a PAC115 Metal Stud Anchor Kit for 4 anchors. For conferencing setups, the PAC810 or PAC810HS camera shelves are compatible accessories.
