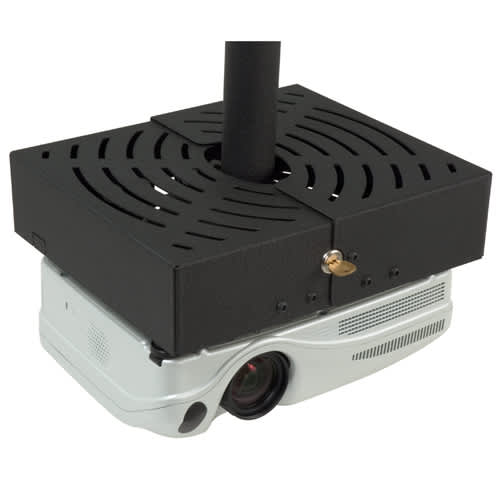

Large RPA Series Projector (Lock C)
Security lock for large RPA series projectors, providing key-operated protection while maintaining ventilation and maintenance access
The Chief PL1C is a security accessory designed to provide an extra layer of defense against theft for large RPA series projectors. This specific model features a 'Lock C' configuration, which utilizes a keyed lock to secure the unit. Unlike full enclosures that can impede airflow or serviceability, this slotted design ensures proper ventilation is maintained for the projector. The unit is designed for discrete integration with both new and existing RPA series installations. For maintenance, the design includes sliding access doors that allow for quick and easy access to lamps and filters without removing the security hardware. Additionally, the design accommodates standard cable routing through 1.5" NPT pipe.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 14" x 14" x 6"(355.6 x 355.6 x 152.4 mm) |
| Shipping Weight | 10 lbs (4.5 kg) |
| Accessory Type | Security |
| Color | Black |
| Locking Type | C |
| Projector Size | Large |
| TAA Compliant | Yes |
| UPC | 841872057651 |
| Certifications | TAA |
Resources
Questions about this part
Will this PL1C lock fit my RPA series projector?
The PL1C is designed specifically for large RPA series projector installations. For smaller projector models, you should use the PL2 series instead.
Can I still service the lamp and filter once the lock is installed?
Yes. The PL1C includes sliding access doors specifically designed to keep lamp and filter maintenance quick and easy without compromising security.
How does the locking mechanism differ from the other PL1 models?
The PL1C is one of three unique configurations in the series, distinguished by its specific 'Lock C' keyed option.
What do I need to know about cable routing with this lock?
The design allows for standard cable routing through a 1.5" NPT pipe to ensure a professional installation.
Is there technical documentation available for submittals?
Yes, you can refer to the PL1 Technical Drawing for dimensions or the PL1 Installation Manual for mounting procedures.
