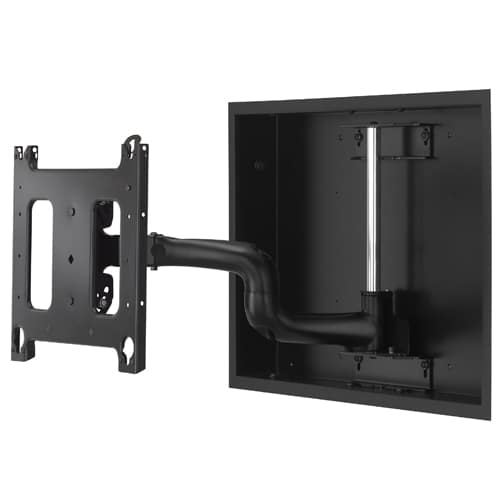

Large Low-Profile In-Wall Swing Arm Mount - 22 Inch - PWRIWUB
In-wall swing arm mount for 37"–55" displays, featuring 22" of extension and a 0.5 inch minimum depth
The Chief PWRIWUB is a large in-wall swing arm mount designed to facilitate ultra low-profile installations while providing necessary service flexibility. This mount is engineered to create a sleek, integrated appearance with a minimum depth of 0.5 inches (1.3 cm). To achieve a complete installation, you must order the PAC501B In-Wall Accessory and a compatible PSB bracket separately; the specific PSB bracket required depends on your display model. This unit ships fully assembled to reduce on-site installation time for professionals. Once mounted, the arm provides an extension of over 22" (569 mm), allowing the display to be pulled forward for viewing from various angles or for servicing. The system supports both landscape and portrait orientations and includes a post-installation leveling roll for fine-tuning. This TAA-compliant solution is designed for universal application in high-end residential or commercial environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Minimum Depth | 0.5 in (1.3 cm) |
| Shipping Dimensions | 34.25" x 23.75" x 7" (870 x 603.3 x 177.8 mm) |
| Shipping Weight | 45.8 lbs (20.8 kg) |
| Typical Screen Size | 37" - 55" (940mm - 1397mm) |
| Weight Capacity | 125 lbs (56.7 kg) |
| Adjustability | ExtensionSwivelTilt |
| Application | In-Wall |
| Color | Black |
All other specifications 8
| Interface Included | Yes |
| Orientation | LandscapePortrait |
| Post-Installation Leveling Roll | Yes |
| Solution Type | Universal |
| TAA Compliant | Yes |
| Tilt | +2° / -15° |
| UPC | 841872109244 |
| Certifications | TAA |
Resources
You'll need these with it
P-Series CPU/DVD/Media Player Adapter-PAC253
PAC253$272.00
P-Series CPU/DVD/Media Player Adapter-PAC252
PAC252$347.20
P-Series CPU/DVD/Media Player Adapter-PAC251
PAC251$309.60
PSBUB, P-Series Universal Interface Bracket
PSBUB$177.60
Proximity™ Component Storage Panel, Interface
CSMP9X12$52.00
900x600 VESA Interface Adapter Bracket
PSB2104$273.60
Center Channel Speaker Adapter-PACCC2
PACCC2$262.40
Video Conferencing Camera Shelf - 14 Inch
PAC716$179.20
ClickConnect Padlock
PAC138$37.60
P-Series Rotation Adapter
PAC400$320.80
ClickConnect Locking Flag Kit - PAC136B
PAC136B$25.60
Verified fitment
Questions about this part
Will the PWRIWUB fit my display?
It is verified against 3,359 display models from 165 manufacturers, including Samsung 460DRNS, LG 39LY560H, Sony FW55BZ40L, Panasonic PBT42PWD8UK, Philips 37HF7444, and TCL 48FD2700.
What else do I need to buy for a complete installation?
You must separately order the PAC501B In-Wall Accessory and a specific PSB bracket, which can be identified using the Chief mountfinder.
How much clearance is needed once installed?
This mount offers a minimum depth of 0.5 inches (1.3 cm) when fully recessed into the wall.
How can I adjust the display once it is on the wall?
The mount features extension, swivel, and tilt capabilities, including a +2° to -15° tilt range and a post-installation leveling roll.
Does this mount support portrait orientation?
Yes, the PWRIWUB is designed for both landscape and portrait orientations.
