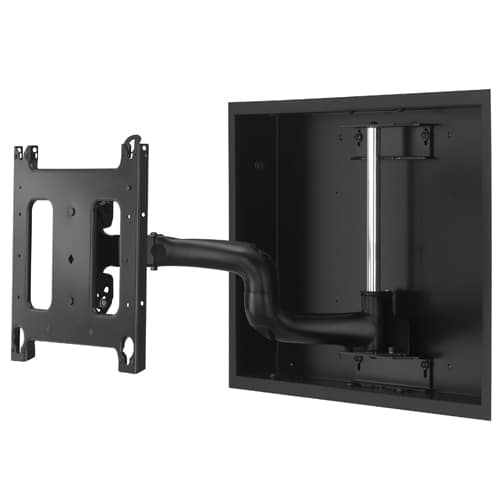

Large Low-Profile In-Wall Swing Arm Mount - 22 Inch - PWRIW2000B
In-wall swing arm mount for 37"–55" displays, 125 lbs capacity, with extension, lateral shift, swivel, and tilt
The Chief PWRIW2000B is an in-wall swing arm mount designed to facilitate an ultra low-profile installation. This solution allows the display to sit nearly flush against the wall surface, while providing significant movement once mounted. It extends over 22" (569 mm) to allow for viewing from any angle and features tilt adjustability of +2° / -15°. For installers requiring a clean, professional finish, this unit ships fully assembled to reduce on-site installation time. It includes a post-installation leveling roll to ensure the display is perfectly aligned after the mount is secured. This TAA compliant mount supports both landscape and portrait orientations. Please note that this unit does not include the required interface bracket or in-wall accessory; an interface bracket and the PAC501B In-Wall Accessory must be ordered separately to complete the installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Shipping Dimensions | 34.25" x 23.5" x 7" (870 x 596.9 x 177.8 mm) |
| Shipping Weight | 34.9 lbs (15.8 kg) |
| Typical Screen Size | 37" - 55" (940mm - 1397mm) |
| Weight Capacity | 125 lbs (56.7 kg) |
| Adjustability | ExtensionLateral ShiftSwivelTilt |
| Application | In-Wall |
| Color | Black |
| Interface Included | No |
All other specifications 7
| Orientation | LandscapePortrait |
| Post-Installation Leveling Roll | Yes |
| Solution Type | Universal and Custom |
| TAA Compliant | Yes |
| Tilt | +2° / -15° |
| UPC | 841872109206 |
| Certifications | TAA |
Resources
You'll need these with it
P-Series CPU/DVD/Media Player Adapter-PAC253
PAC253$272.00
P-Series CPU/DVD/Media Player Adapter-PAC252
PAC252$347.20
P-Series CPU/DVD/Media Player Adapter-PAC251
PAC251$309.60
PSBUB, P-Series Universal Interface Bracket
PSBUB$177.60
Proximity™ Component Storage Panel, Interface
CSMP9X12$52.00
900x600 VESA Interface Adapter Bracket
PSB2104$273.60
Center Channel Speaker Adapter-PACCC2
PACCC2$262.40
Video Conferencing Camera Shelf - 14 Inch
PAC716$179.20
ClickConnect Padlock
PAC138$37.60
P-Series Rotation Adapter
PAC400$320.80
ClickConnect Locking Flag Kit - PAC136B
PAC136B$25.60
Verified fitment
Questions about this part
What do I need to buy to complete the installation of the PWRIW2000B?
You must separately order the PAC501B In-Wall Accessory and a compatible PSB bracket to complete the installation.
Will this mount fit my specific display model?
The PWRIW2000B is verified against 4,480 display models from 149 manufacturers, including Sony BVMX300, Samsung 320MX, and LG 32LC3R.
Does the PWRIW2000B include the necessary VESA interface?
No, the interface is not included with this SKU. You will need to select the correct PSB bracket for your specific display's VESA pattern.
How much movement can I get once the mount is in the wall?
The arm provides over 22" (569 mm) of extension, lateral shift, swivel, and tilt (+2° / -15°) for optimal positioning.
Can this mount be used in portrait orientation?
Yes, the PWRIW2000B is rated for both landscape and portrait orientations.
