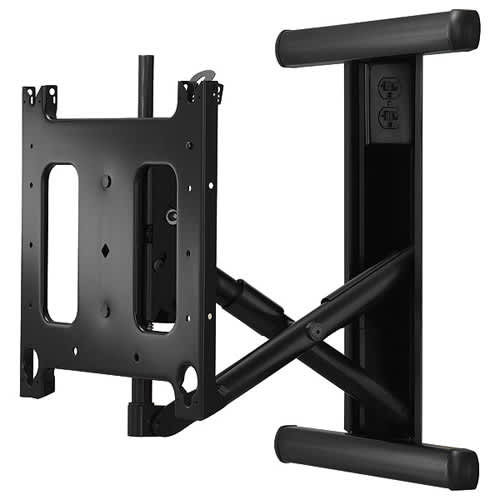

Large Low-Profile In-Wall Swing Arm Mount - 15 Inch (without interface)
Large in-wall swing arm mount with 200 lbs capacity and 5 in (127 mm) lateral shift for low-profile display installations
The Chief PIWRF2000B is a large low-profile in-wall swing arm mount designed to provide full articulation while maintaining a concealed appearance behind a flat panel. This mount is intended for in-wall applications where the installer requires the ability to move the display away from the wall for servicing or cable access. It features Centris Technology, which utilizes the center of gravity to allow for smooth, fingertip tilt adjustments of +2° to -15°. The ClickConnect Technology ensures a secure installation by providing an audible click when the flat panel is properly locked into place. This mount offers 5 in (127 mm) of lateral shift and supports both landscape and portrait orientations. The PIWRF2000B is TAA compliant and is compatible with a wide range of VESA mounting patterns from 200 x 200mm up to 862 x 517mm. Please note that this specific SKU does not include an interface bracket; adding an interface bracket will increase the depth and extension by 0.5 - 1.5".
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Lateral Shift | 5 in (127 mm) |
| Minimum Depth | 1.7 in (4.3 cm) |
| Shipping Dimensions | 39.25" x 19" x 6" (997 x 482.6 x 152.4 mm) |
| Shipping Weight | 52.25 lbs (23.7 kg) |
| Weight Capacity | 200 lbs (90.7 kg) |
| Adjustability | ExtensionHeight AdjustableSwivelTilt |
| Application | In-Wall |
| Color | Black |
All other specifications 9
| Interface Included | No |
| Orientation | LandscapePortrait |
| Post-Installation Leveling Roll | Yes |
| Solution Type | Universal |
| TAA Compliant | Yes |
| Tilt | +2° / -15° |
| UPC | 841872110660 |
| VESA Mounting Pattern | 200 x 200mm - 862 x 517mm |
| Certifications | TAA |
Resources
You'll need these with it
P-Series CPU/DVD/Media Player Adapter-PAC253
PAC253$272.00
P-Series CPU/DVD/Media Player Adapter-PAC252
PAC252$347.20
P-Series CPU/DVD/Media Player Adapter-PAC251
PAC251$309.60
PSBUB, P-Series Universal Interface Bracket
PSBUB$177.60
Proximity™ Component Storage Panel, Interface
CSMP9X12$52.00
900x600 VESA Interface Adapter Bracket
PSB2104$273.60
Center Channel Speaker Adapter-PACCC2
PACCC2$262.40
Video Conferencing Camera Shelf - 14 Inch
PAC716$179.20
ClickConnect Padlock
PAC138$37.60
P-Series Rotation Adapter
PAC400$320.80
ClickConnect Locking Flag Kit - PAC136B
PAC136B$25.60
Video Conferencing Camera Shelf – 9", for Extra-Large Displays
PAC810$190.40
Verified fitment
Questions about this part
Will the Chief PIWRF2000B fit my display?
This mount is verified against 4,432 display models from 151 manufacturers, including Samsung 320MX, Sony FW55BZ30J, and LG 32LC50C. It supports VESA patterns from 200 x 200mm to 862 x 517mm.
What else do I need to buy to complete the installation?
This SKU does not include an interface bracket. You may need to purchase a P-Series Universal Interface Bracket, such as the PSBUB, to complete the assembly.
How much can I move the screen once it is mounted?
The mount provides 5 in (127 mm) of lateral shift and allows for a tilt range of +2° to -15°.
How do I rotate the display between landscape and portrait?
While the mount supports both orientations, you can use the PAC400 P-Series Rotation Adapter to rotate the screen without having to remove it from the mount.
Is there a way to ensure the display is securely locked?
Yes, the integrated ClickConnect Technology provides an audible click to confirm that the flat panel is correctly locked in place.
