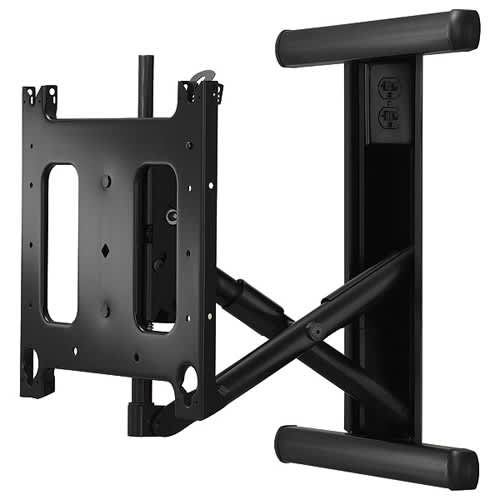

Large Low-Profile In-Wall Swing Arm Display Mount - 15 Inch - PIWRFUB
Large low-profile in-wall swing arm mount with 200 lbs capacity and TAA compliance
The Chief PIWRFUB is a large low-profile in-wall swing arm display mount designed to provide a clean, concealed installation while maintaining full articulation. This universal solution is TAA compliant and features an interface bracket, allowing for a minimized 1.7 in (4.3 cm) minimum depth once installed. For installers working with standard wood framing, Centris Technology allows for limitless centering on the wall between 16-inch center studs without the need for cutting studs. Once the display is mounted, the integrated cable management and post-installation leveling roll help achieve a perfectly aligned, professional finish. The mount supports both landscape and portrait orientations, and if rotation is required after installation, it is compatible with the PAC400 rotation adapter. This mount utilizes ClickConnect Technology to provide an audible click, confirming the panel is securely locked in place without the need for tools during connection or disconnection.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Lateral Shift | 5 in (127 mm) |
| Minimum Depth | 1.7 in (4.3 cm) |
| Shipping Dimensions | 39" x 18.75" x 6" (990.6 x 476.3 x 152.4 mm) |
| Shipping Weight | 64 lbs (29 kg) |
| Weight Capacity | 200 lbs (90.7 kg) |
| Adjustability | ExtensionHeight AdjustableSwivelTilt |
| Application | In-Wall |
| Color | Black |
All other specifications 9
| Interface Included | Yes |
| Orientation | LandscapePortrait |
| Post-Installation Leveling Roll | Yes |
| Solution Type | Universal |
| TAA Compliant | Yes |
| Tilt | +2° / -15° |
| UPC | 841872110677 |
| VESA Mounting Pattern | 200 x 200mm - 862 x 517mm |
| Certifications | TAA |
Resources
You'll need these with it
Q-Latch Display Mount Adapter for 55 in. Cisco Webex Board
PSB2088$415.20
P-Series CPU/DVD/Media Player Adapter-PAC253
PAC253$272.00
P-Series CPU/DVD/Media Player Adapter-PAC252
PAC252$347.20
P-Series CPU/DVD/Media Player Adapter-PAC251
PAC251$309.60
PSBUB, P-Series Universal Interface Bracket
PSBUB$177.60
Proximity™ Component Storage Panel, Interface
CSMP9X12$52.00
900x600 VESA Interface Adapter Bracket
PSB2104$273.60
Center Channel Speaker Adapter-PACCC2
PACCC2$262.40
Video Conferencing Camera Shelf - 14 Inch
PAC716$179.20
ClickConnect Padlock
PAC138$37.60
P-Series Rotation Adapter
PAC400$320.80
ClickConnect Locking Flag Kit - PAC136B
PAC136B$25.60
Verified fitment
Questions about this part
Will the Chief PIWRFUB fit my display?
This mount is verified against 4,624 display models from 194 manufacturers, including Sony models FD55X8570C and FW100BZ40J, and Samsung models 460DRNS.
What do I need to buy to rotate the screen?
If you need to change the orientation from landscape to portrait, the PAC400 rotation adapter can be used to rotate the display without removing it from the mount.
How do I know the display is securely attached?
The mount uses ClickConnect Technology, which provides an audible click to confirm the flat panel is locked in place without requiring tools.
Can I adjust the screen position after it is in the wall?
Yes, the PIWRFUB features a post-installation leveling roll for fine-tuning and offers tilt adjustment of +2° / -15°.
What is the VESA pattern for this mount?
The mount supports VESA mounting patterns ranging from 200 x 200mm to 862 x 517mm.
