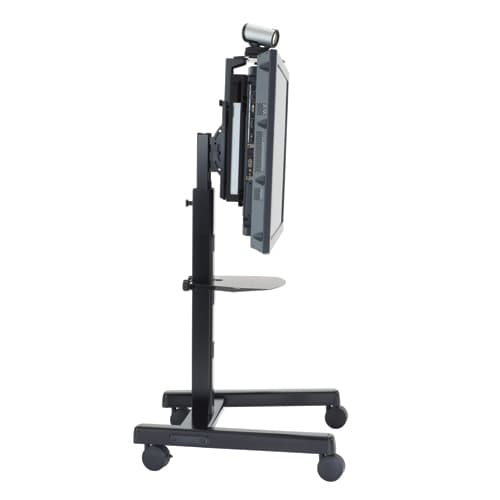

Large Flat Panel Mobile AV Cart - PFCUB
Mobile AV cart for 42"-86" displays, 200 lbs capacity, with manual height adjustment and integrated cable management
The Chief PFCUB is a lightweight mobile AV cart designed for versatility in rental, staging, and corporate applications. This collapsible floor-cart supports a single display ranging from 42" to 86" (1067 to 2184 mm) and is capable of holding weights up to 200 lbs (90.7 kg). To accommodate varying viewing heights, the cart features a 24 in (609.6 mm) manual height adjustment range. For precise placement, it includes a post-installation leveling roll. The unit is compatible with both landscape and portrait orientations and features a universal interface bracket. For interactive setups, the PACTP1 touch screen stabilizing accessory can be added. This model includes the universal interface but does not include a PAC700 case. When using this cart in a professional environment, consider adding the PAC710 Height-Adjustable Accessory Shelf or a PAC810 Video Conferencing Camera Shelf to accommodate additional hardware.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Manual Height Adjustment | 24 in (609.6 mm) |
| Shipping Dimensions | 46.25" x 19" x 7.75" (117.5 x 48.3 x 19.7 cm) |
| Shipping Weight | 65.52 lbs (29.7 kg) |
| Typical Screen Size | 42"- 86" (1067mm - 2184mm) |
| Weight Capacity | 200 lbs (90.7 kg) |
| Adjustability | Tilt, Height Adjustable |
| Application | Floor-Cart |
| Color | Black |
All other specifications 8
| Number of Displays | 1 |
| Orientation | LandscapePortrait |
| PAC700 Case Included | No |
| Post-Installation Leveling Roll | Yes |
| Solution Type | Universal |
| TAA Compliant | No |
| UPC | 841872100630 |
| VESA Mounting Pattern | 200 x 200mm - 862 x 517mm |
Resources
You'll need these with it
Proximity™ Component Storage Panel, Interface
CSMP9X12$52.00
Video Conferencing Camera Shelf – 9", for Extra-Large Displays
PAC810$190.40
Video Conferencing Camera Shelf - 14 Inch
PAC716$179.20
Video Conferencing Camera Shelf - 9 Inch - PAC715
PAC715$153.60
Center Channel Speaker Adapter-PACCC2
PACCC2$262.40
PSBUB, P-Series Universal Interface Bracket
PSBUB$177.60
P-Series CPU/DVD/Media Player Adapter-PAC251
PAC251$309.60
P-Series CPU/DVD/Media Player Adapter-PAC253
PAC253$272.00
P-Series CPU/DVD/Media Player Adapter-PAC252
PAC252$347.20
Height-Adjustable Accessory Shelf, TAA Compliant
PAC710$147.20
900x600 VESA Interface Adapter Bracket
PSB2104$273.60
CMK10 CordMate Cord Organizer Kit
CMK10$25.59
Verified fitment
Questions about this part
Will the PFCUB fit my specific display model?
The PFCUB is verified against 3,079 display models from 196 manufacturers. Examples include the Samsung 460DRNS, LG 39LY750H, Sony FWD42LX1B, Panasonic LH86QM1KD, Philips 37PF9731, and Sharp 4TB80CJ1U.
What accessories are needed for a touch screen setup?
For interactive touch panels, the PACTP1 touch screen stabilizing accessory can be added to improve stability during use.
Does this cart include a shelf for extra components?
No, the PAC710 Height-Adjustable Accessory Shelf must be ordered separately to add storage for hardware or media players.
Can this cart be used in portrait orientation?
Yes, the PFCUB is designed to support both landscape and portrait orientations for single-display setups.
What is the VESA compatibility for this mobile cart?
This cart supports VESA mounting patterns ranging from 200 x 200mm to 862 x 517mm.
