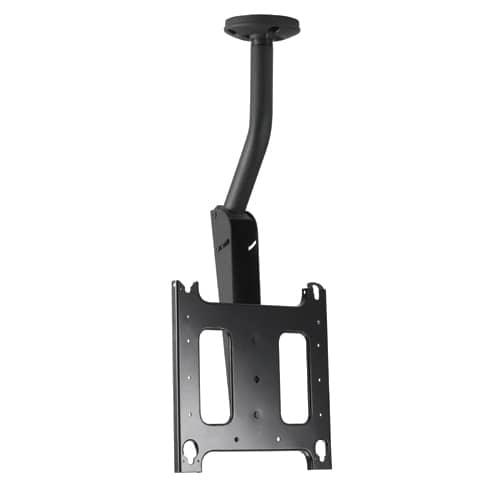

Large Flat Panel Ceiling Mount with Angled Column (without interface)
Angled ceiling mount for large flat panels up to 200 lbs, supporting landscape or portrait orientation with adjustable tilt
The Chief PCM2000B is an angled column ceiling mount designed for stable installations of large flat panel displays in commercial environments. This mounting solution is built to utilize the display's natural center of gravity, making it a reliable choice for digital signage in retail, transportation, and corporate settings. It supports a single display with a weight capacity of 200 lbs (90.7 kg) and accommodates both landscape and portrait orientations to meet specific installation requirements. To ensure proper viewing angles, the mount provides tilt adjustment ranging from +5° to -25°. Integrators can achieve precise alignment using the integrated post-installation leveling roll. This TAA compliant and UL Listed solution is compatible with Chief ceiling plates, extension columns, and various accessories, such as the CSMP9X12 Proximity™ Component Storage Panel, Interface.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Shipping Dimensions | 39.5" x 20" x 5.25" (100.3 x 50.8 x 13.3 cm) |
| Shipping Weight | 22 lbs (10 kg) |
| Weight Capacity | 200 lbs (90.7 kg) |
| Adjustability | Tilt |
| Application | Ceiling |
| Color | Black |
| Number of Displays | 1 |
| Orientation | LandscapePortrait |
All other specifications 6
| Post-Installation Leveling Roll | Yes |
| Solution Type | Universal and Custom |
| TAA Compliant | Yes |
| Tilt | +5° and -25° |
| UPC | 841872040080 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Verified fitment
Questions about this part
Will the Chief PCM2000B fit my display?
The PCM2000B is verified against 9,269 display models from 168 manufacturers. Examples include Sony models FW55BZ30J and FW55BZ40E, Samsung models 320MX, and LG Electronics models 32LC3R.
What is the tilt range of this ceiling mount?
This mount provides tilt adjustment from +5° to -25° to help achieve the optimal viewing angle for your display.
Does this mount require additional hardware for the interface?
The PCM2000B is sold without an interface. You may need to purchase a CSMP9X12 Proximity™ Component Storage Panel, Interface to complete the installation.
Can I adjust the leveling after the display is mounted?
Yes, the mount features a post-installation leveling roll to allow for precise adjustments once the display is in place.
Is this product TAA compliant?
Yes, the PCM2000B is TAA compliant and UL Listed for use in professional commercial AV applications.
