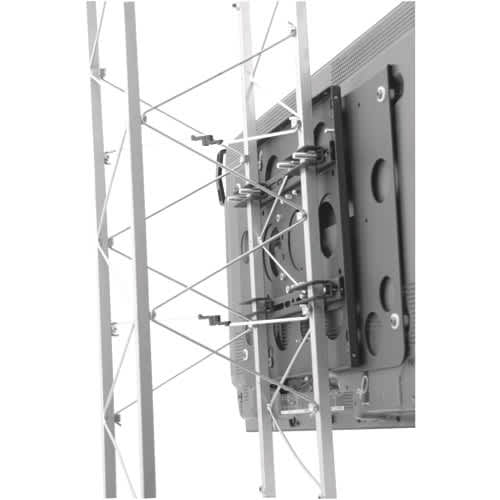

Large Fixed Truss Pole Mount (without interface)
Large fixed truss and pole mount for displays up to 150 lbs, supporting VESA patterns up to 862 x 517mm
The TPS2000B is a large fixed truss and pole mount designed for mounting large flat panel displays in exhibit, retail, and digital signage environments. This black, TAA-compliant mount allows for installation on either vertical or horizontal truss and supports both landscape and portrait orientations. It features the exclusive Q-Latch Mounting System, which uses a lockable latch to secure the display to the mount. To ensure a secure installation, an integrated security feature allows the display to be locked to the mount by adding a padlock. This SKU is the fixed version of the mount and does not include an interface. To complete your installation, you must separately order the TPS2000B and a PSBXXXX custom interface or the PSBUB universal interface. Additionally, clamps for different size poles and truss work are required and must be ordered separately via TPK kits. This mount is verified against 4,000 display models from 147 manufacturers, including Samsung 320MX and LG 32LC3R.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Minimum Depth | 1.08 in (2.7 cm) |
| Shipping Dimensions | 39.5" x 20" x 5.25" (100.3 x 50.8 x 13.3 cm) |
| Shipping Weight | 15 lbs (6.8 kg) |
| Weight Capacity | 150 lbs (68 kg) |
| Adjustability | Fixed |
| Application | Pole |
| Color | Black |
| Interface Included | No |
All other specifications 7
| Orientation | LandscapePortrait |
| Post-Installation Leveling Roll | Yes |
| Solution Type | Universal and Custom |
| TAA Compliant | Yes |
| UPC | 841872044958 |
| VESA Mounting Pattern | 200 x 200mm - 862 x 517mm |
| Certifications | TAA |
Resources
You'll need these with it
P-Series CPU/DVD/Media Player Adapter-PAC253
PAC253$272.00
P-Series CPU/DVD/Media Player Adapter-PAC252
PAC252$347.20
P-Series CPU/DVD/Media Player Adapter-PAC251
PAC251$309.60
PSBUB, P-Series Universal Interface Bracket
PSBUB$177.60
Proximity™ Component Storage Panel, Interface
CSMP9X12$52.00
900x600 VESA Interface Adapter Bracket
PSB2104$273.60
Center Channel Speaker Adapter-PACCC2
PACCC2$262.40
Video Conferencing Camera Shelf - 14 Inch
PAC716$179.20
ClickConnect Padlock
PAC138$37.60
P-Series Rotation Adapter
PAC400$320.80
ClickConnect Locking Flag Kit - PAC136B
PAC136B$25.60
Video Conferencing Camera Shelf – 9", for Extra-Large Displays
PAC810$190.40
Verified fitment
Questions about this part
What interface do I need to buy for the TPS2000B?
The TPS2000B does not include an interface. You must separately order the TPS2000B and a PSBXXXX custom interface or the PSBUB universal interface to complete the setup.
Will this mount fit my display?
The TPS2000B is verified against 4,000 display models from 147 manufacturers, including models from Samsung, LG Electronics, Sony, Panasonic, Philips, and Sharp.
What kind of truss or pole does this mount attach to?
This mount can be installed on vertical or horizontal truss and is compatible with TPK clamp accessories. It can span most truss systems up to 14" (355.6 mm) outer diameter.
Can I rotate the display from landscape to portrait?
Yes, the mount supports both landscape and portrait orientations. You can also use a PAC400 or MAC400 accessory to rotate the screen without removing it from the mount.
Can I secure the display against theft?
The mount includes an integrated security feature that allows you to lock the display to the mount by adding a padlock using the ClickConnect locking system.
