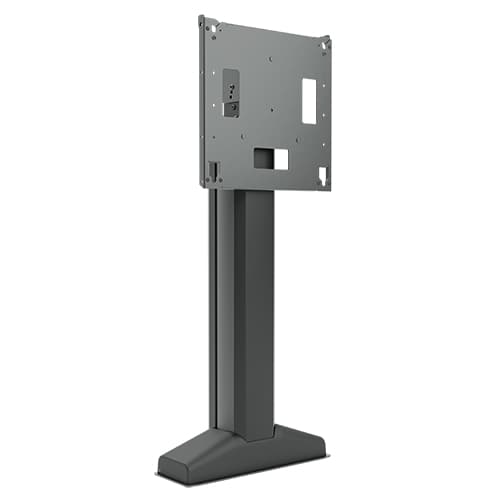

Large Capacity Electric Height Adjustable Flat Panel Floor Support Mount
Electric floor-support mount for interactive displays with 26" of vertical lift and 200 lbs capacity
The Chief LFE1U is a large capacity electric height adjustable floor support mount designed to increase accessibility in classrooms and boardrooms. This floor-support solution provides 26" (660 mm) of vertical lift, allowing users to electronically adjust the display height via an integrated control pad. The mount is UL Listed and meets the Tall Institutional Cart Standard. To enhance user control, the system supports optional remote control kits like the PACREM or a PACBLU Bluetooth™ Dongle for use with the LINAK® smartphone app. Safety is prioritized through integrated anti-collision technology, which immediately halts and reverses motion upon encountering an obstruction. This feature protects both users and the display from pinching or damage. Built-in cable management and strain relief help maintain cable integrity by preventing accidental disconnections during height adjustments. This model is part of a series that includes cart, floor-support, and wall-mount options.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Shipping Dimensions | 48.73" x 24.28" x 9.06" (123.8 x 61.7 x 23 cm) |
| Shipping Weight | 91 lbs (41.3 kg) |
| Weight Capacity | 200 lbs (90.7 kg) |
| Adjustability | Height Adjustable, Tilt |
| Adjustments | Vertical lift range 26" |
| Application | Floor-CartFurniture |
| Color | Black |
| Power Cord | US Cord |
All other specifications 5
| TAA Compliant | No |
| Tilt | +2°0°4° increments |
| UPC | 841872173481 |
| VESA Mounting Pattern | 200 x 200mm – 860 x 510mm |
| Certifications | UL Listed |
Resources
You'll need these with it
Video Conferencing Camera Shelf – 9", for Extra-Large Displays
PAC810$190.40
P-Series Rotation Adapter
PAC400$320.80

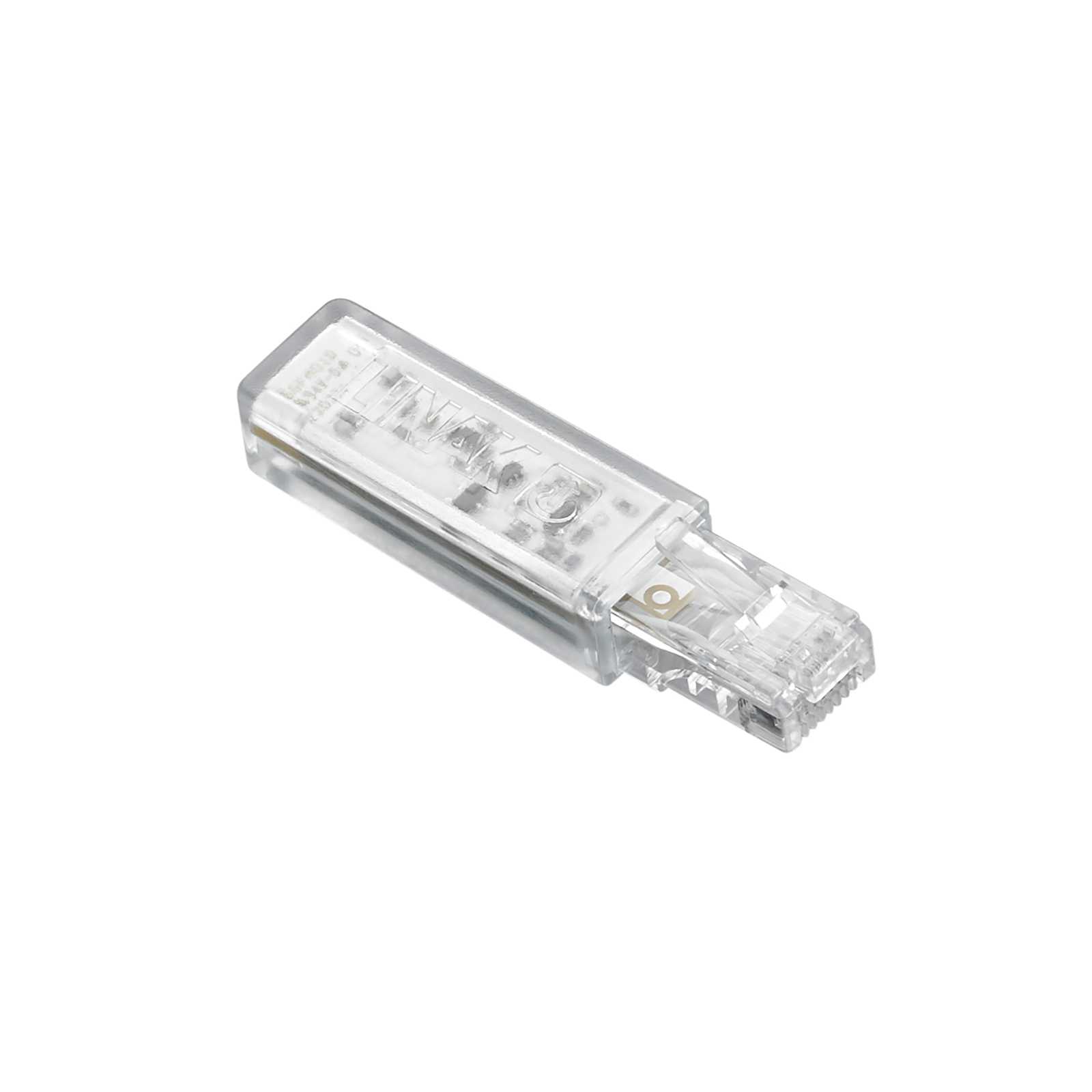

PACBLU Bluetooth Dongle
PACBLU$92.80

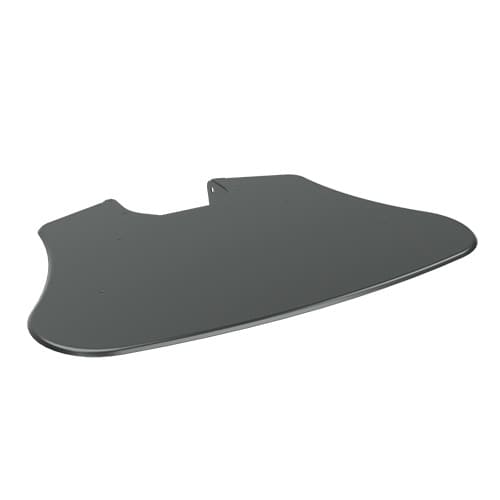

Height-Adjustable Accessory Shelf – for LPE/LFE
PAC870$162.40
Height-Adjustable Accessory Shelf – for LPE/LFE Series
PAC870$162.40
Video Conferencing Camera Shelf - 14 Inch
PAC716$179.20

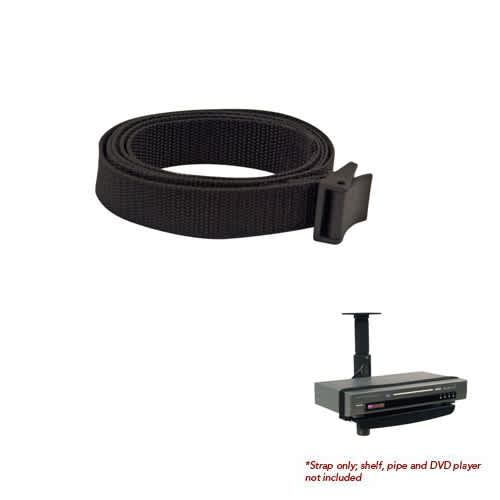

Accessory Shelf Safety Strap
PAC103$25.60
Video Conferencing Camera Shelf – 14", for Extra-Large Displays
PAC811$200.00
Large Accessory Shelf
PACCS1$147.20
Bluetooth Remote and Dongle
PACREM$200.00
Center Channel Speaker Adapter-PACCC1
PACCC1$153.60

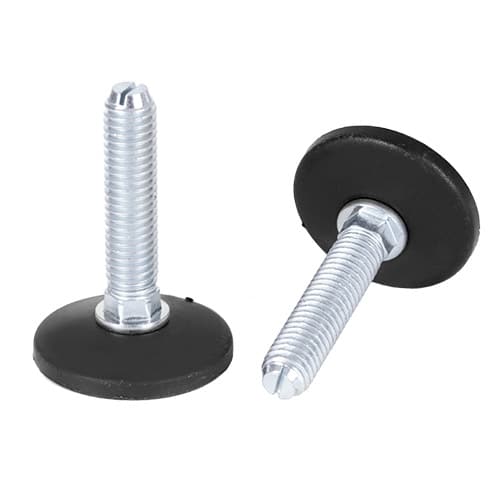

Fusion® LVM Leveling Feet Accessory
FCA776$204.80
Verified fitment
Questions about this part
Will the LFE1U fit my specific display?
Yes, it is verified against 7,023 display models from 263 manufacturers, including Samsung 460DX, LG 100QNED85AU, and Panasonic LH86QM1KD.
What accessories can I add to this mount?
Compatible accessories include the PAC870 Height-Adjustable Accessory Shelf, PACCS1 Large Accessory Shelf, and various camera shelves like the PAC811.
How do I control the height adjustment?
Height is adjusted using the included integrated control pad, or you can add a PACREM Bluetooth Remote and Dongle for smartphone app control.
What is the VESA pattern for this floor mount?
The LFE1U supports VESA mounting patterns ranging from 200 x 200mm up to 860 x 510mm.
How does the anti-collision feature work?
If the mount encounters an obstruction during motion, the technology immediately halts the motor and reverses the direction to prevent injury or damage.
