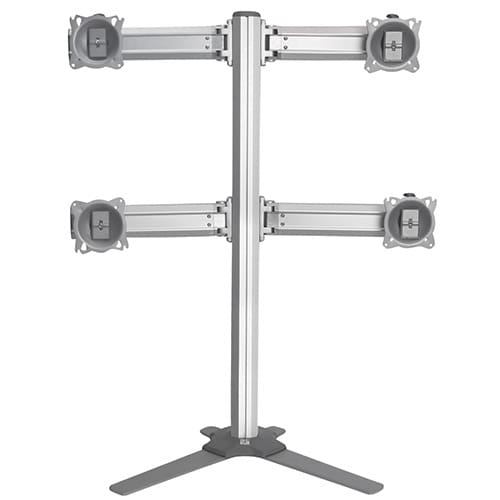

Kontour™ K3 Free Standing 2x2 Array - K3F220S
2x2 freestanding monitor array for up to 4 displays, each up to 27" diagonal, featuring height and tilt adjustability
The Chief Kontour K3 K3F220S is a 2x2 array workstation mount designed to hold four displays in a single, stable configuration. This freestanding silver mount supports up to 27" (686mm) diagonal monitors with a weight capacity of 15 lbs (6.8 kg) per display. For professional environments like control rooms, security desks, or IT workstations, this array provides significant flexibility through independent height and tilt adjustments for each individual monitor. Each display can be tilted from -12° to provide optimal viewing angles. The system includes tool-free integrated cable management to maintain a clean, professional aesthetic. This TAA-compliant solution is designed for versatile desktop use, supporting both landscape and portrait orientations. The array's footprint is 34.02" x 38.81" x 7.03" (864.1 x 985.8 x 178.5mm). For installers requiring different mounting styles, the K3 series also offers grommet or bolt-through options, and the KRA500 Desk Clamp accessory is available for most K3 configurations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 7.03 in (17.9 cm) |
| Height | 38.81 in (98.6 cm) |
| Overall Dimensions | 38.81" x 34.02" x 7.03" (985.8 x 864.1 x 178.5mm) |
| Shipping Weight | 35.21 lbs (16 kg) |
| Typical Screen Size | Up to 27" (686mm) diagonal |
| Weight Capacity | 15 lbs (6.8 kg) |
| Width | 34.02 in (86.4 cm) |
| Adjustability | Height AdjustableTilt |
All other specifications 16
| Application | Desk-TabletopFreestanding |
| Array Configuration | 2x2 |
| Color | Silver |
| Desktop Thickness Range | 0.5" - 5" (13mm - 127mm) |
| Grommet Hole Size Range | 0.38" - 3.5" (10mm - 89mm) |
| Mounting Method | Free Standing |
| Number of Displays | 4 |
| Orientation | LandscapePortrait |
| Post-Installation Leveling Roll | Yes |
| Solution Type | Universal |
| Special Features | Multi-Display |
| TAA Compliant | Yes |
| Tilt | -12° |
| UPC | 841872157788 |
| VESA Mounting Pattern | 75 x 75mm, 100 x 100mm |
| Certifications | TAA |
Resources
Verified fitment
Questions about this part
Will the K3F220S fit my specific monitors?
This mount is verified against 4,555 display models from 105 manufacturers. It is compatible with VESA patterns of 75 x 75mm and 100 x 100mm and fits displays like the Samsung 150MP, LG 17LS5R, or Dell 1900FP.
Can I mount this using a desk clamp instead of standing it freely?
While this SKU is the freestanding version, the KRA500 Desk Clamp accessory is compatible with most Kontour K3 series array mounts.
What are the weight and size limits for the displays?
Each display in the 2x2 array must not exceed 15 lbs (6.8 kg) and can have a maximum width of 29.3 inches.
Does this mount support different screen orientations?
Yes, the K3F220S allows for both landscape and portrait orientations for the displays in the array.
What is required for a submittal or technical planning?
You can access the K3 Series Installation Manual, the K3F220 Technical Drawing, or the CAD drawing for your submittal package.
