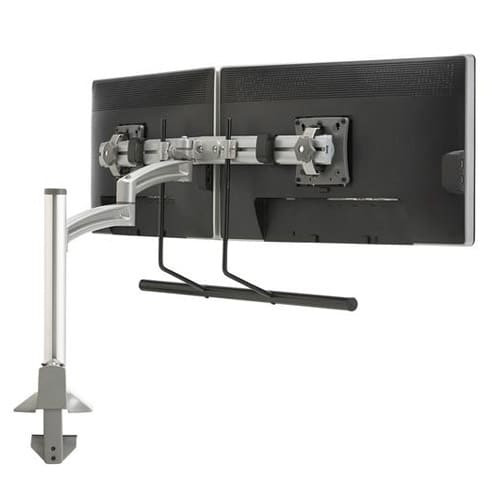

Kontour™ K2C Articulating Column Mount, Dual Monitor Array - K2C22HS
Dual monitor articulating column mount for 10"–24" displays, 15 lbs capacity, with manual height adjustment and TAA compliance
The Chief K2C22HS Kontour K2C Articulating Column Mount is a dual monitor array solution designed for professional workstations, healthcare environments, and home offices. This 2x1 configuration supports two displays with typical screen sizes ranging from 10" to 24" diagonals. Each monitor is held by a forged aluminum arm, featuring a silver finish and a patented Centris™ Head that provides +/- 10° of tilt to ensure optimal viewing angles for both sitting and standing users. The column allows for 7" (178 mm) of manual height adjustment, enabling installers to position screens at the ideal ergonomic height for any user. The mount provides a maximum extension of 19.66 in (49.9 cm) and a minimum depth of 6.16 in (15.7 cm) to facilitate flexible workspace layouts. This TAA-compliant mounting system can be installed via a desk-edge clamp, a standard grommet hole, or a through-bolt using the included kit. For a professional installation, the system includes tool-free cable management clips and a quick-release monitor interface for simplified maintenance. This model is part of the Kontour K2C series, which is available in a black finish as well as this silver version.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Maximum Extension | 19.66 in (49.9 cm) |
| Minimum Depth | 6.16 in (15.7 cm) |
| Shipping Dimensions | 30" x 14.5" x 8" (762 x 368.3 x 203.2 mm) |
| Shipping Weight | 18 lbs (8.2 kg) |
| Typical Screen Size | 10" - 24" (254mm - 609.6 mm) diagonals |
| Weight Capacity | 15 lbs (6.8 kg) |
| Adjustability | ExtensionHeight AdjustableSwivelTilt |
| Application | Desk-Tabletop |
All other specifications 11
| Array Configuration | 2x1 |
| Color | Silver |
| Dual Array | Yes |
| Number of Arm Links | 2 |
| Number of Displays | 2 |
| Orientation | LandscapePortrait |
| Special Features | Multi-Display |
| TAA Compliant | Yes |
| Tilt | +/- 10° |
| UPC | 841872160566 |
| Certifications | TAA |
Resources
Verified fitment
Questions about this part
Will this mount fit my specific monitors?
The K2C22HS is verified against 5,324 display models from 180 manufacturers. Examples of compatible displays include Samsung 150MP1, LG 15LA60, Philips 10BDL3051T, Dell 1704FPT, Sharp AS173MBK, and Toshiba 14DL74.
How much weight can each arm support?
Each monitor in this dual array can have a weight capacity of up to 15 lbs (6.8 kg) per display.
What mounting options are available for this desk mount?
This unit can be installed using an edge clamp, through a standard grommet hole, or via a through-bolt using the hardware provided in the kit.
How do I adjust the height and tilt of the monitors?
The K2C22HS features 7" (178 mm) of manual height adjustment on the column and utilizes a Centris™ Head to provide +/- 10° of tilt for ergonomic positioning.
What is the difference between the K2C22HS and other K2C models?
This SKU is the silver finish version of the Kontour K2C series; the K2C series is also available in a black finish.
