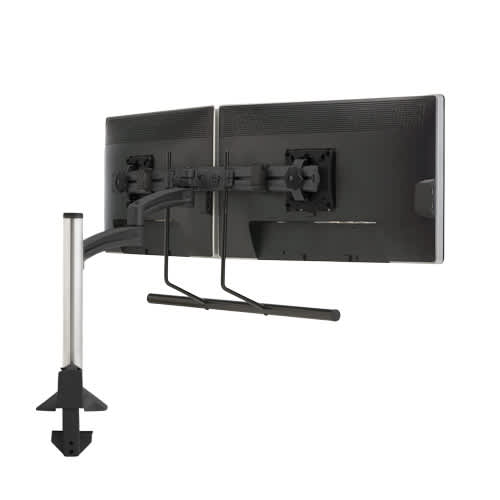

Kontour™ K2C Articulating Column Mount, Dual Monitor Array - K2C22HB
Dual monitor articulating column mount for 10"–24" displays, 15 lbs capacity per arm, and manual height adjustment
The Chief K2C22HB Kontour K2C is an articulating column mount designed for dual monitor arrays in a 2x1 configuration. This workstation mount supports two displays with typical screen sizes ranging from 10" to 24" diagonals. Each arm provides a weight capacity of 15 lbs (6.8 kg) and allows for a maximum extension of 19.66" (49.9 cm) with a minimum depth of 6.16" (15.7 cm). Users can achieve optimal ergonomic positioning through manual height adjustment on the column, offering a 7" (178 mm) range for screen placement. The Centris™ Head enables +/- 10° of tilt for both sitting and standing work modes, and the arms allow for swivel and height adjustments to facilitate landscape or portrait orientation. This TAA compliant solution features tool-free cable management clips for professional wire routing and is compatible with various desk mounting methods including edge clamping, grommet holes, or bolt holes using the included kit.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Maximum Extension | 19.66 in (49.9 cm) |
| Minimum Depth | 6.16 in (15.7 cm) |
| Shipping Dimensions | 30" x 14.5" x 8" (762 x 368.3 x 203.2 mm) |
| Shipping Weight | 18 lbs (8.2 kg) |
| Typical Screen Size | 10" - 24" (254mm - 609.6 mm) diagonals |
| Weight Capacity | 15 lbs (6.8 kg) |
| Adjustability | ExtensionHeight AdjustableSwivelTilt |
| Application | Desk-Tabletop |
All other specifications 11
| Array Configuration | 2x1 |
| Color | Black |
| Dual Array | Yes |
| Number of Arm Links | 2 |
| Number of Displays | 2 |
| Orientation | LandscapePortrait |
| Special Features | Multi-Display |
| TAA Compliant | Yes |
| Tilt | +/- 10° |
| UPC | 841872160559 |
| Certifications | TAA |
Resources
Verified fitment
Questions about this part
Will this mount work with my specific monitor?
The K2C22HB is verified against 5,435 display models from 181 manufacturers, including Samsung 150MP, LG 15LA60, Philips 10BDL3051T, Dell 1704FPT, and Toshiba 14DL74.
How do I mount this to my desk?
This unit can be installed using three different methods: it can be clamped to the edge of a desk, mounted through a standard grommet hole, or secured through a bolt hole using the kit included in the package.
Can I change the orientation of the monitors?
Yes, the articulating arms allow you to position your displays in either landscape or portrait orientation to suit your workspace.
What tools are required for installation?
The mount features a 3-step installation process and a quick-release monitor interface; the updated base includes built-in storage for your installation tools.
How much height adjustment can I get?
The column provides 7" (178 mm) of manual height adjustment to help you find the ideal ergonomic position for your eyes.
