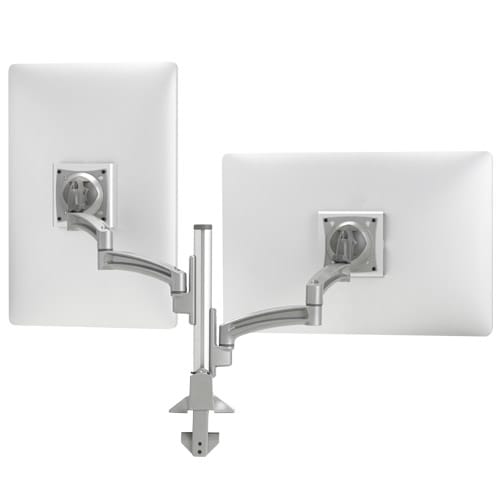

Kontour™ K2C Articulating Column Mount, 2 Monitors - K2C220S
Dual articulating column mount for 10–32" monitors with 17.63 in maximum extension and manual height adjustment
The Chief K2C220S is a dual-monitor articulating column mount designed to improve ergonomics in office, healthcare, or home environments. This workstation mount allows users to position two displays at the ideal height and angle to maximize productivity. It features a column that provides 7 in (178 mm) of manual height adjustment, allowing for precise screen placement relative to the work surface. The two forged aluminum arms offer a maximum extension of 17.63 in (44.8 cm) and can be configured in either landscape or portrait orientation. Each arm utilizes patented Centris™ technology, providing an effortless tilt range of +15° to -15° for optimal viewing comfort. For a clean workspace, the system includes tool-free cable management clips. This silver-finished mount is versatile in its installation, as it can be clamped to the edge of a desk, installed through a standard grommet hole, or secured via a bolt hole using the included kit.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Maximum Extension | 17.63 in (44.8 cm) |
| Minimum Depth | 4.13 in (10.5 cm) |
| Shipping Dimensions | 35.5" x 10.5" x 10.5" (901.7 x 266.7 x 266.7 mm) |
| Shipping Weight | 15.16 lbs (6.9 kg) |
| Typical Screen Size | 10 - 32" (254mm - 813mm) |
| Weight Capacity | 25 lbs (11.3 kg) |
| Adjustability | ExtensionHeight AdjustableSwivelTilt |
| Application | Desk-Tabletop |
All other specifications 9
| Color | Silver |
| Dual Array | No |
| Number of Arm Links | 2 |
| Number of Displays | 2 |
| Orientation | LandscapePortrait |
| Special Features | Multi-Display |
| TAA Compliant | No |
| Tilt | +15° / -15° |
| UPC | 841872160535 |
Resources
Verified fitment
Questions about this part
Will the K2C220S fit my monitors?
This mount is verified against 6,638 display models from 246 manufacturers, including Samsung 150MP, LG 15LA60, and Dell 1704FPT.
How do I mount this to my desk?
The K2C220S can be installed by clamping to the edge of a desk, through a standard grommet hole, or using the included bolt hole kit.
What is the weight capacity for each monitor?
The mount supports a weight capacity of 25 lbs (11.3 kg) per display.
What tools are required for installation?
The updated base includes integrated tool storage for the necessary installation items to simplify the setup process.
Can I adjust the height of the displays once they are mounted?
Yes, the column allows for 7 in (178 mm) of manual height adjustment to optimize ergonomic positioning.
