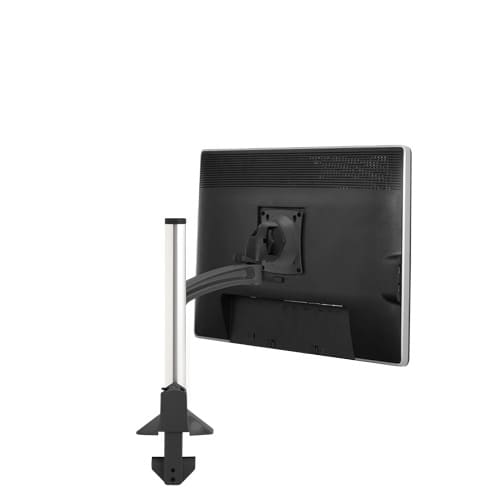

Kontour™ K2C Articulating Column Mount, 1 Monitor-K2C110B
Single monitor articulating column mount with manual height adjustment and 40 lbs capacity for desktop workstations
The Chief K2C110B is a single-display articulating column mount designed for desk or tabletop applications in office, healthcare, or home environments. This workstation mount utilizes a manual height-adjustable column, providing 7" (178 mm) of travel to help achieve optimal ergonomic positioning. The forged aluminum arm provides a 12.76" (0.3 m) maximum extension and can reach a minimum depth of 6.01" (15.3 cm). Featuring the patented Centris™ Head, the mount allows for +/- 15° of effortless tilt to ensure viewing comfort in both sitting and standing positions. Users can easily adjust the display orientation between landscape and portrait modes. For a professional installation, the unit includes tool-free cable management clips to keep wiring organized. The system is designed for versatile mounting, allowing it to be clamped to the edge of a desk, installed through a standard grommet hole, or secured via a bolt hole using the included kit. This K2C series model is finished in black.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Maximum Extension | 12.76 in (0.3 m) |
| Minimum Depth | 6.01 in (15.3 cm) |
| Shipping Dimensions | 33.75" x 17.5" x 6.5" (857.3 x 444.5 x 165.1 mm) |
| Shipping Weight | 8 lbs (3.6 kg) |
| Weight Capacity | 40 lbs (18.1 kg) |
| Adjustability | ExtensionHeight AdjustableSwivelTilt |
| Application | Desk-Tabletop |
| Color | Black |
All other specifications 8
| Dual Array | No |
| Number of Arm Links | 1 |
| Number of Displays | 1 |
| Orientation | LandscapePortrait |
| Special Features | Multi-Display |
| TAA Compliant | No |
| Tilt | +15° / -15° |
| UPC | 841872160474 |
Resources
Verified fitment
Questions about this part
Will the K2C110B fit my monitor?
This mount is verified against 6,555 display models from 215 manufacturers, including Samsung 150MP, LG 15LA60, Dell 1704FPT, Sharp 1T-C24FA2KF2NB, NEC 1940CX, and Toshiba 14VL33.
What are the mounting options for this column mount?
The K2C110B can be mounted in three ways: clamped to the edge of a desk, installed through a standard grommet hole, or through a bolt hole using the included kit.
Can I change the monitor orientation with this mount?
Yes, the K2C110B supports both landscape and portrait orientations to accommodate different workstation needs.
What is the difference between the K2C110B and other K2C models?
The K2C110B is the black finish variant of the K2C series; other versions in this series may offer a silver finish.
Which document should I use for submittals?
The K2C Series Installation Manual is available for installation guidance, and the K2C110 Technical Drawing can be used for detailed dimensions.
