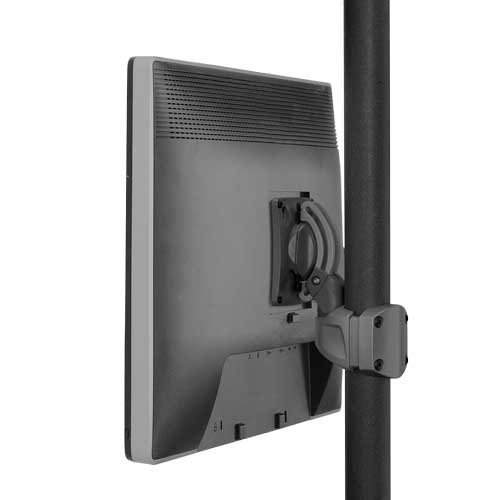

Kontour™ K0 Pole Mount with Extreme Tilt Pitch/Pivot - K0P100B
Pole or desk mount for single displays, featuring +75° to -10° extreme tilt and 40 lb capacity
The Chief K0P100B Kontour™ K0 Pole Mount provides an exceptional range of motion for single-monitor installations using Centris™ Extreme Tilt technology. This mount is engineered for demanding environments such as security monitoring stations, back-kitchen video displays, public spaces, and standard office workstations. It features a patented tilt mechanism that allows for effortless movement from +75° to -10°, facilitating optimal viewing angles even in awkward positions. The mount supports both landscape and portrait orientations and includes a post-installation leveling roll to ensure the display is properly aligned once mounted. With a 40 lb (18.1 kg) weight capacity, this mount is capable of supporting larger monitors, touch-panels, and all-in-one computers. It is compatible with VESA® 75 x 75 mm and 100 x 100 mm patterns, and can be adapted for non-VESA compliant monitors using Chief FSB interface brackets.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Minimum Depth | 2.6 in (6.6 cm) |
| Pole Diameter Range | 1.50" - 1.90" (38.1mm - 48.3 mm) |
| Shipping Dimensions | 11" x 7.75" x 6"(279.4 x 196.9 x 152.4 mm) |
| Shipping Weight | 3.05 lbs (1.4 kg) |
| Adjustability | SwivelTilt |
| Application | Desk-TabletopPole |
| Color | Black |
| Number of Displays | 1 |
| Orientation | LandscapePortrait |
| Post-Installation Leveling Roll | Yes |
| TAA Compliant | No |
| UPC | 841872159935 |
Resources
Verified fitment
Questions about this part
Will this mount fit my specific display model?
The K0P100B is verified against 8,055 display models from 274 manufacturers. Examples include SAMSUNG 150MP, LG ELECTRONICS 15LA60, PHILIPS 10BDL3051T, NEC 1740CX, DELL 1504FP, and SHARP 1T-C24FA2KF2NB.
What pole diameters can I use with the K0P100B?
This pole mount is designed to clamp to poles with a diameter range of 1.50" to 1.90" (38.1mm - 48.3 mm), including Chief's KTA pole accessories.
Does this mount support non-VESA monitors?
While the mount is natively compatible with VESA® 75 x 75 mm and 100 x 100 mm patterns, you can support non-VESA compliant monitors by using Chief FSB interface brackets.
How much weight can the K0P100B handle?
The mount has a 40 lb (18.1 kg) weight capacity, making it suitable for large monitors, touch-panels, and all-in-one computers.
Can I adjust the tilt and rotation after installation?
Yes, the mount features adjustable tension settings on the rotation and tilt mechanisms to allow for either free-moving or fully locked display positioning.
