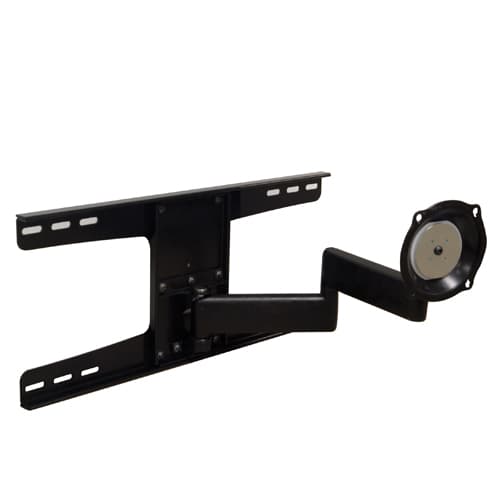

JWDSKVB, Medium Flat Panel Swing Arm Wall Mount (Metal Studs) - 20 Inch
Medium swing arm wall mount for metal studs with 20-inch extension and 75 lbs capacity
The Chief JWDSKVB is a medium-format swing arm wall mount specifically engineered for installation on 16, 20, or 24-inch on-center steel studs. This TAA compliant solution provides a 20-inch extension, allowing installers to pull displays away from the wall for easier access to cabling or surface-level adjustments. The mount features a versatile range of adjustability, including tilt (+15° / -15°), swivel, and extension capabilities to ensure precise positioning. It is designed to support a single display with a weight capacity of 75 lbs (34 kg). The physical profile includes a width of 26 in (66 cm), a height of 13 in (33 cm), and a depth of 3.4 in (8.6 cm). For final positioning, the mount includes a post-installation leveling roll to assist in achieving a perfectly level orientation. Note that depth and extension measurements do not include the interface bracket, which may add between 0" and 0.5" of additional depth to the installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 3.4 in (8.6 cm) |
| Height | 13 in (33 cm) |
| Minimum Depth | 3.4 in (8.6 cm) |
| Shipping Dimensions | 31.25" x 16.25" x 9" (793.8 x 412.8 x 228.6 mm) |
| Shipping Weight | 28 lbs (12.7 kg) |
| Wall Stud Compatibility | Metal Studs, LCM3X3U and 24" (610mm) |
| Weight Capacity | 75 lbs (34 kg) |
| Width | 26 in (66 cm) |
All other specifications 13
| Adjustability | Extension, Swivel, Tilt |
| Application | Wall |
| Color | Black |
| Number of Displays | 1 |
| Orientation | Landscape |
| Post-Installation Leveling Roll | Yes |
| Solution Type | Universal |
| Special Features | Metal Stud |
| TAA Compliant | Yes |
| Tilt | +15° / -15° |
| UPC | 841872103938 |
| VESA Mounting Pattern | 100 x 100mm, 200 x 100mm, 200 x 200mm |
| Certifications | TAA |
Resources
You'll need these with it
J-Series Medium Interface Brackets-JSB210B
JSB210B$61.60
J-Series Arm Extension Kit - MAC1003B
MAC1003B$74.40
J-Series Arm Extension Kit - MAC1003S
MAC1003S$74.40
J-Series Universal Interface Bracket - JSBUB
JSBUB$61.60
Custom Interface Bracket for Cisco EX90
JSB2090B$312.80
J-Series VESA Interface Bracket - JSBVB
JSBVB$61.60
J-Series Universal Interface Bracket - JSBUS
JSBUSDiscontinued
J-Series VESA Interface Bracket - JSBVS
JSBVSDiscontinued
J-Series Medium Interface Brackets-JSB210S
JSB210SDiscontinued
Verified fitment
Questions about this part
Will the JWDSKVB fit my display?
The mount is verified against 5,129 display models from 176 manufacturers, including the LG 26CS460, Samsung 243T, Sony BVMF250A, and Panasonic BTLH2550. It supports VESA patterns of 100 x 100mm, 200 x 100mm, and 200 x 200mm.
What do I need to buy to complete this installation?
This mount requires an interface bracket to function. Compatible options include the J-Series Medium Interface Brackets (JSB210B or JSB210S), the J-Series Universal Interface Bracket (JSBUS or JSBUB), or a J-Series VESA Interface Bracket (JSBVS or JSBVB).
What is the required wall stud spacing for this mount?
This specific SKU is designed to mount to steel studs spaced at 16, 20, or 24 inches on-center, including compatibility with LCM3X3U profiles.
How much weight can I safely mount?
The JWDSKVB has a maximum weight capacity of 75 lbs (34 kg) for a single display.
How much can I tilt the display?
The mount offers tilt adjustability in a range of +15° to -15° to help manage glare or viewing angles.
