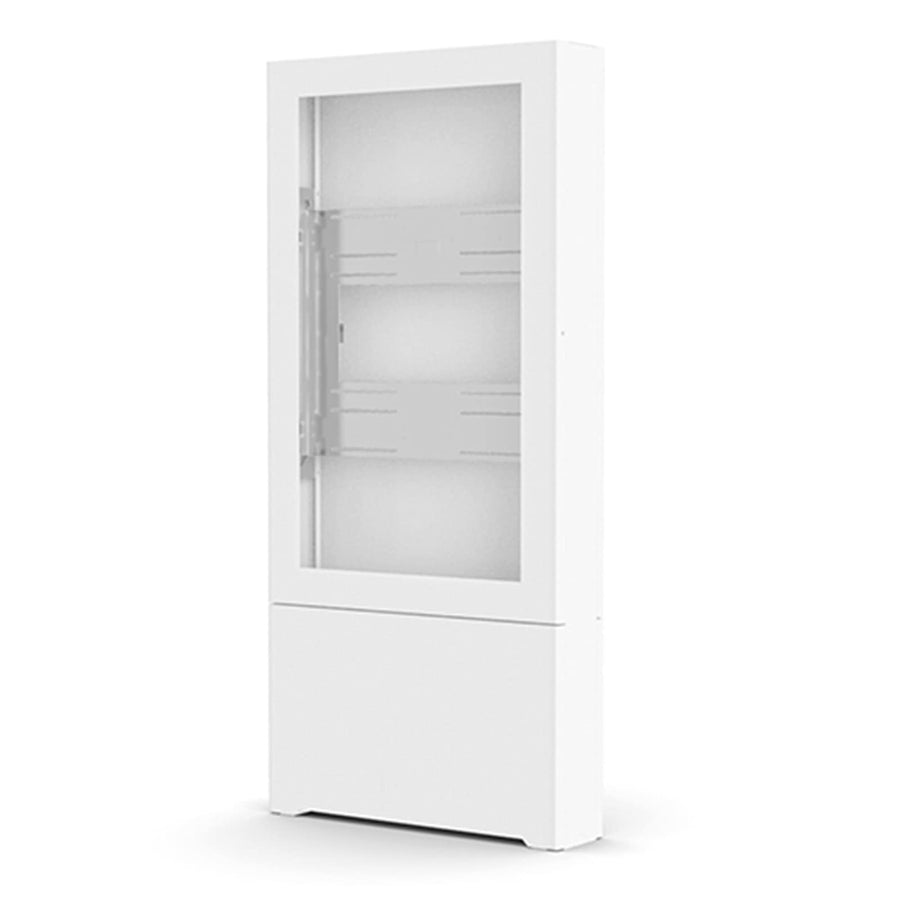

Impact™ Floor Mounted Kiosk, Portrait 55" White
White floor-mounted portrait kiosk for 55" displays with 125 lbs capacity and integrated security
The Chief LF55UWP is a portrait-oriented floor-mounted kiosk designed to provide a clean, professional aesthetic for displays in high-traffic open areas. This Impact™ Series kiosk features a white finish and is built with no exposed fasteners, maintaining a streamlined appearance. For security, the unit utilizes a keyed locking system to protect the display and internal components. The enclosure is designed for full serviceability, allowing installers to access and maintain the hardware even when the display is mounted to the frame. The kiosk includes a universal AV storage space and internal knockouts to facilitate the integration of 2RU rack spaces and electrical junction boxes. External cable pathway knockouts and integrated passive cooling help manage heat and connectivity. This TAA compliant and UL Listed solution is engineered for durability in public spaces while providing easy, tool-free access to removable storage panels for supporting equipment.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 8.5 in (21.6 cm) |
| Height | 77.1 in (195.8 cm) |
| Max Equipment Size | 51" x 30" x 3.5” (1295 x 762 x 89 mm) |
| Maximum Screen Thickness | 3.5 in (88.9 mm) |
| Overall Dimensions | 77.1" x 35.1" x 8.5” (1958 x 891 x 216 mm) |
| Shipping Weight | 225 lbs (102.1 kg) |
| Typical Screen Size | 55" (1397mm) |
| Weight Capacity | 125 lbs (56.7 kg) |
All other specifications 14
| Width | 35.1 in (89.2 cm) |
| Accessory Type | Metal StudMounting BracketsProtective CoversRack RailsThermal Management |
| Adjustability | Fixed |
| Application | FloorFloor-Cart |
| Color | White |
| Number of Displays | 1 |
| Orientation | Portrait |
| Protective Glass | No |
| Solution Type | Universal |
| Special Features | Closure DoorSecurity |
| TAA Compliant | Yes |
| UPC | 841872173887 |
| VESA Mounting Pattern | 300 x 300mm - 600 x 600mm |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Verified fitment
Questions about this part
Will this kiosk fit my display?
The LF55UWP is verified against 1,856 display models from 30 manufacturers, including the Samsung 55QN7**C, Sony 55BZ30P, and LG 55AM960H.
What is the weight capacity for the LF55UWP?
This kiosk supports a weight capacity of 125 lbs (56.7 kg) for a single display.
What internal space is available for mounting equipment?
The kiosk includes a universal AV storage space and internal knockouts that accommodate 2RU rack spaces and electrical junction boxes.
How do I access the internal components for maintenance?
The design allows for front serviceability and maintenance access, keeping the display mounted to the frame while the enclosure is opened.
What is the VESA mounting pattern for this model?
This kiosk supports VESA mounting patterns ranging from 300 x 300mm to 600 x 600mm.
