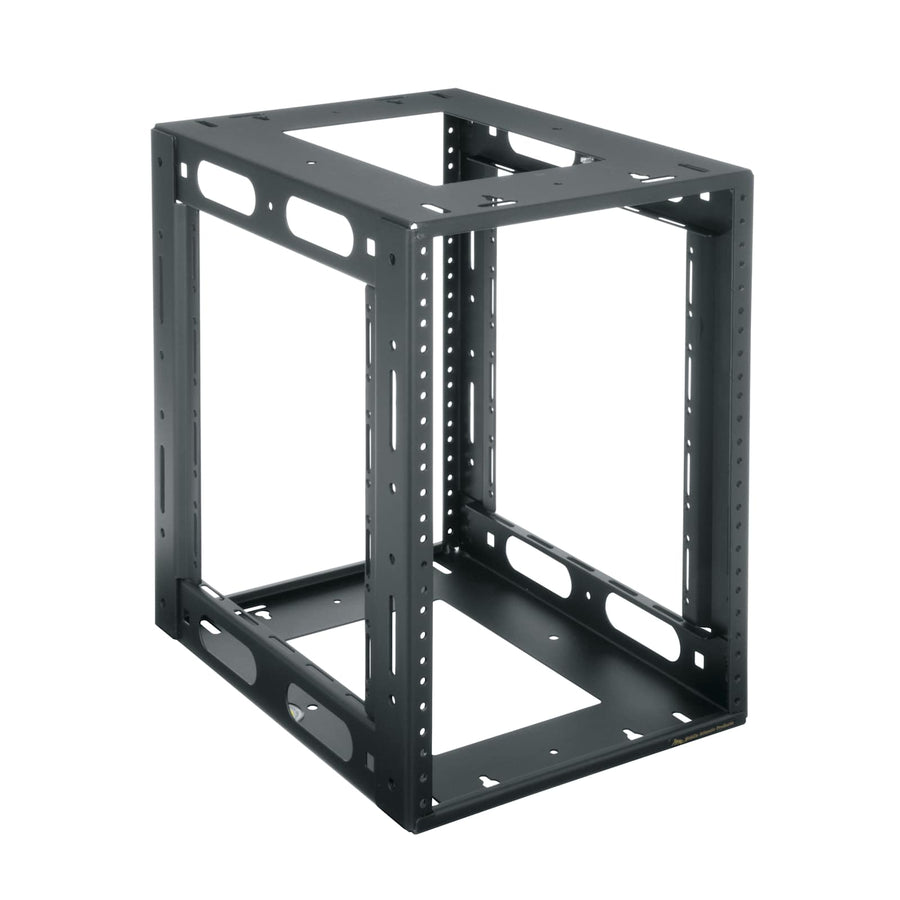

HRF Series Rack - HRF-814
8 RU half rack system for half-rack equipment, 125 lbs capacity, with 10-32 threaded rackrails
The HRF-814 is an 8 RU half rack system designed to accommodate half rack equipment from a variety of manufacturers. This Middle Atlantic solution features a low profile design to maximize usable rackspace in confined areas. To maintain a slim 10-5/8” width, the unit utilizes an offset cable tie area. The construction consists of strong welded steel with fixed front and rear 10-32 threaded rackrails. For cable management, the interior includes abundant lacing points to organize connections. This TAA compliant chassis provides a 14 in (35.6 cm) usable depth and is UL listed for professional installations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 14 in (35.6 cm) |
| Height | 14.94 in (38 cm) |
| Panel Width | 10.63 in (27 cm) |
| Rack Units | 8 RU |
| Usable Depth | 14 in (35.6 cm) |
| Usable Height | 14 in (35.6 cm) |
| Weight Capacity | 125 lbs (56.7 kg) |
| Width | 10.65 in (27.1 cm) |
All other specifications 5
| Federal Ops Country of Origin | Mexico |
| Rack Rail Type | 10-32 |
| TAA Compliant | Yes |
| UPC | 656747185809 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
PD Slim High Density Vertical Power Strip, 7 Outlet, 15A
PD-715SC-NS$210.60
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30

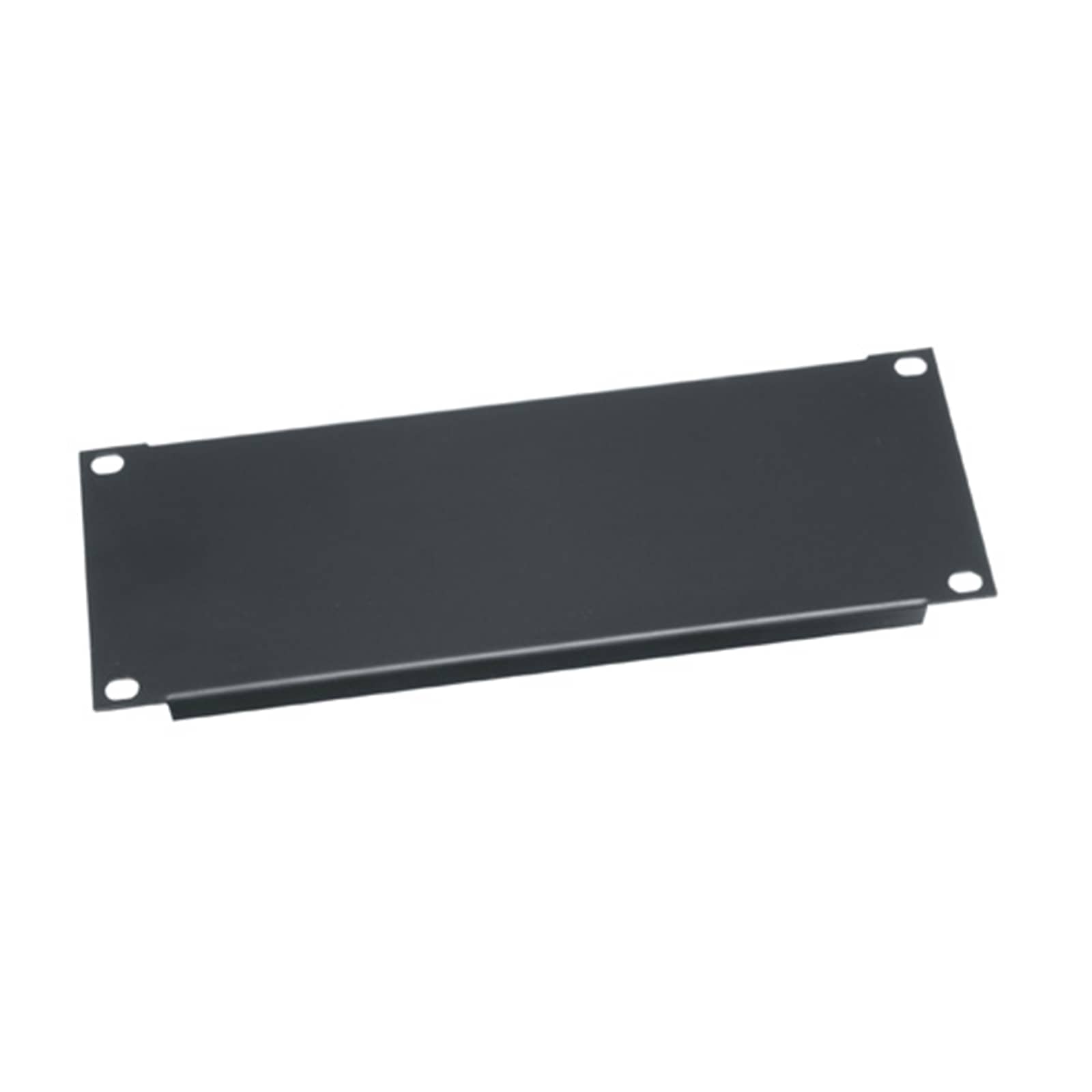

1 RU Flat Half-Rack (10" Wide) Blank Panel, Flat Blank Rack Panel, Black Brushed and Anodized Aluminum
HRBL1$23.40
Select Series PDU with RackLink™, 4 Outlet
RLNK-415R$549.90

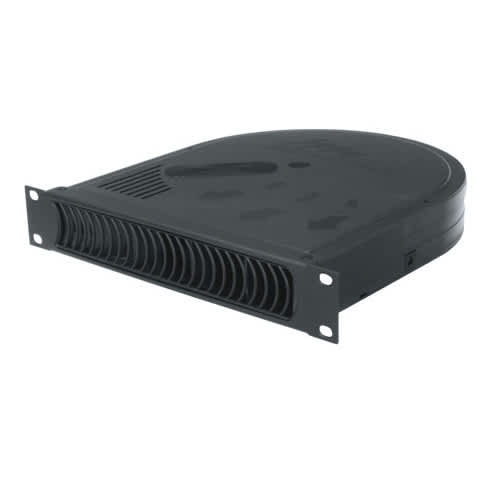

1 RU 10 Inch Blower Panel, 50 CFM, 32dB
HR-QBP-1$403.20

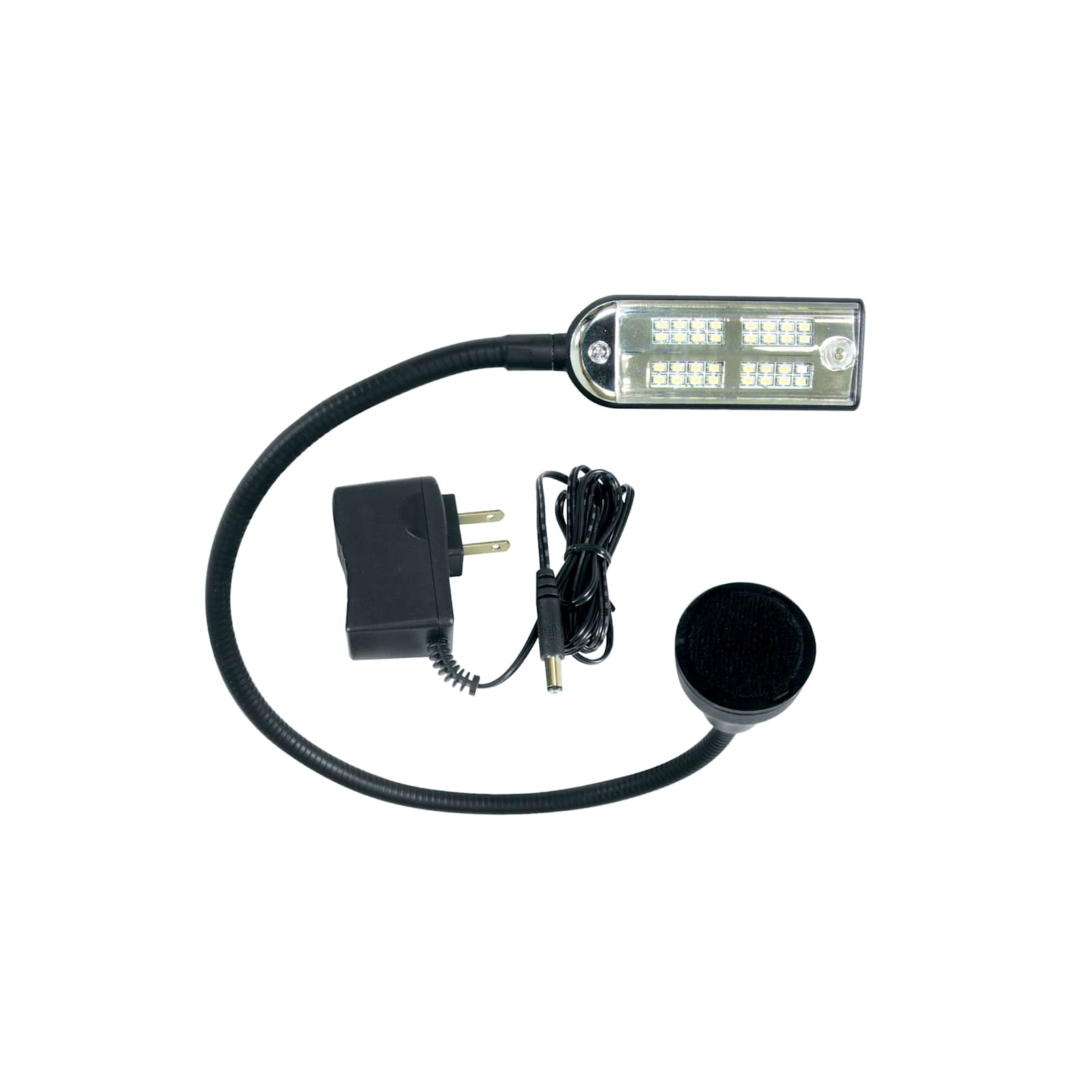

Magnetic Gooseneck Light
LT-GN-WL$189.00
10-32 Rackscrew Truss-Head - 100 Piece
HP$41.40
10-32 Rackscrew Black Matte - 500 Piece
HM500$369.90
10-32 Rackscrew 3/8 Inch Long - 100 Piece
HPQ$41.40
10-32 Rackscrew Black Matte - 100 Piece
HM$96.30
HTX Rackscrews Star Post Drive Bit
TBIT$25.20
Questions about this part
What equipment can I install in the HRF-814?
The HRF-814 is designed to accommodate half rack equipment from many different manufacturers. You can use various accessories like the HR-UMS1-11-5 shelf or HR-QBP-1 blower panel to customize the setup.
What accessories are compatible with this half rack?
You can add power and cable management items such as the PD-715SC-NS vertical power strip or the RLNK-215 Select Series PDU. Blanking panels like the HRBL1 are also available for unused RU spaces.
What is the usable depth of this rack?
The HRF-814 provides a 14 in (35.6 cm) usable depth and a total depth of 14 in (35.6 cm).
Does this rack require specific hardware for mounting?
The rack rails use a standard 10-32 thread type. You will need 10-32 rackscrews, such as the HP or HM series, to mount your equipment into the rails.
How does this differ from other HRF series models?
The HRF-814 is a specific 8 RU configuration within the HRF Series. Other models in this series provide different rack unit counts to meet specific space requirements.
