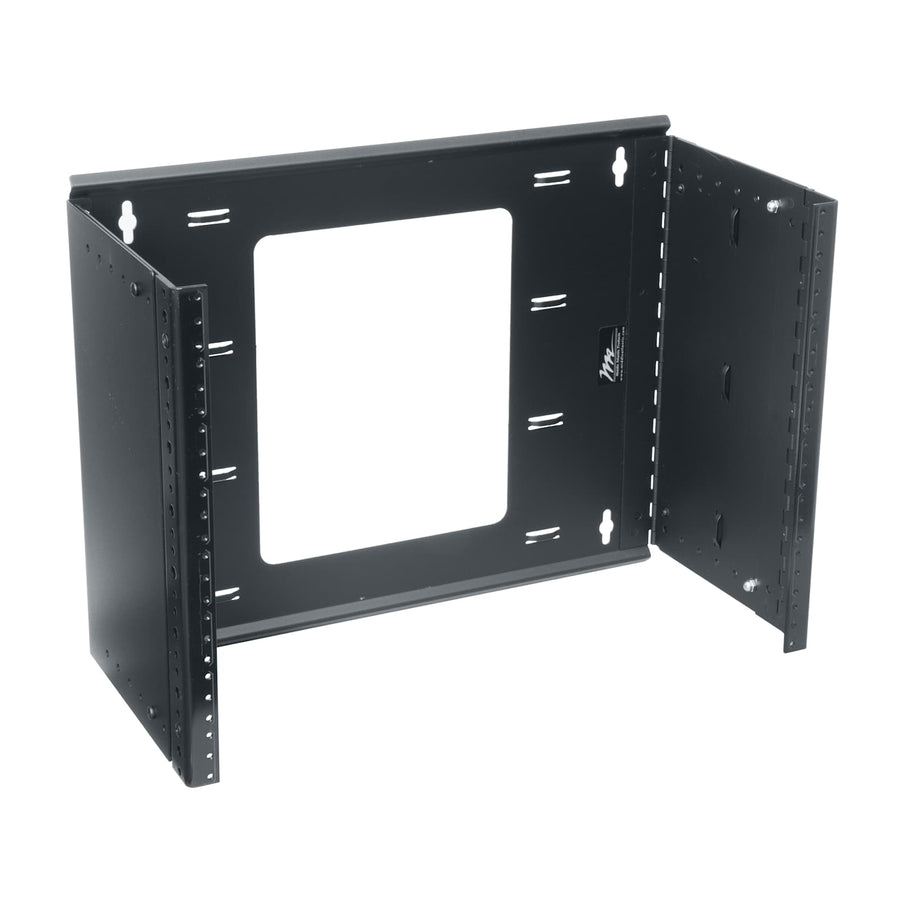

HPM Series Hinged Panel Mount Rack - HPM-6-915
6 RU hinged panel mount rack with 15 in usable depth and TAA compliance for rear-access component mounting
The Middle Atlantic HPM-6-915 provides a secure method for wall mounting components or integrating them into any 19” open frame rack. This 6 RU steel rack features a hinged design that allows for easy rear access to mounted equipment, which is essential for servicing or cabling once installed. The unit offers an adjustable usable depth of 15 in (38.1 cm), making it able to accommodate various components ranging from 9" to 15" in depth. The steel construction includes standard 10-32 threaded rackrails for secure attachment. For installation flexibility, the universal keyhole mounting allows for either a left or right swing depending on your site requirements. This TAA compliant enclosure is suitable for professional environments requiring reliable, space-efficient rack mounting solutions.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 15 in (38.1 cm) |
| Height | 10.5 in (26.7 cm) |
| Panel Width | 19 in (48.3 cm) |
| Rack Units | 6 RU |
| Shipping Weight | 14 lbs (6.4 kg) |
| Usable Depth | 15 in (38.1 cm) |
| Usable Height | 10.5 in (26.7 cm) |
| Weight Capacity | 20 lbs (9.07 kg) |
All other specifications 8
| Width | 19.61 in (49.8 cm) |
| Available Internationally | No |
| Federal Ops Country of Origin | Mexico |
| Material | Steel |
| Rack Rail Type | 10-32 |
| TAA Compliant | Yes |
| UPC | 656747115585 |
| Certifications | TAA |
Resources
You'll need these with it
3 RU Rack Vent Panel, Slotted with 20% Open Area
VTP-3$69.30
2 RU Rack Vent Panel, Slotted with 20% Open Area
VTP-2$50.40
3 RU Rack Vent Panel, Perforated with 25% Open Area - 6 Piece Contractor Pack
VTF3-CP6$211.50
3 RU Rack Vent Panel, Perforated with 25% Open Area
VTF3$40.50
1 RU Rack Vent Panel, Slotted with 20% Open Area
VTP-1$45.90
4 RU Rack Vent Panel, Perforated with 25% Open Area - 6 Piece Contractor Pack
VTF4-CP6$237.60
1 RU Rack Vent Panel, Perforated with 25% Open Area - 12 Piece Contractor Pack
VTF1-CP12$280.80
1 RU Rack Vent Panel, Perforated with 25% Open Area
VTF1$27.90

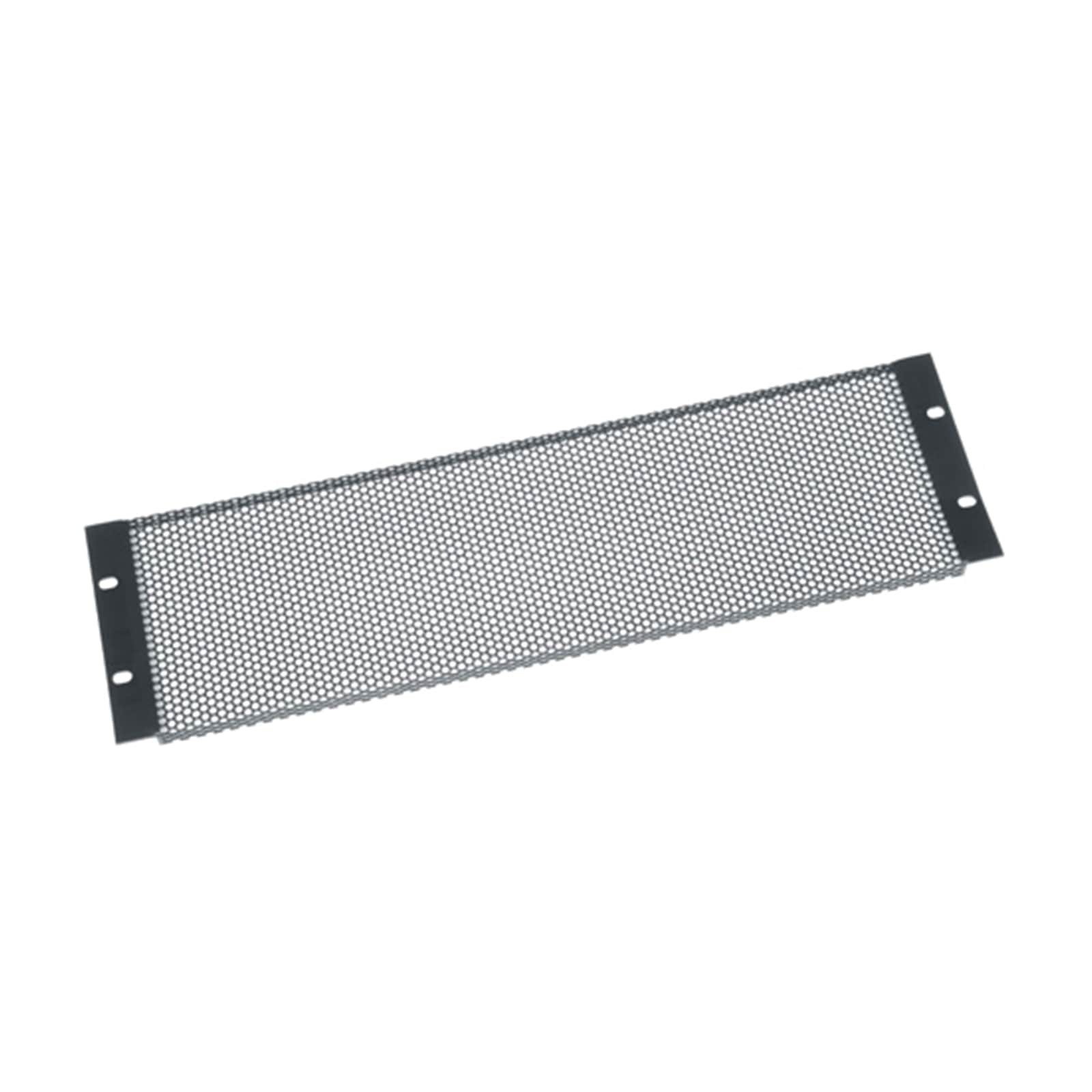

3 RU Rack Vent Panel, Perforated with 64% Open Area
VT3$40.50

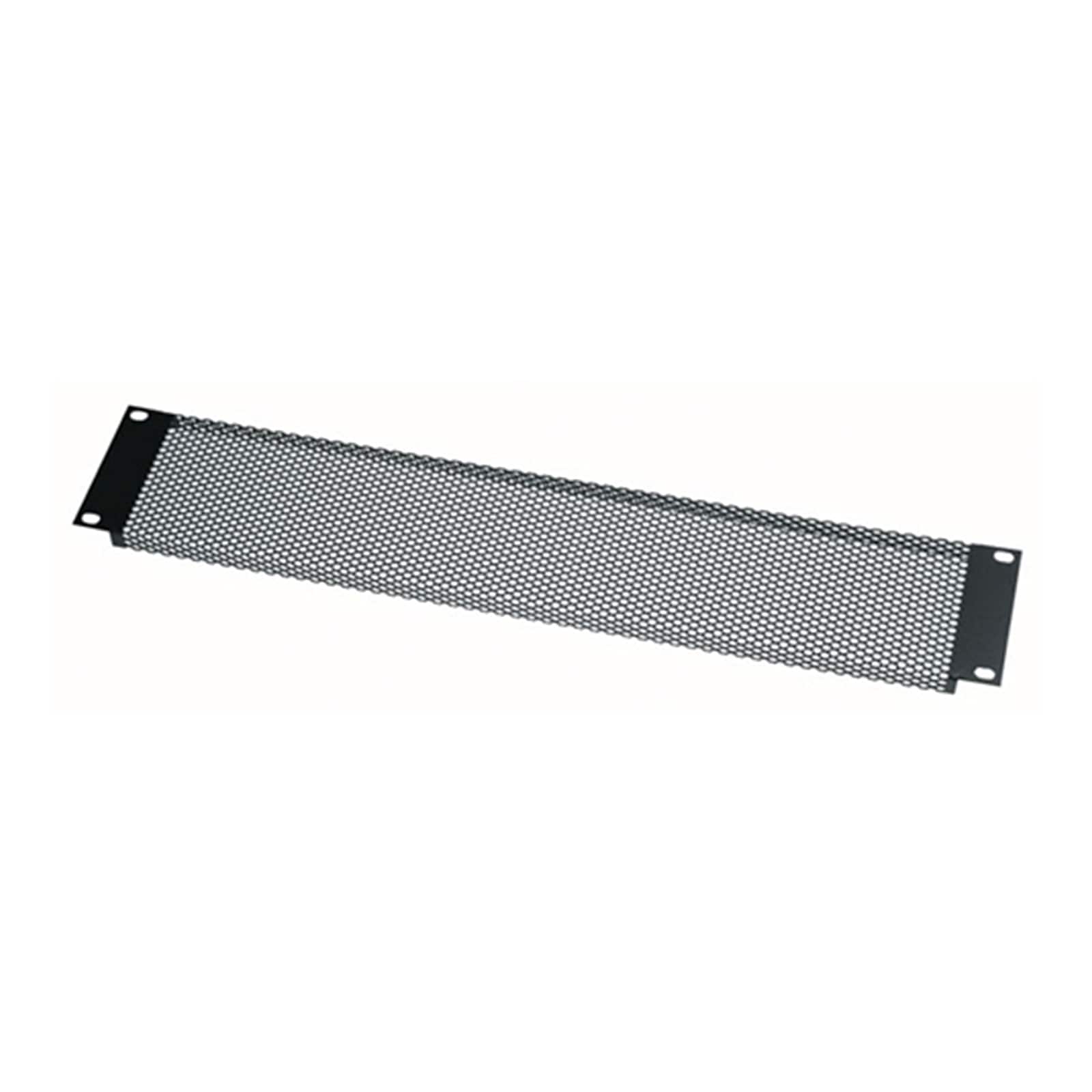

2 RU Rack Vent Panel, Perforated with 64% Open Area - 12 Piece Contractor Pack
VT2-CP12$352.80
1 RU Mounting Rackshelf - 50 Piece
UTR1MP$2,194.20
1 RU Utility Panel, 10 Piece
UP1P$190.80
Questions about this part
Will the HPM-6-915 fit my 6 RU equipment?
Yes, this 6 RU rack is designed to accommodate components with a depth between 9" and 15" (228.6–381 mm).
How do I access the back of my equipment once it is mounted?
The HPM-6-915 is hinged, allowing the panel to swing open to provide direct rear access to your mounted components.
Can I choose which direction the rack swings?
Yes, the universal keyhole mounting system allows you to set the rack for either a left or right swing during installation.
Is the HPM-6-915 suitable for government contracts?
Yes, this model is TAA Compliant, making it suitable for projects with TAA requirements.
What do I need to install this rack?
The unit includes rack screws for mounting your components, and you will need a screwdriver to complete the installation.
