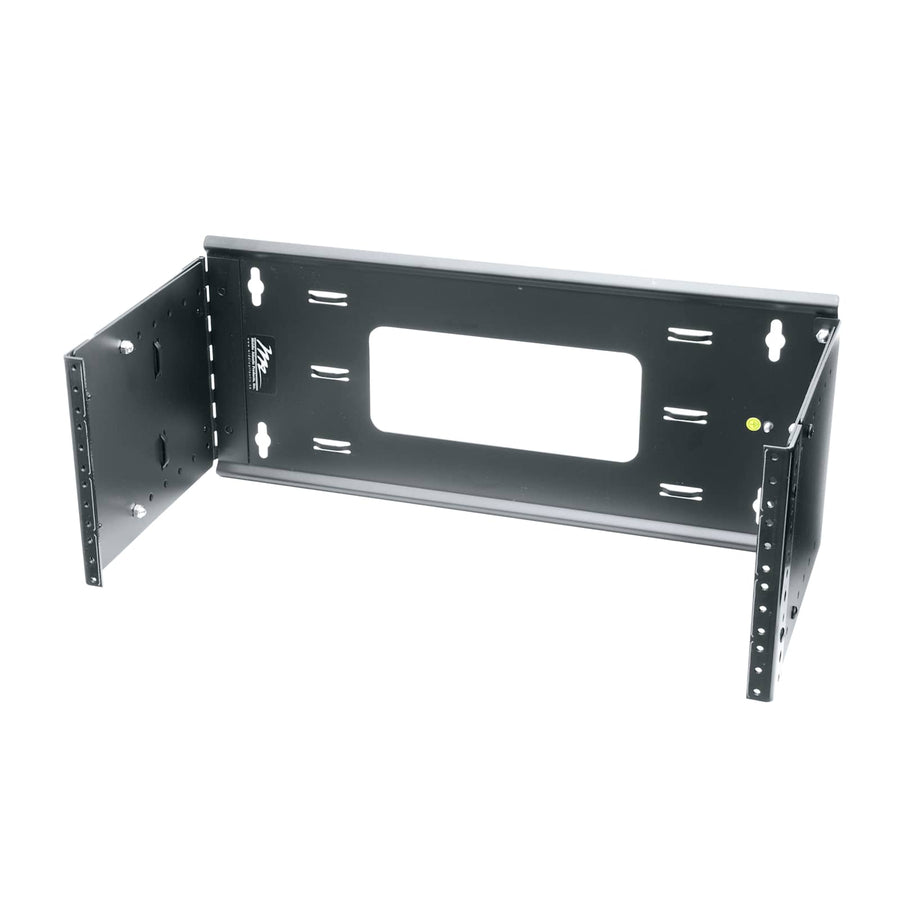

HPM Series Hinged Panel Mount Rack - HPM-4-915
4 RU hinged steel wall mount rack with 15 in (38.1 cm) usable depth and TAA compliance
The Middle Atlantic HPM-4-915 is a 4 RU hinged panel mount rack designed to provide secure wall mounting for components or integration into any 19-inch open frame rack. Constructed from rugged steel, this unit features a 19 in (48.3 cm) panel width and a 19.61 in (49.8 cm) total width. It offers a usable depth of 15 in (38.1 cm) and an adjustable depth range that accommodates components with a depth of 9" to 15". The hinged design allows for easy rear access to mounted equipment, which is essential for servicing connections or cabling. This SKU features universal keyhole mounting, allowing the installer to configure a left or right swing depending on the site requirements. The integrated 10-32 threaded rackrails provide a standard interface for mounting hardware. This TAA-compliant rack is manufactured in Mexico and supports a weight capacity of 15 lbs (6.8 kg).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 15 in (38.1 cm) |
| Height | 7 in (17.8 cm) |
| Panel Width | 19 in (48.3 cm) |
| Rack Units | 4 RU |
| Shipping Weight | 9.8 lbs (4.5 kg) |
| Usable Depth | 15 in (38.1 cm) |
| Usable Height | 7 in (17.8 cm) |
| Weight Capacity | 15 lbs (6.8 kg) |
All other specifications 8
| Width | 19.61 in (49.8 cm) |
| Available Internationally | No |
| Federal Ops Country of Origin | Mexico |
| Material | Steel |
| Rack Rail Type | 10-32 |
| TAA Compliant | Yes |
| UPC | 656747115578 |
| Certifications | TAA |
Resources
You'll need these with it
4 RU Flanged Blank Rack Panel, Wrinkled
WSB4$41.40
3 RU Flanged Blank Rack Panel, Wrinkled
WSB3$40.50
4 RU Rack Vent Panel, Perforated with 25% Open Area
VTF4$43.20
3 RU Rack Vent Panel, Perforated with 25% Open Area - 6 Piece Contractor Pack
VTF3-CP6$211.50
3 RU Rack Vent Panel, Slotted with 20% Open Area
VTP-3$69.30
2 RU Rack Vent Panel, Slotted with 20% Open Area
VTP-2$50.40
2 RU Flanged Blank Rack Panel, Wrinkled
WSB2$34.20
1 RU Flanged Blank Rack Panel, Wrinkled
WSB1$24.30
1 RU Rack Vent Panel, Slotted with 20% Open Area
VTP-1$45.90
4 RU Rack Vent Panel, Perforated with 25% Open Area - 6 Piece Contractor Pack
VTF4-CP6$237.60
2 RU Rack Vent Panel, Light Blocking with 64% Open Area
VTB-2$63.00
1 RU Rack Vent Panel, Light Blocking with 64% Open Area
VTB-1$42.30
Questions about this part
How deep can I mount my equipment in the HPM-4-915?
The HPM-4-915 has an adjustable depth that accommodates equipment ranging from 9" to 15" deep.
Can I mount this rack in a standard 19-inch open frame rack?
Yes, this unit can be mounted in any 19-inch open frame rack or used for direct wall mounting via the keyhole mounting system.
What is the weight capacity of this 4 RU rack?
The HPM-4-915 is rated for a weight capacity of 15 lbs (6.8 kg).
What mounting hardware is included with the rack?
This unit includes the necessary rack screws and hook and loop fasteners for installation.
Is there a technical drawing available for submittals?
Yes, CAD technical specification drawings in .dwg format are available for this HPM series mount.
