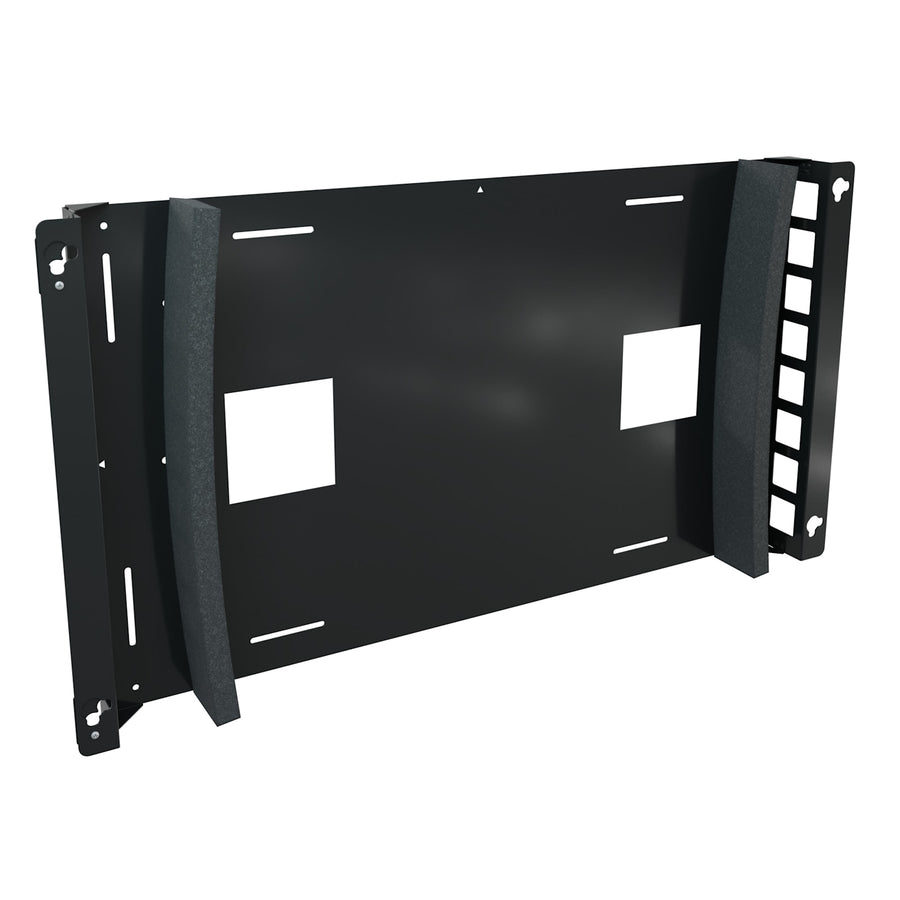

Heavy-Duty Custom Outdoor Mount for Samsung Outdoor 46" Display
Custom heavy-duty outdoor mount for Samsung 46" displays, featuring a 150 lbs capacity and fixed landscape or portrait orientation
The PSMO2169 is a heavy-duty custom outdoor mount specifically engineered for Samsung outdoor displays. This rigid, fixed wall mount is designed to provide stable support in outdoor environments. It has undergone Samsung review to ensure compliance with thermal guidelines when used with OH46F or OH46B displays. This mount supports both landscape and portrait orientations to accommodate specific installation requirements. The system features a VESA mounting pattern of 995 x 500mm and a weight capacity of 150 lbs (68 kg). Because this is a fixed mount, it does not offer adjustability once installed, providing a secure and stationary position for the display. This TAA compliant mounting solution is built for high-reliability outdoor applications where specific Samsung display fitment is required.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Overall Dimensions | 23.5” x 41.47” x 3.82” (597 x 1053 x 97 mm) |
| Shipping Weight | 31.3 lbs (14.2 kg) |
| Weight Capacity | 150 lbs (68 kg) |
| Adjustability | Fixed |
| Color | Black |
| Orientation | LandscapePortrait |
| Special Features | Outdoor Use |
| TAA Compliant | Yes |
| UPC | 841872177397 |
| VESA Mounting Pattern | 995 x 500mm |
Resources
Verified fitment
Questions about this part
Will the PSMO2169 fit my Samsung outdoor display?
The PSMO2169 is verified for use with Samsung OH46B, OH46F, and OM46FW models, meeting specific Samsung thermal guidelines.
Can this mount be installed in portrait mode?
Yes, the PSMO2169 supports both landscape and portrait orientations for versatile outdoor installations.
Does this mount allow for tilting or leveling?
No, the PSMO2169 is a fixed mount with no adjustability features once it is secured to the wall.
What is the maximum weight this outdoor mount can support?
This heavy-duty mount has a rated weight capacity of 150 lbs (68 kg).
Which documents are available for submittals?
Installers can access the PSMO2169 Technical Drawing, CAD Drawing, and the Installation Manual in the Resources tab.
