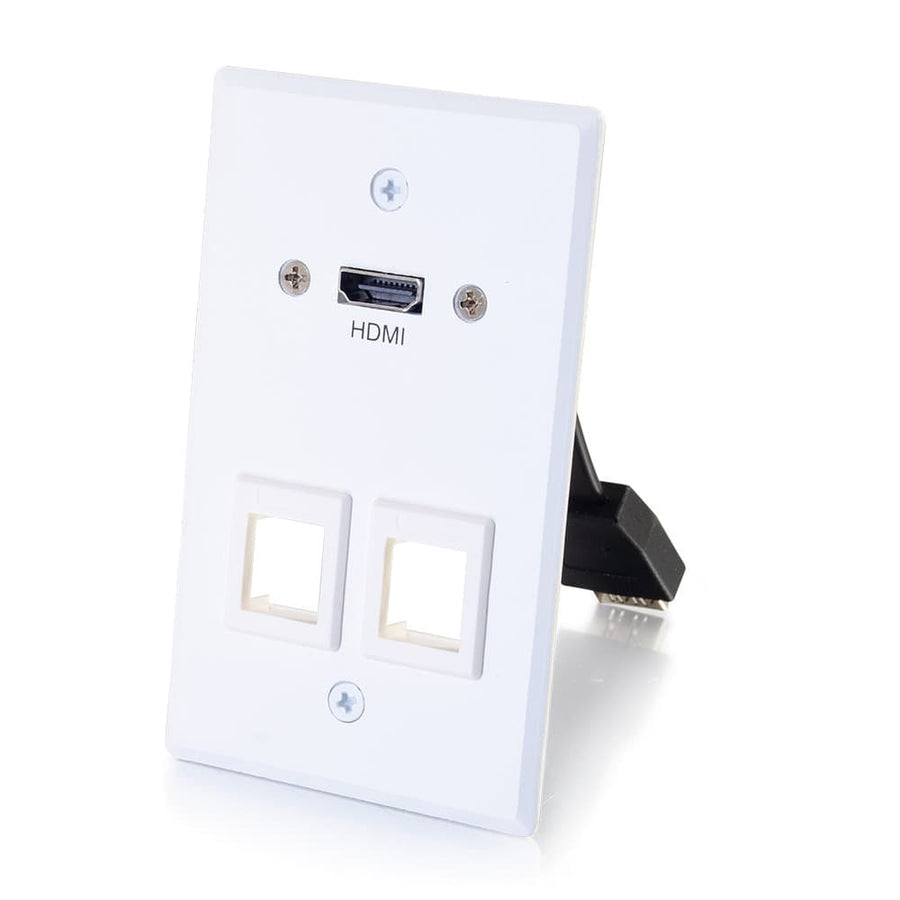

HDMI® Pass Through Single Gang Wall Plate with Two Keystones - White
White single gang wall plate with two HDMI female connectors and flexible pigtails for easy in-wall installation
The C2G CG60161 is a white HDMI pass through wall plate designed to facilitate clean connectivity for installations where source devices like Blu-ray players must connect to projectors via in-wall cabling. This single gang plate is constructed from durable aluminum and features two HDMI female connectors. To simplify the installation process inside a standard single gang wall box, these connectors utilize a flexible HDMI pigtail, which provides significantly more working room than traditional, rigid wall plates that require standard HDMI cables for connection. This unit includes two keystone openings, allowing installers to integrate the plate into existing network or telephony cable infrastructure by adding compatible keystone jacks. The plate supports HDMI audio/video signals with a data transfer rate of 18 GBPS and is capable of handling video resolutions of 1080p and 4K.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Bend Radius | 3.54 in (90 mm) |
| Operating Humidity Max | 80% RH (Non-Condensing) |
| Operating Humidity Min | 20% RH (Non-Condensing) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shipping Weight | 0.25 lbs (0.1 kg) |
| Storage Humidity Max | 80% RH (Non-Condensing) |
| Storage Humidity Min | 20% RH (Non-Condensing) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
All other specifications 13
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Color | White |
| Connector 1 | (1) HDMI Female |
| Connector 2 | (1) HDMI Female |
| Product Type | KeystoneWall Plate |
| TAA Compliant | No |
| UPC | 757120601616 |
| Video Input Support | HDMI |
| Video Output Support | HDMI |
| Video Resolution | 1080p4K |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 18 GBPS |
| Warranty | Lifetime |
You'll need these with it
6ft (1.8m) Performance Series Ultra Flexible High Speed HDMI® Cable with Ethernet
C2G10377$26.99
35ft (10.7m) Plus Series Active High Speed HDMI® Cable with Ethernet
CG41414$143.99
Cat6 RJ45 UTP Keystone Jack - White
CG29311$9.99
3ft (0.9m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Black
CG00725$11.99
Cat6 QuickConnect RJ45 Keystone Insert in White - 50 Pack
WP3476WH50$269.99
1ft (0.3m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Blue
CG00791$8.99
6ft (1.8m) Core Series High Speed HDMI® Cable with Ethernet
CG56783$15.99
Questions about this part
Will the CG60161 work with 4K displays?
Yes, this wall plate is designed to support video resolutions of both 1080p and 4K.
What type of box is required for installation?
The CG60161 is designed to be installed in a standard single gang wall box.
Can I use this to add ethernet ports to my existing wall plate setup?
Yes, the two keystone openings allow you to integrate network or telephony infrastructure, such as the CG29311 Cat6 RJ45 UTP Keystone Jack.
How does the pigtail design help during installation?
The flexible HDMI pigtails provide extra space inside the wall box, making it easier to connect cables compared to plates that require standard, rigid HDMI cables.
What is the bend radius for the cables?
The product is rated for a bend radius of 3.54 in (90 mm).
