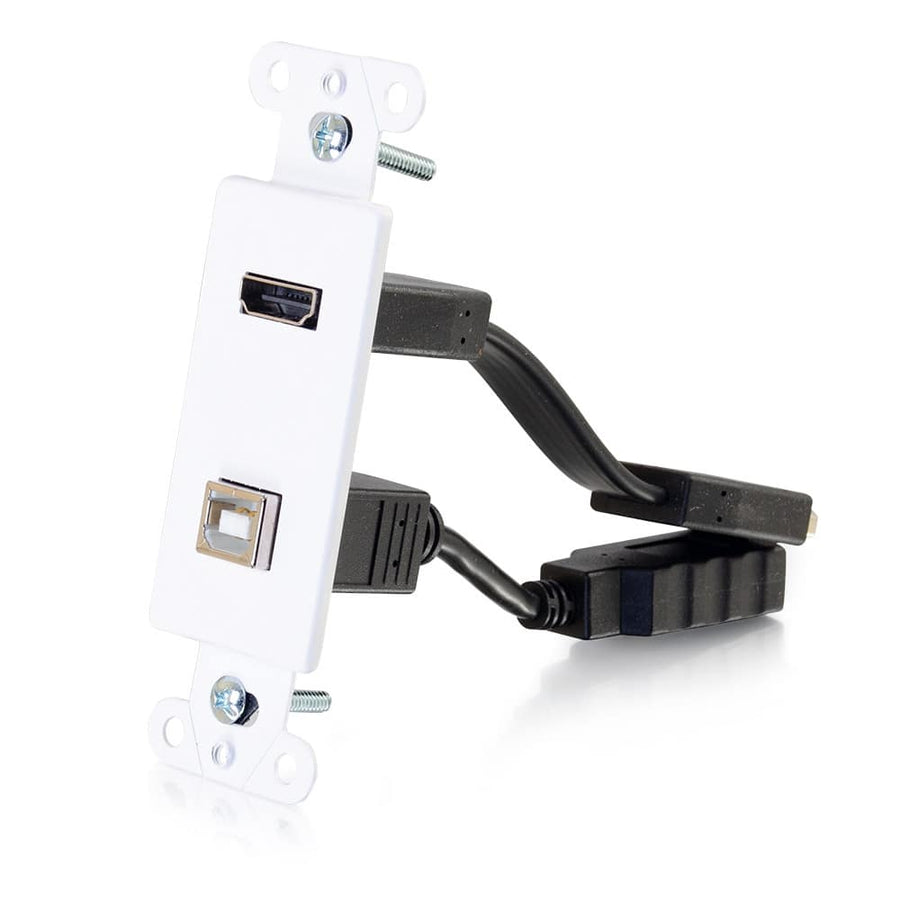

HDMI and USB Pass Through Wall Plate - White
White pass-through wall plate for HDMI and USB, supporting 4K video resolution and up to 5m passive USB extension
The C2G CG39702 is an HDMI and USB pass-through wall plate designed to facilitate the transition from in-wall cabling to surface-mounted device connections. This white wall plate is constructed from aircraft-grade aluminum to ensure long-term durability in professional installations. The HDMI pass-through feature utilizes a thin, flexible HDMI pigtail, which is specifically engineered to accommodate the tight bend radius required when working within a standard junction box. For USB connectivity, this plate supports passive extensions for a total cable length of up to 5m. For installations requiring longer distances, the USB pass-through is compatible with active USB extension solutions. This plate is rated for 4K video resolution and operates within a temperature range of -4°F to 176°F (-20°C to 80°C). It is compliant with RoHS, REACH, TSCA, and NDAA 889 standards.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Cable Length | 4.33 in (11 cm) |
| Operating Humidity Max | 80% RH (Non-Condensing) |
| Operating Humidity Min | 20% RH (Non-Condensing) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shipping Weight | 0.2 lbs (0.1 kg) |
| Storage Humidity Max | 80% RH (Non-Condensing) |
| Storage Humidity Min | 20% RH (Non-Condensing) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
All other specifications 12
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Color | White |
| Connector 1 | (1) HDMI Female(1) USB-B Female |
| Connector 2 | (1) HDMI Female(1) USB-A Female |
| Product Type | Wall Plate |
| TAA Compliant | No |
| UPC | 757120397021 |
| Video Input Support | HDMI |
| Video Output Support | HDMI |
| Video Resolution | 1080p4K |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Warranty | Lifetime |
You'll need these with it
6ft (1.8m) Performance Series Ultra Flexible High Speed HDMI® Cable with Ethernet
C2G10377$26.99
35ft (10.7m) Plus Series Active High Speed HDMI® Cable with Ethernet
CG41414$143.99
9.8ft (3m) USB 2.0 A/B Cable - Black
CG28103$9.99
6.6ft (2m) USB 2.0 A/B Cable - Black
CG28102$8.99
6ft (1.8m) Core Series High Speed HDMI® Cable with Ethernet
CG56783$15.99
Questions about this part
Will this CG39702 wall plate work with 4K displays?
Yes, the HDMI pass-through supports video resolutions up to 4K.
How long can the USB extension be with this plate?
You can use passive USB extensions for a total length of up to 5m, or utilize an active USB extension solution for longer distances.
What is required to complete the HDMI connection in the wall?
To complete the connection, you will need a high-speed HDMI cable, such as the C2G CG41414 active HDMI cable or the C2G CG56783 Core Series cable.
What USB cables are needed for the pass-through?
The plate requires a USB 2.0 A/B cable, such as the C2G CG28102 or CG28103, to connect your devices through the wall plate.
Can this be installed in a standard junction box?
Yes, the HDMI pigtail is designed with a flexible profile to fit within the restricted bend radius of a standard junction box.
