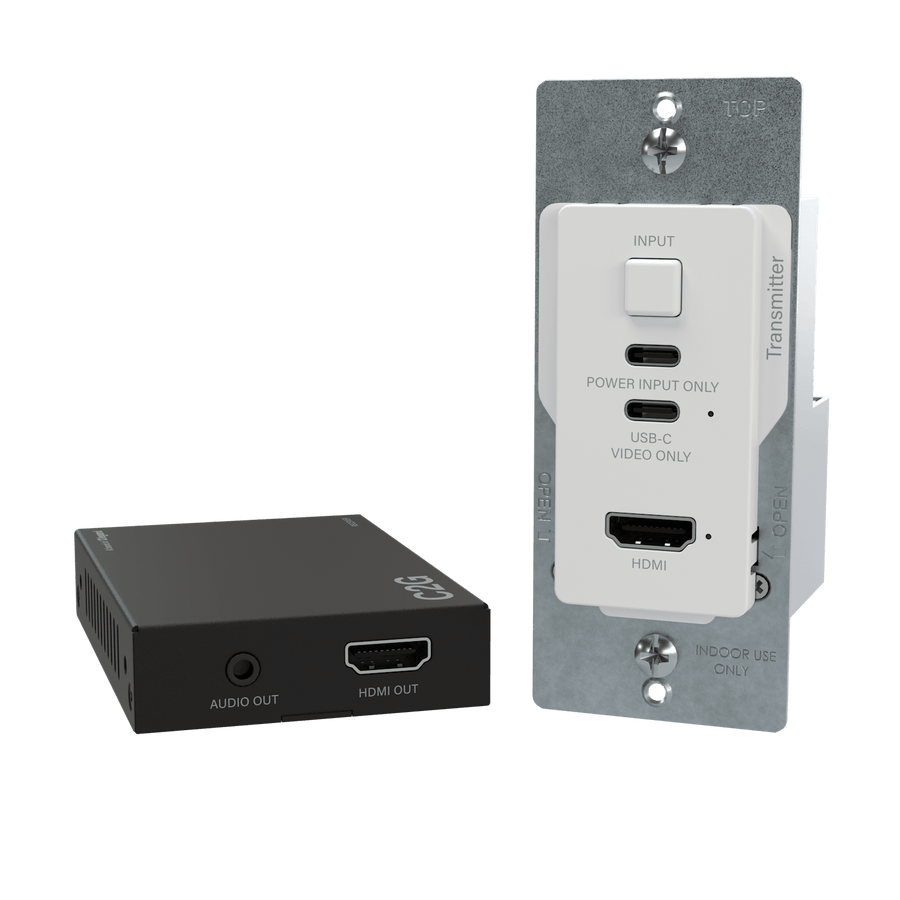

HDMI® and USB-C Video and Charging over Cat Extender Wall Plate Transmitter to Box Receiver - 4K 60Hz
HDMI and USB-C extender kit supporting 4K@60Hz video and laptop charging over a single Cat6 cable
The C2G30005 is an HDMI and USB-C video extender kit designed for professional environments like conference rooms and classrooms. This system utilizes a single-gang wall-plate transmitter and a compact box receiver to extend high-resolution signals over a single Cat6 cable. The kit supports 4K@60Hz 4:4:4 8-bit video at distances up to 75ft (23m) over Cat6, and provides 4K@30Hz 4:4:4 8-bit video up to 135ft (41.2 m). The wall-plate transmitter features one HDMI input, one USB-C video input supporting DP Alt-mode, and a USB-C charging port to power laptops via external chargers. For simplified installation, the system supports 24V Power over Cable (PoC), allowing the entire setup to be powered from the receiver end. The receiver includes one HDMI output for displays and a 3.5mm audio de-embedding output for connection to amplifiers or DSPs. This TAA compliant solution supports automatic or manual source switching using last-in, first-out logic and is fully HDCP 2.2 compliant.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Max Distance Support | 135 ft (41.2 m) |
| Operating Humidity Max | 75% RH |
| Operating Humidity Min | 0% RH |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Shipping Weight | 0.65 lbs (0.3 kg) |
| Storage Humidity Max | 75% RH |
| Storage Humidity Min | 0% RH |
| Storage Temperature Max | 284 Fahrenheit (140 Celsius) |
All other specifications 13
| Storage Temperature Min | 24.8 Fahrenheit (-4 Celsius) |
| Cable Type | ExtensionHDMI |
| Color | Black |
| Connector 1 | (1) HDMI Female(1) RJ-45 Female |
| Connector 2 | (1) HDMI Female(1) RJ-45 Female |
| Product Type | Active DeviceExtender |
| Signal Type | HDMI |
| TAA Compliant | Yes |
| UPC | 757120300052 |
| Video Resolution | 4K @ 60Hz |
| Certifications | CEFCCProp 65REACHRoHSTAA |
| Data Transfer Rate | 5 GBPS |
| Warranty | 5 years |
Resources
You'll need these with it
Questions about this part
What is the maximum distance for 4K video?
You can reach 135ft (41.2 m) for 4K@30Hz 4:4:4 8-bit video or 75ft (23m) for 4K@60Hz 4:4:4 8-bit video over Cat6 cabling.
Does the wall plate transmitter provide power to laptops?
Yes, the transmitter includes a USB-C charging port designed to power laptops when connected to an external charger.
Can I power the extender kit from the receiver end?
Yes, the system supports 24V Power over Cable (PoC), which allows you to power the entire transmitter/receiver pair from the receiver end.
What audio options are available on the receiver?
The receiver features a 3.5mm audio de-embedding output, which can be used to feed audio to amplifiers or DSPs.
What additional cables do I need for a USB-C installation?
For USB-C connectivity, you may need a C2G30005 compatible cable like the CG28848 3.3 ft (1m) USB-C 3.2 (Gen 2) Male to Male cable.
