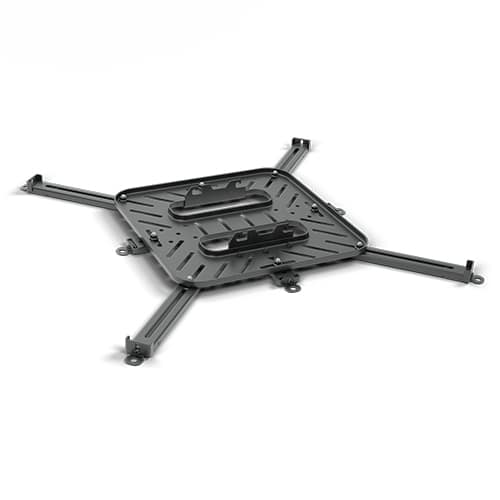

HC XL Interface
Universal interface plate for VCT series Large Venue Projector Mounts, accommodating most large-format projector attachment patterns
The Chief HCUB is an HC XL Interface designed to facilitate the installation of large-format laser projectors. This accessory is specifically intended for use with Chief VCT series Large Venue Projector Mounts. The universal plate is sized to accommodate the majority of attachment patterns found on large venue projectors. To provide versatility for different projector footprints, this interface includes both four short attachment legs and four long attachment legs. The short legs help reduce clutter when working with smaller installation patterns, while the long legs extend the reach required for larger, more expansive projector patterns. This UL Listed component provides a professional connection between the projector and the ceiling-mounted VCT series mount.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 20.88" x 19.02" x 2.56"(530.4 x 483.2 x 65.1 mm) |
| Shipping Weight | 15.57 lbs (7.1 kg) |
| Accessory Type | Interface Brackets |
| Application | Ceiling |
| Color | Black |
| Special Features | Large Venue |
| TAA Compliant | No |
| UPC | 841872172484 |
| Certifications | UL Listed |
Resources
Questions about this part
Will the HCUB work with my VCT series projector mount?
Yes, the HCUB is designed specifically to work with Chief VCT series Large Venue Projector Mounts.
What kind of projector patterns does this interface support?
The universal plate is sized to accommodate most patterns found on large venue laser projectors.
Does the HCUB include different leg lengths for different projectors?
Yes, it comes with both four short attachment legs and four long attachment legs to accommodate varying installation patterns.
What is the application for this interface bracket?
This is a ceiling application interface designed for large venue projector installations.
