Fusion® Video wall interface portrait adapter | Legrand AV Brands
Portrait orientation adapter for Fusion FMSIML video wall interfaces, supporting up to 800 mm VESA patterns and 125 lbs capacity

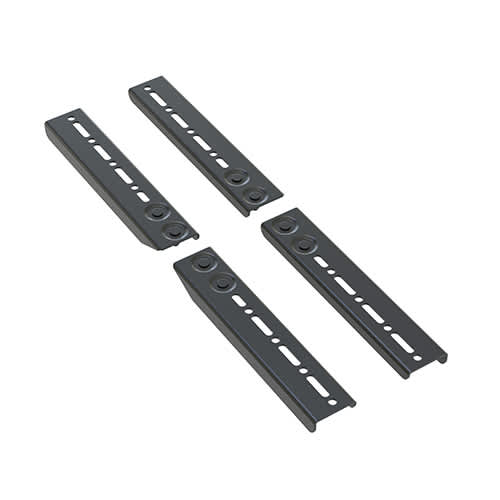

The Chief FMSIML-P is a specialized portrait adapter designed to adapt existing Fusion FMSIML video wall interfaces to support portrait mounting orientations. This accessory is specifically for use with the Fusion FMSIML series; it is not compatible with FMSITL interfaces. It allows installers to accommodate VESA mounting patterns with a maximum height of up to 800 mm. Once installed on-display, the adapter supports a weight capacity of 125 lbs (56.7 kg) per interface. The unit features both fixed and micro-adjustable settings to facilitate precise alignment during the video wall assembly. This TAA compliant adapter facilitates multi-display configurations in portrait mode for displays typically ranging from 42" to 65" (1067–1651 mm). The adapter measures 10.5" x 5.4" x 6.6" (267 x 137 x 168 mm) and provides lateral shift capabilities for fine-tuned positioning.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 6.6 in (16.8 cm) |
| Height | 10.5 in (26.7 cm) |
| Lateral Shift | Yes |
| Overall Dimensions | 10.5" x 5.4" x 6.6" (267mm x 137mm x 168mm) |
| Shipping Weight | 4.8 lbs (2.2 kg) |
| Typical Screen Size | 42" - 65" (1067mm - 1651mm) |
| Weight Capacity | 125 lbs (56.7 kg) |
| Width | 5.4 in (13.7 cm) |
All other specifications 9
| Accessory Type | Interface Brackets |
| Adjustability | Fixed, Micro-Adjustable |
| Application | On-Display |
| Color | Black |
| Orientation | Portrait |
| Special Features | ModularMulti-Display |
| TAA Compliant | Yes |
| UPC | 841872175843 |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Will the FMSIML-P work with my FMSITL interface?
No, the FMSIML-P is specifically designed to adapt Fusion FMSIML interfaces and is not compatible with the FMSITL series.
What is the maximum VESA pattern height this adapter supports?
This adapter accommodates portrait mounting patterns with a maximum height of 800 mm.
Can I adjust the alignment of the display once installed?
Yes, the adapter provides micro-adjustment capabilities and supports lateral shift for precise positioning.
What is the weight limit for the FMSIML-P?
The adapter has a rated weight capacity of 125 lbs (56.7 kg) per unit.
Which documents should I use for submittals or installation?
You can access the FMSIML-P Technical Drawing (PDF), Installation Manual (PDF), or the CAD Drawing (dwg) for your submittal requirements.
