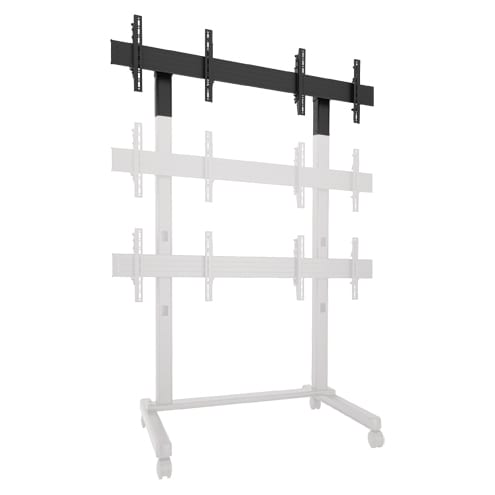

Fusion® LVM and LBM 2 x 1 Accessory
Fusion LVM and LBM 2 x 1 accessory for expanding video wall arrays with 40-65" displays
The Chief FCA2X1U is a Fusion® LVM and LBM 2 x 1 accessory designed to expand existing freestanding video wall setups. This component allows installers to add an extra row to an LVM2X2U or LBM2X2U base to create a 2 x 3 video wall configuration. It is built for landscape orientation and supports displays in the 40" - 65" (1016mm - 1651mm) range. For precision alignment during assembly, the unit includes 2 sets of interfaces. The system provides micro-adjustment capabilities for both height and plumb, allowing for up to 0.75" (19 mm) of adjustment per screen to ensure perfectly flush rows. This TAA compliant and UL Listed accessory is engineered for professional multi-display environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Manual Height Adjustment | Micro-adjustment up to 0.75" (19 mm) per screen |
| Plumb Adjustment | Micro-adjustment up to 0.75" (19 mm) |
| Shipping Dimensions | 74" x 15.5" x 11" (187.9 x 39.4 x 27.9 cm) |
| Shipping Weight | 52 lbs (23.6 kg) |
| Typical Screen Size | 40'' - 65" (1016mm - 1651mm) |
| Weight Capacity | 100 lbs (45.4 kg) |
| Accessory Type | Multi-Display |
| Array Configuration | 2x1 |
All other specifications 6
| Color | Black |
| Orientation | Landscape |
| Solution Type | Universal |
| TAA Compliant | Yes |
| UPC | 841872155470 |
| Certifications | TAAUL Listed |
Resources
Questions about this part
Will the FCA2X1U work with my LVM2X2U or LBM2X2U setup?
Yes, this accessory is specifically designed to add an extra row to an LVM2X2U or LBM2X2U to create a 2 x 3 video wall configuration.
What size displays are compatible with the FCA2X1U?
This accessory is intended for displays in the 40" - 65" (1016mm - 1651mm) size range in a landscape orientation.
How is screen alignment handled during installation?
The FCA2X1U includes 2 sets of interfaces to assist with perfect screen alignment and features 0.75" (19 mm) of micro-adjustment for both height and plumb.
What is the weight capacity for this 2 x 1 accessory?
The FCA2X1U has a weight capacity of 100 lbs (45.4 kg) for the accessory component.
What tools are required for assembly?
The unit assembles with 6 screws per column and requires an Allen wrench, which is included with the product.
