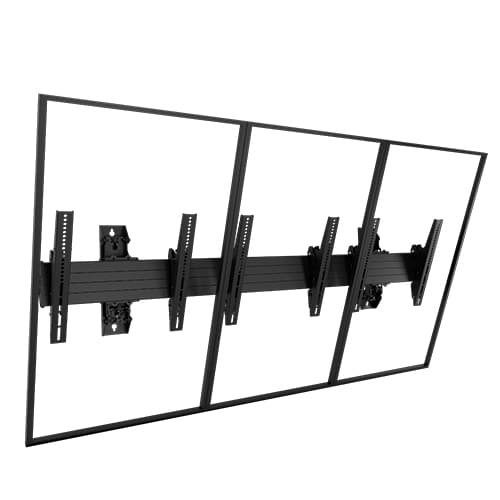

Fusion® Large 3X1 Menu Board Mount, Portrait
Portrait orientation 3x1 menu board mount for 40-55" displays, featuring Centris® tilt and lateral shift adjustability
The Chief LWM3X1UP is a Fusion® Large Wall Mounted Menu Board Solution designed specifically for portrait 3x1 array configurations. This mounting system uses a single horizontal extrusion to maintain screen alignment across all three displays, even when installing on irregular mounting surfaces. Integrated Centris® tilt allows for adjustments between +0° and -20°, while ControlZone™ micro-height adjustment facilitates precise leveling. This solution accommodates most 40-55" screens, though installers should verify compatibility for specific accessory needs. The system provides easy access behind the displays for essential servicing and maintenance. For high-traffic environments, optional padlock security can be added to the array. This TAA compliant and UL Listed mount is part of a broader line of accessories that function across Fusion® wall, ceiling, and freestanding series. Post-installation leveling roll is dependent upon wall spacing.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 8 in (20.3 cm) |
| Height | 32.5 in (82.6 cm) |
| Minimum Depth | 5.8 in (14.7 cm) |
| Overall Dimensions | 32.5" x 68.8" x 5.8" (826 x 1748 x 147 mm) |
| Shipping Weight | 84 lbs (38.1 kg) |
| Weight Capacity | 125 lbs (56.7 kg) |
| Width | 68.8 in (174.8 cm) |
| Adjustability | Height AdjustableLateral ShiftTilt |
All other specifications 11
| Application | Wall |
| Array Configuration | 3x1 |
| Color | Black |
| Number of Displays | 3 |
| Orientation | Portrait |
| Solution Type | Universal |
| Special Features | Multi-Display |
| TAA Compliant | Yes |
| Tilt | +0° / -20° |
| UPC | 841872166599 |
| Certifications | TAAUL Listed |
Resources
Questions about this part
Will the LWM3X1UP fit my 55 inch displays?
This mount accommodates most 40-55" screens; please verify compatibility for your specific model to determine if additional accessories are required.
What is the weight capacity for this 3x1 menu board mount?
The LWM3X1UP supports a total weight capacity of 125 lbs (56.7 kg) for the array.
How much tilt can I achieve with the Centris® system?
The integrated Centris® tilt mechanism allows for a range between +0° and -20°.
How do I align the screens if the wall is uneven?
The single horizontal extrusion and ControlZone™ micro-height adjustment allow for quick alignment on irregular mounting surfaces.
Which installation manual do I need for submittals?
You can refer to the LWM2X1UP LWM3X1UP Installation Manual (PDF) for specific mounting and assembly instructions.
