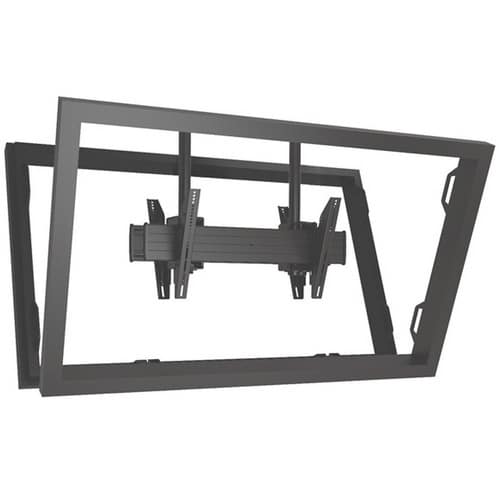

Fusion® Extra-Large Flat Panel Ceiling Mounts - XCB7000
Dual ceiling mount for extra-large flat panels, 300 lbs capacity, with Centris® fingertip tilt and height adjustability
The Chief XCB7000 is a dual-display ceiling mount designed for high-impact digital signage applications. This mount allows for landscape orientation of two extra-large flat panels, supporting a combined weight capacity of 300 lbs (136 kg). It is engineered to provide precise positioning through Centris® fingertip tilt technology, which allows for effortless adjustment of the viewing angle. To ensure a perfectly level installation, the mount includes a post-installation leveling roll. This system is built for serviceability, offering simple on/off screen engagement that can be secured with an optional padlock. The XCB7000 is compatible with both traditional 1.5" NPT and new CPA pinned ceiling plate and column systems. Please note that the ceiling plate and extension column are required for a complete installation and must be ordered separately. This TAA compliant and UL listed solution is ideal for professional environments requiring repeatable, secure, and accessible display positioning.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Shipping Dimensions | 36.5" x 12.5" x 10.5" (927.1 x 317.5 x 266.7 mm) |
| Shipping Weight | 51 lbs (23.1 kg) |
| Weight Capacity | 300 lbs (136 kg) |
| Adjustability | Height AdjustableTilt |
| Application | Ceiling |
| Color | Black |
| Interface Included | No |
| Number of Displays | 2 |
All other specifications 7
| Orientation | Landscape |
| Post-Installation Leveling Roll | Yes |
| Special Features | Multi-Display |
| TAA Compliant | Yes |
| UPC | 841872159768 |
| VESA Mounting Pattern | 200 x 100mm - 800 x 400mm |
| Certifications | TAAUL Listed |
Resources
Verified fitment
Questions about this part
Will the Chief XCB7000 work with my specific display?
The XCB7000 is verified against 13,691 display models from 368 manufacturers, including the Sony 55BZ40P, Samsung 400CX, and LG 100QNED85AU.
What additional components do I need to complete the installation?
This unit is a dual-display mounting component; you must also purchase a ceiling plate and an extension column separately.
Can I adjust the tilt of the displays once they are mounted?
Yes, the mount uses Centris® fingertip tilt technology for easy adjustment and features a post-installation leveling roll to ensure the displays are straight.
Is this mount suitable for secure installations?
Yes, the design allows for tool-free screen engagement and is compatible with optional padlock security to prevent unauthorized tampering.
What VESA patterns are supported by this mount?
This dual mount supports VESA mounting patterns ranging from 200 x 100mm to 800 x 400mm.
