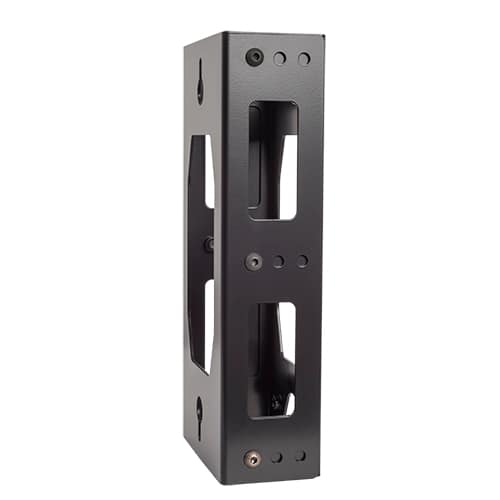

Fusion® Depth Accessory
Adjustable depth accessory for MTMS1U and STMS1U mounts, providing 3.25", 4", or 4.75" of spacing for overlapping displays
The Chief FCADA Fusion® Depth Accessory is designed to add necessary depth from the wall when using specific Fusion® mounting systems. This accessory is exclusively compatible with MTMS1U and STMS1U mounts. It allows installers to create overlapping display configurations when paired with the FRA Freestyle Rotation Adapter. This component provides three distinct depth adjustment options to accommodate specific installation requirements: 3.25", 4", or 4.75" (83, 102, or 121 mm). Built for multi-display setups, the unit has a 125 lbs (56.7 kg) weight capacity and is TAA compliant for government and regulated projects. The assembly measures 6.38" x 13.5" x 4.75" (162 x 343 x 121 mm). This accessory is a critical component for achieving precise layered or offset screen positioning in complex video wall or multi-display installations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 4.75 in (12.1 cm) |
| Height | 6.38 in (16.2 cm) |
| Overall Dimensions | 6.38" x 13.5" x 4.75" (162 x 343 x 121 mm) |
| Shipping Weight | 7 lbs (3.2 kg) |
| Weight Capacity | 125 lbs (56.7 kg) |
| Width | 13.5 in (34.3 cm) |
| Accessory Type | Multi-Display |
| Adjustments | 102 and 121 mm (4.02" and 4.76")Depth Adjustments: 3.25", 4" and 4.75" (83, 102 and 121 mm) |
| Color | Black |
| TAA Compliant | Yes |
| UPC | 841872169903 |
| Certifications | TAA |
Resources
Questions about this part
Will the FCADA work with any Fusion mount?
No, this depth accessory is only compatible with the MTMS1U and STMS1U mount models.
What is required to create overlapping display configurations?
To create overlapping layouts, you must use the FCADA in conjunction with the FRA Freestyle Rotation Adapter.
How many depth settings can I choose from with the FCADA?
The accessory offers three depth adjustment options: 3.25", 4", and 4.75".
Is the FCADA TAA compliant for government contracts?
Yes, this accessory is TAA compliant.
What is the weight capacity of this accessory?
The FCADA is rated for a weight capacity of 125 lbs (56.7 kg).
