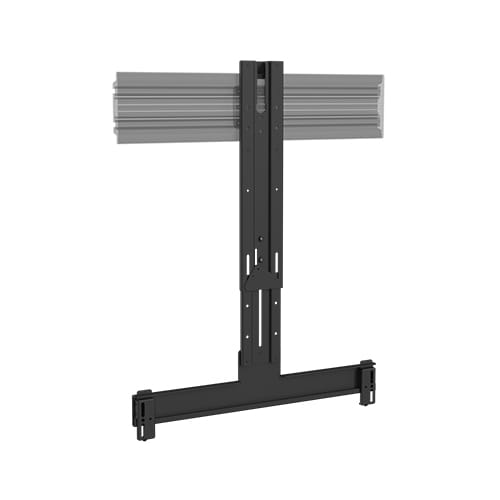

Fusion® Center Speaker Bracket, Large Displays
Universal center speaker bracket for 53-80" displays, 20 lbs capacity, adjustable width for most speaker brands
The Chief FCA832 is a center speaker bracket designed to integrate AV speakers into a Fusion® mounted display installation. This accessory is compatible with all Fusion® Series mounts, including both fixed and tilt wall mount options. Featuring a universal design, this bracket accommodates most speaker brands, providing a clean and integrated look. The width of the bracket can be adjusted from 5.5" to 21" (140–533 mm) to fit various speaker sizes. Designed with a low-profile 2" (5.1 cm) depth, it maintains a sleek aesthetic without adding unnecessary depth to your installation. This TAA compliant accessory is intended for use with displays typically ranging from 53" to 80" (1346–2032 mm). The bracket supports a weight capacity of up to 20 lbs (9.07 kg).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 2 in (5.1 cm) |
| Height | 29 in (73.7 cm) |
| Overall Dimensions | 29" x 22" x 2" (737 x 559 x 41 mm) |
| Shipping Weight | 8 lbs (3.6 kg) |
| Typical Screen Size | 53" - 80" (1346mm - 2032mm) |
| Weight Capacity | 20 lbs (9.07 kg) |
| Width | 22 in (55.9 cm) |
| Accessory Type | Speaker Accessories |
All other specifications 6
| Application | Center |
| Color | Black |
| Solution Type | Universal |
| TAA Compliant | Yes |
| UPC | 841872175676 |
| Certifications | TAA |
Resources
Questions about this part
Will the FCA832 fit my Fusion Series mount?
Yes, this speaker bracket is compatible with all Fusion® Series mounts, including both fixed and tilt wall mount versions.
What display sizes is this speaker bracket for?
The FCA832 is intended for use with displays in the 53" to 80" (1346–2032 mm) range.
Can I use this with different speaker brands?
Yes, the universal design of this bracket is engineered to accommodate most speaker brands.
What is the weight limit for this speaker accessory?
The bracket has a weight capacity of 20 lbs (9.07 kg) for the mounted speaker.
How much can I adjust the width of the bracket?
The speaker bracket width can be adjusted across a range of 5.5" to 21" (140–533 mm).
