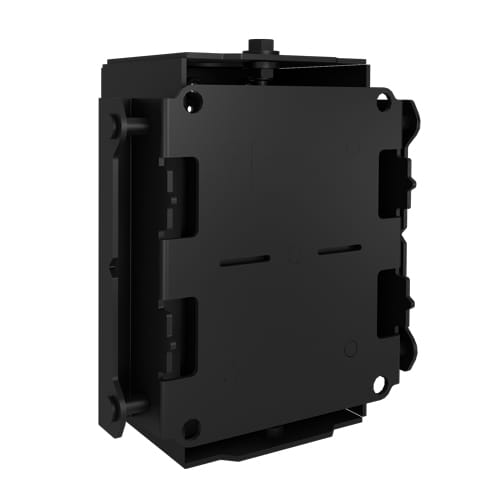

Fusion® Ceiling Box, Height-Adjust
Height-adjustable ceiling box for modular column systems, featuring micro-adjustability for precise display alignment
The Chief FMSCM is a specialized component within the Fusion® Modular Ceiling Attachment series. This ceiling box serves as the critical connection point in a ceiling-mounted installation, attaching the extrusion to the vertical columns. It is specifically engineered for modular, multi-display configurations where precision is required. The FMSCM features both height adjustability and micro-adjustability, allowing installers to fine-tune the position of the mounting structure once the columns are in place. This modularity ensures that the attachment can accommodate various ceiling-mounted configurations within the Fusion® system. As a component of a larger assembly, this box is designed to facilitate the installation of complex, multi-display arrays from the ceiling.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 10.25" x 10.25" x 8"(260.4 x 260.4 x 203.2 mm) |
| Shipping Weight | 9.08 lbs (4.1 kg) |
| Adjustability | Micro-Adjustable, Height Adjustable |
| Application | Ceiling |
| Color | Black |
| Special Features | Modular, Multi-Display |
| TAA Compliant | No |
| UPC | 841872168326 |
Resources
Questions about this part
What is the function of the FMSCM in a ceiling install?
The FMSCM acts as the attachment point that connects the extrusion to the columns in a modular ceiling-mounted system.
Does this box allow for fine-tuning the mount position?
Yes, the FMSCM provides both micro-adjustability and height adjustability to ensure precise alignment during installation.
Is this part compatible with multi-display setups?
Yes, the FMSCM is a modular component designed to support multi-display ceiling configurations.
What documentation is available for submittals?
Technical drawings are available in both PDF and DWG formats, and installation manuals are provided for the FMSCM and the broader Fusion Modular Systems.
