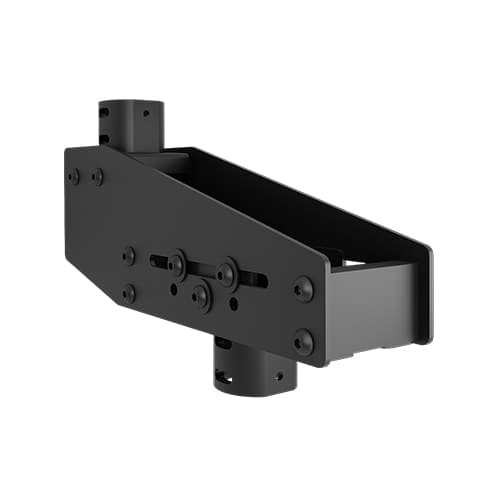

Fusion® Ceiling Array Offset
Ceiling array offset for distributing weight on ceiling-mounted video walls to ensure straight display alignment
The Chief FMSCAO is a specialized component within the Fusion® Modular Ceiling Attachment series designed to optimize video wall installation. This Ceiling Array Offset is used to distribute the weight of a ceiling-mounted video wall more effectively across the structure. By shifting the load, it helps ensure that displays hang straight and helps reduce mechanical stress on both the ceiling plates and the mounting columns. This modular attachment features height adjustability and micro-adjustability to assist with precise leveling during the installation process. This TAA compliant black offset is engineered specifically for multi-display configurations where load management is critical to the integrity of the array.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 18" x 12.25" x 6.75"(457.2 x 311.2 x 171.5 mm) |
| Shipping Weight | 15 lbs (6.8 kg) |
| Adjustability | Height AdjustableMicro-Adjustable |
| Application | Ceiling Array Offset |
| Color | Black |
| Special Features | Modular, Multi-Display |
| TAA Compliant | Yes |
| UPC | 841872168388 |
| Certifications | TAA |
Resources
Questions about this part
What is the purpose of the Chief FMSCAO offset?
The FMSCAO is used to distribute weight across a ceiling-mounted video wall, which helps prevent displays from hanging crooked and reduces stress on the ceiling plates and columns.
Does the FMSCAO allow for fine-tuning during installation?
Yes, this modular attachment includes both height adjustability and micro-adjustability to assist with the precise alignment of the array.
Is the FMSCAO TAA compliant?
Yes, this product is TAA compliant, making it suitable for projects with specific procurement requirements.
Can this part be used for multi-display setups?
The FMSCAO is a modular ceiling attachment specifically designed to support multi-display video wall configurations.
Where can I find the installation manual for this part?
The Fusion Modular Systems Installation Manual is available in the resources section for detailed installation procedures.
