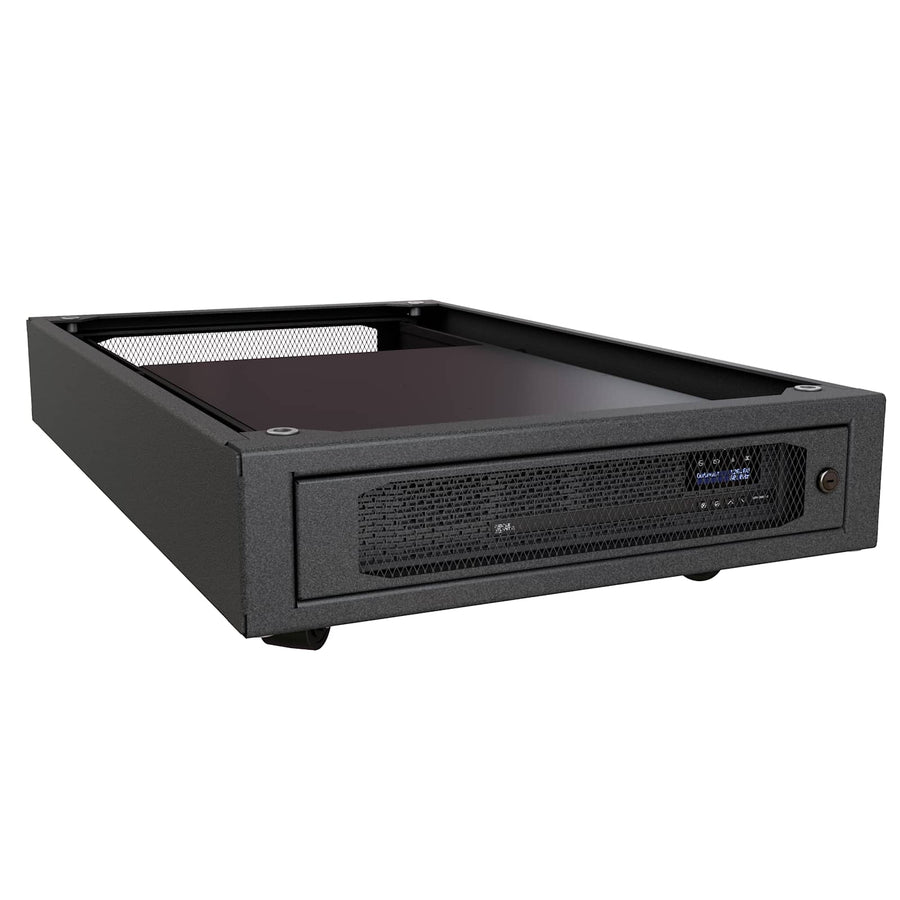

Forward UPS Caster Base For 38 Inch Deep BGR AV Rack, Includes NEXSYS UPX-2000R-2
Forward UPS Caster Base for 38 inch deep BGR racks, featuring a pre-installed 2000VA NEXSYS UPS and 1100 lbs weight capacity
The FWD-CBS-2KVA-BGR38 is a Forward UPS Caster Base designed to integrate power backup directly into your rack system while providing mobility. This 2RU base is engineered specifically for 38 inch (96.5 cm) deep BGR series racks and includes a pre-installed NEXSYS™ UPX-2000R-2 UPS. This Line Interactive UPS features EnergyStar certification and provides pure sine wave output with automatic voltage regulation (AVR) to protect sensitive equipment from power fluctuations. The unit offers 8 NEMA 5-20R receptacles organized into two outlet banks for bank control. For enhanced security and monitoring, the housing features front and rear perforated locking access panels and supports the addition of a RackLink™ Network Card (UPX-RLNK-CARD). The base has a 1100 lbs (499 kg) weight capacity and uses a 20 Amp NEMA 5-20P plug with a 6 ft (1.8 m) cord. Installation is simplified as the BGR rack bolts directly to the base using the included threaded Rivnut inserts.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| AC Voltage Input | 120 VAC |
| AC Voltage Output | 110-127 VAC |
| Amps | 20 Amp |
| Cord Length | 6 ft (1.8 m) |
| Depth | 38 in (96.5 cm) |
| Height | 7.42 in (18.9 cm) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Product Weight | 162 lbs (73.5 kg) |
All other specifications 21
| Rack Units | 2 RU |
| Shipping Weight | 162 lbs (73.5 kg) |
| VA Rating | 2000VA |
| Volts AC | 120 VAC |
| Volts DC | 48 VDC |
| Weight Capacity | 1100 lbs (499 kg) |
| Width | 23in |
| Base Series | BGR |
| Color | Black |
| Mounting Hardware Included | Yes |
| Network Enabled | with UPX-RLNK-CARDYes |
| Number of Circuits | 1 |
| Outlet Control Type | Bank |
| Outlet Count | 8 |
| Plug Type | NEMA 5-20P |
| Receptacle Type | NEMA 5-20R |
| Special Features | ForwardInstallation Time Savers |
| Surge Protection Type | MOV |
| TAA Compliant | No |
| Topology | Line Interactive |
| UPC | 656747384912 |
Resources
You'll need these with it
Questions about this part
What rack series is this UPS caster base compatible with?
This base is designed to bolt directly to BGR Series racks using threaded Rivnut inserts and is intended for 38 inch (96.5 cm) deep configurations.
Does this unit provide pure sine wave power for sensitive gear?
Yes, the included NEXSYS™ UPX-2000R-2 provides pure sine wave output and automatic voltage regulation (AVR) to protect sensitive electronic equipment.
How can I monitor the UPS remotely?
You can enable network management by adding a NEXSYS™ UPS RackLink™ Network Card (UPX-RLNK-CARD).
What is the total weight capacity of this base?
The base supports a total weight capacity of 1100 lbs (499 kg) when mounted with the BGR rack.
What electrical requirements are needed for installation?
The unit requires a 120 VAC, 20 Amp input via a NEMA 5-20P plug and features 8 NEMA 5-20R outlets.
