Flat-Panel HD Power Conditioner and Surge Protector Protects components and improves power quality
Slim power conditioner with 1,500-Joule surge protection and dual-stage EMI/RFI filtering, designed for low-profile mounting behind displays

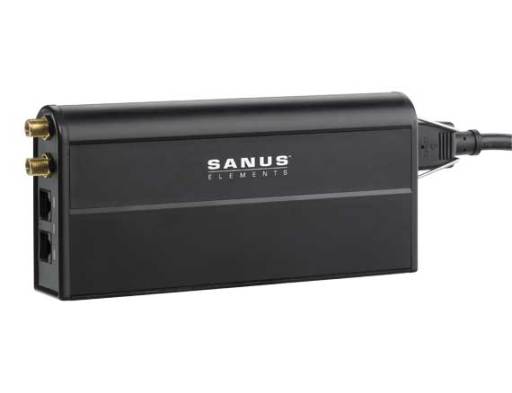

The Sanus ELM205-B1 is a specialized flat-panel HD power conditioner and surge protector designed to improve power quality for sensitive AV electronics. Featuring ClickFit® compatibility, this unit can be attached directly to Sanus LT25 and LL22 wall mounts, making it an ideal solution for clean installs. With a slim profile of only 1.31 in (3.3 cm) in depth, it fits easily behind flat-panel TVs and furniture. This unit provides 1,500-Joule surge suppression to shield components from electrical damage. To ensure superior signal quality, dual-stage EMI/RFI filters eliminate noise from 20-50 dB (100 kHz-1 MHz). The device also includes a combo ethernet/phone jack supporting up to 100Base-T connection speeds and features gold-plated coaxial input and output terminals.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 1.31 in (3.3 cm) |
| Height | 3.6 in (9.1 cm) |
| Product Weight | 2 lbs (0.9 kg) |
| Shipping Dimensions | 2" x 6.75" x 11.75" (50.8 x 171.5 x 298.5 mm) |
| Shipping Weight | 2.3 lbs (1 kg) |
| Width | 7.73 in (19.6 cm) |
| Accessory Type | Power |
| Application | Wall |
All other specifications 5
| Color | Black |
| Installation Items | Phillips Head Screwdriver |
| Joule Rating | 1500 |
| Universal Mounting | No |
| UPC | 793795500137 |
Resources
Questions about this part
Will the Sanus ELM205-B1 fit behind my wall-mounted TV?
Yes, this unit features a slim 1.31 in (3.3 cm) depth and is ClickFit® compatible for direct attachment to Sanus LT25 and LL22 wall mounts.
What tools are required for installing the ELM205-B1?
A Phillips Head Screwdriver is the only tool listed for this installation.
Does this unit provide surge protection for my electronics?
Yes, the ELM205-B1 provides 1,500-Joule surge suppression to protect your components from damaging power surges.
Can I run data through this power conditioner?
Yes, it includes a combo ethernet/phone jack that supports connection speeds up to 100Base-T.
How does this unit improve signal quality?
It utilizes dual-stage EMI/RFI filters to eliminate noise within the 20-50 dB (100 kHz-1 MHz) range.
