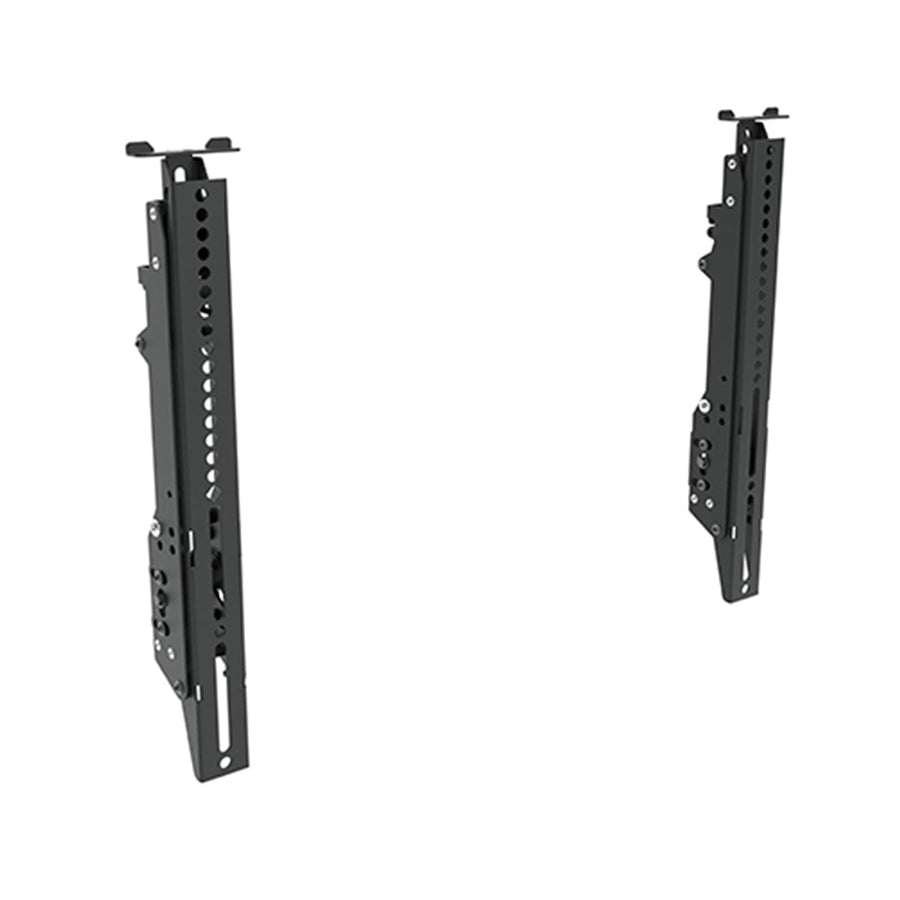

Fit™ Menu Board Wall Mount Interfaces
Menu board interface for 32"-65" displays, supports tilting from 0° to 15° with lateral shift and a 75 lbs capacity
The Chief RMB400 is a Fit™ Menu Board Wall Mount Interface designed to simplify the installation of multi-display digital signage. This interface hangs on 12 or 14 gauge 1-5/8" strut channel, which is required but not included with the RMB400. It is a universal solution supporting displays from 32" to 65" (813 mm to 1651 mm) with a weight capacity of 75 lbs (34 kg). The interface provides a wide, open back wall to facilitate easier device mounting and streamlined cable routing behind the displays. For a clean professional finish, installers can use optional storage boxes such as the PAC525 or PAC526. This interface allows for both landscape and portrait orientations and features a 0.56" (14 mm) adjustable depth leveling pad for plumb adjustment. The tilting mechanism can be locked at 0°, 5°, 10°, or 15° to ensure the perfect viewing angle for menu boards.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 2.17 in (5.5 cm) |
| Height | 17.45 in (44.3 cm) |
| Minimum Depth | 2.17 in (5.5 cm) |
| Overall Dimensions | 17.45” x 3” x 2.17” (443 x 76 x 55mm) |
| Plumb Adjustment | 0.56" (14mm) |
| Shipping Weight | 6.16 lbs (2.8 kg) |
| Typical Screen Size | 32" - 65" (813mm - 1651mm) |
| Weight Capacity | 75 lbs (34 kg) |
All other specifications 13
| Width | 3 in (7.6 cm) |
| Adjustability | FixedLateral ShiftTilt |
| Application | Wall |
| Color | Black |
| Number of Displays | 1 |
| Orientation | LandscapePortrait |
| Solution Type | Universal |
| Special Features | Multi-DisplayNo Visible Frame |
| TAA Compliant | No |
| Tilt | 0°, 5°, 10°, 15° |
| UPC | 841872172064 |
| VESA Mounting Pattern | Unlimited width - up to 400mm height |
| Certifications | UL Listed |
Resources
You'll need these with it
Verified fitment
Questions about this part
Will the RMB400 fit my specific display?
The RMB400 is verified against 12,077 display models from 291 manufacturers, including Sony 43BZ35P, Samsung 400BX, and LG 27HIZ10.
What do I need to purchase to install this interface?
This interface requires 12 or 14 gauge 1-5/8" strut channel for mounting, which is not included with the RMB400.
How much weight can the RMB400 support?
This interface supports a weight capacity of 75 lbs (34 kg) for a single display.
How can I manage cables behind the menu board?
The interface features a wide open back wall for routing, and you can use PAC525 or PAC526 storage boxes for a cleaner installation.
What is the difference between the RMB400 and its siblings?
The RMB400 is part of the Fit™ Menu Board series and is designed for quick, easy installation of multi-display tilting setups on strut channel.
