FCA624B
Dual monitor conversion kit for Chief Fusion stands and carts, supporting 37-60" displays with 125 lbs capacity per screen

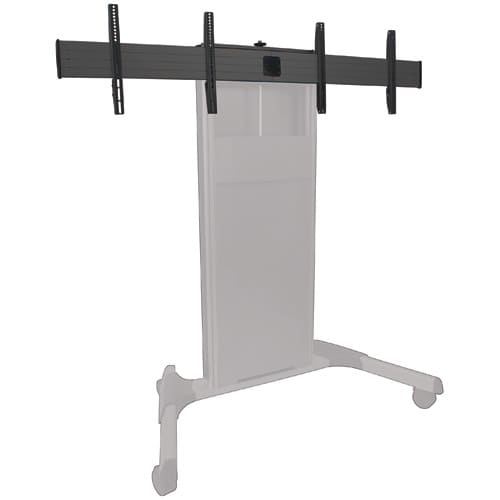

The Chief FCA624B is a Fusion® Dual Monitor Accessory designed to convert an existing Extra-Large Fusion® stand or a mobile AV Cart into a dual display configuration. This setup is ideal for creating functional video conferencing systems, especially when paired with a Chief FCA5XX camera shelf. This specific SKU is the black finish variant within the Fusion series. It is compatible with Chief XFA1U, XVAUB, and XPA1U carts and stands to facilitate a side-by-side dual monitor layout. Note that FCAX extenders are not approved for use with this particular accessory. This kit supports two displays with a typical screen size range of 37"-60" (940mm - 1524mm), though the exact fitment depends on your specific TV and the width of the mounting pattern. Each display can have a weight capacity of up to 125 lbs (56.7 kg).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 44.5" x 7.75" x 8.25" (113 x 19.7 x 21 cm) |
| Shipping Weight | 16.4 lbs (7.4 kg) |
| Typical Screen Size | 37"-60" (940mm - 1524mm depending on TV and mounting pattern width) |
| Weight Capacity | 125 lbs (56.7 kg) |
| Color | Black |
| Number of Displays | 2 |
| TAA Compliant | Yes |
| UPC | 841872169699 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Questions about this part
Will the FCA624B work with my Chief Fusion stand?
The FCA624B is compatible with Chief XFA1U, XVAUB, and XPA1U carts and stands for dual monitor conversion.
What is the weight limit for each monitor when using the FCA624B?
Each display has a weight capacity of 125 lbs (56.7 kg) when using this dual monitor accessory.
Can I use FCAX extenders with this dual monitor kit?
No, FCAX extenders are not approved for use with the FCA624B accessory.
Is this accessory suitable for video conferencing setups?
Yes, it is designed to create a functional video conferencing system when combined with Chief FCA5XX camera shelves.
What display sizes are compatible with this kit?
It is designed for typical screen sizes of 37"-60" (940mm - 1524mm), depending on the TV and the mounting pattern width.
